NETIO PowerCable Flat Power Distribution Unit: Without Power Metering

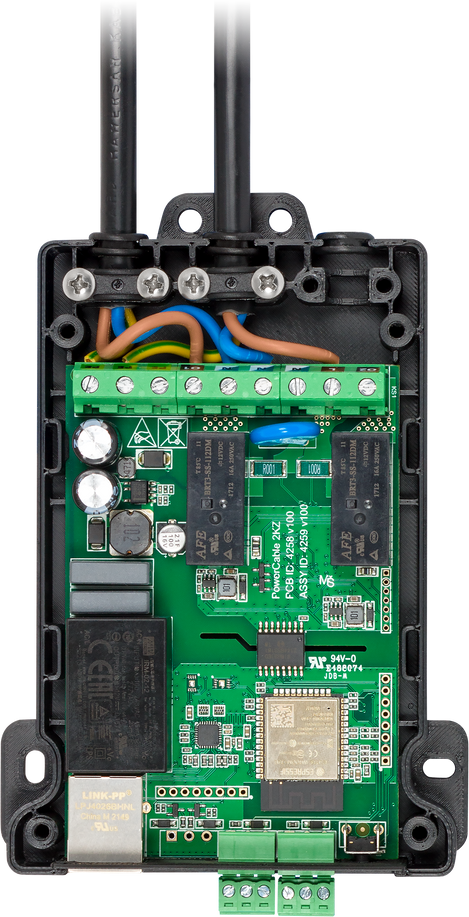

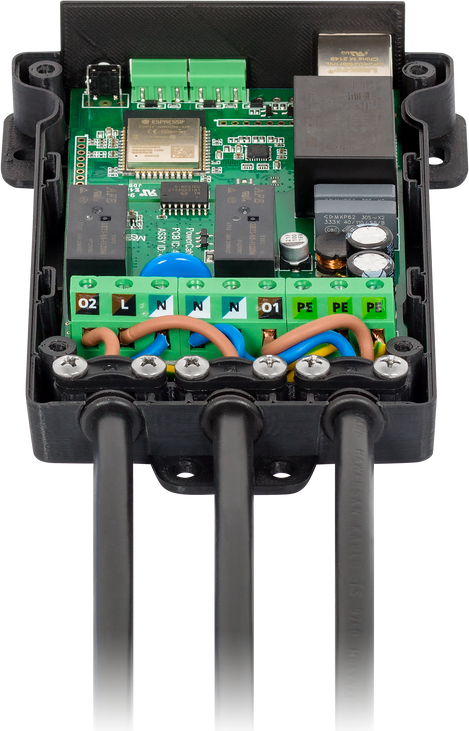

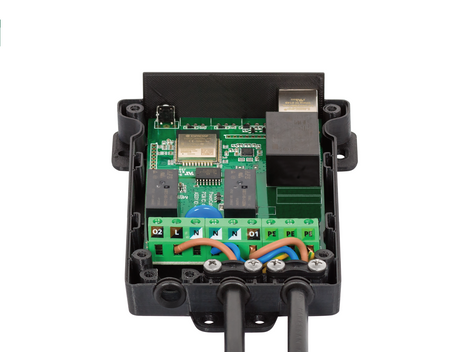

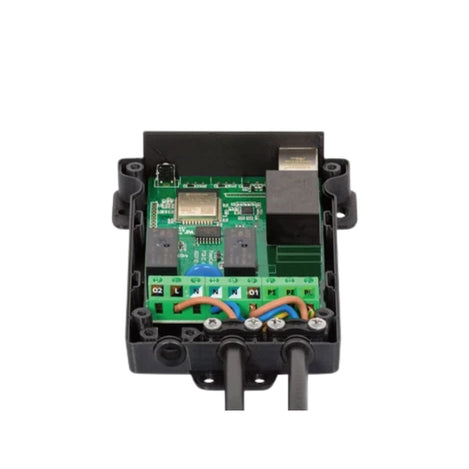

NETIO PowerCable we call “flat PDU” because it can be installed behind TV, under double ceiling or to similar limited space. Flat PDU is delivered without power cables, user have to install 2 or 3 power cables to the terminal block inside plastic housing with using screw driver.

Both power outputs measures power consumption (A, kWh, TPF, W, V, Hz) and switching On/Off both power output individually (ZCS). Each output can be switched manually over the web, the NETIO Cloud service, or with a Mobile App (Locally or via NETIO Cloud).

NETIO Cloud is a SSL-secured service for controlling the outputs from anywhere (Web or Open API).

Open API allows controlling the outputs over the network using various protocols (http XML/JSON, Modbus/TCP, MQTT, SNMP, Telnet and more... ).

AV drivers make it easy to connect NETIO sockets to professional Audio/Video systems such as Skaarhoj, Crestron, Control4 and more.

The Scheduler function switches outputs on and off at configured times. It works locally, even without Internet connection

Types of PowerPDU

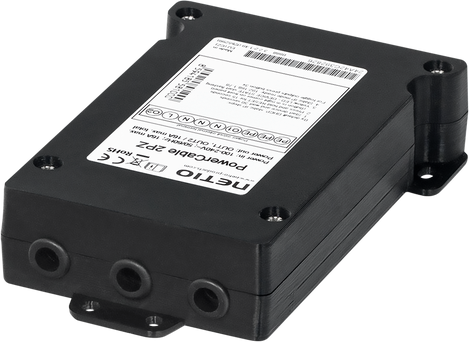

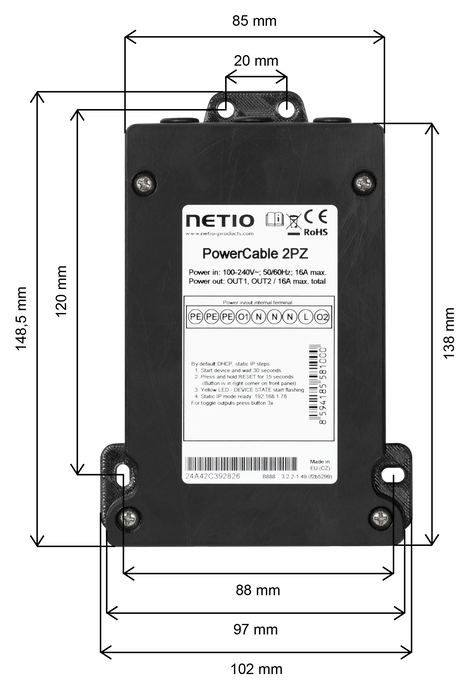

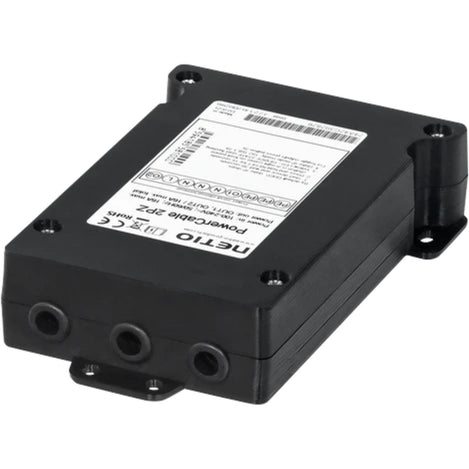

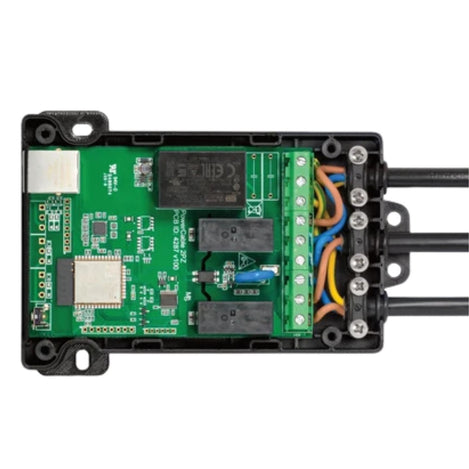

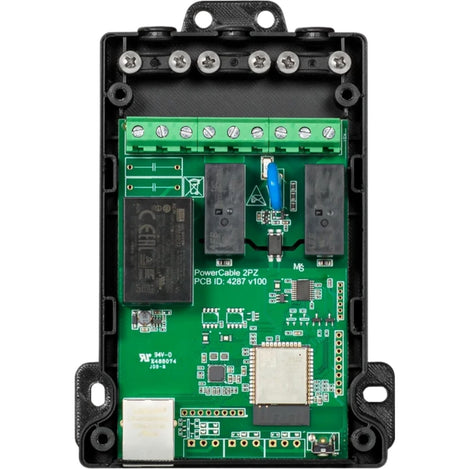

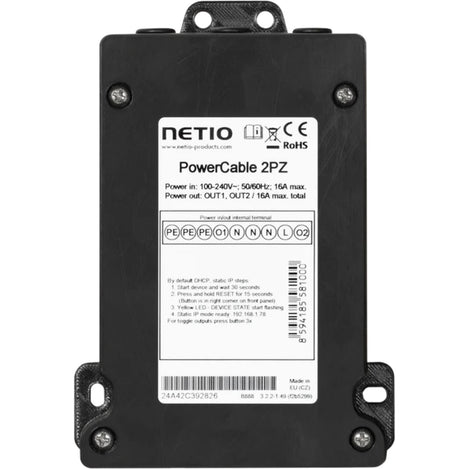

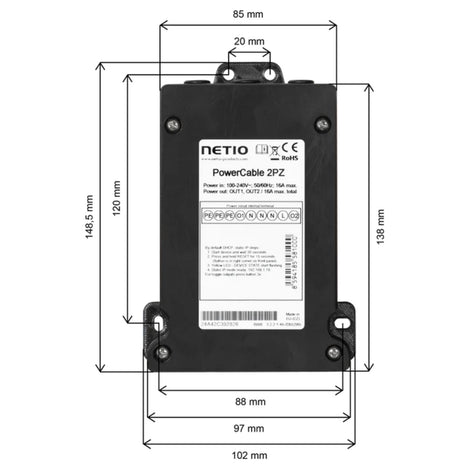

PowerCable 2PZ is flat PDU (Power Distribution Unit) with dual power output. It's LAN or WiFi connected PDU for remote power control (remote restarting) of TV, screens, multimedia playesrs or other AV or IT devices. There are 2 power outputs (110/230V max 16A) available on terminal blocks. The PowerCable 2PZ LAN/WiFi PDU is typically used for remote restarting.

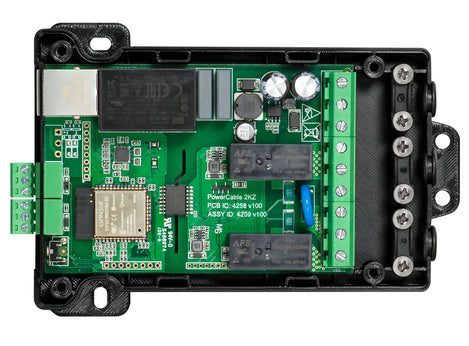

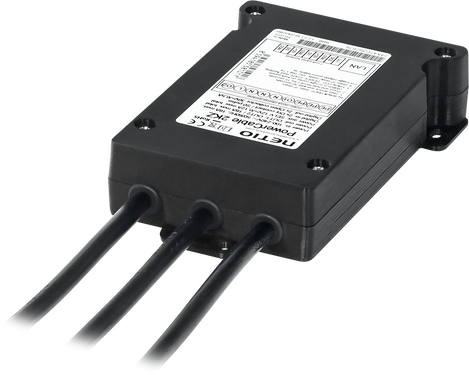

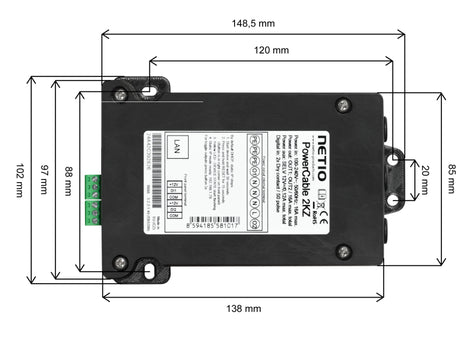

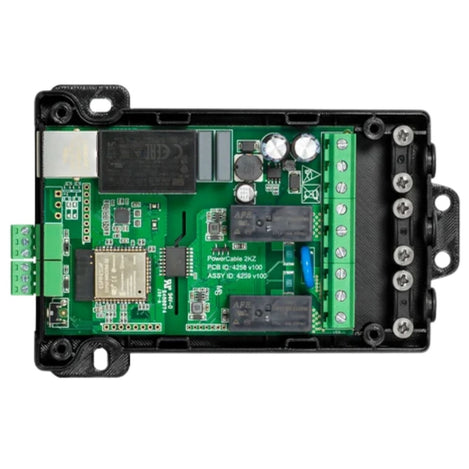

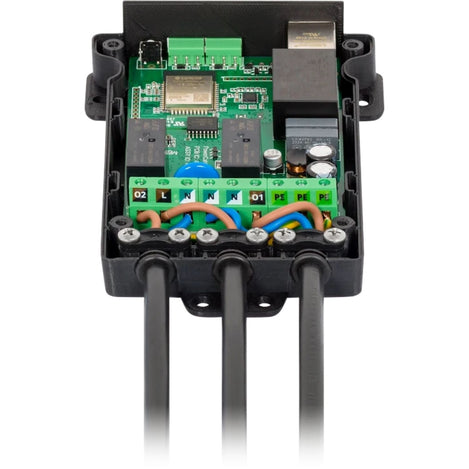

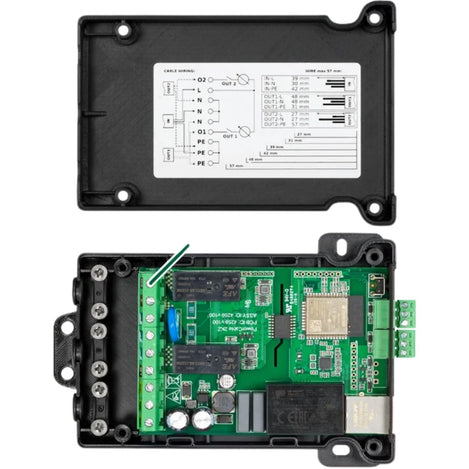

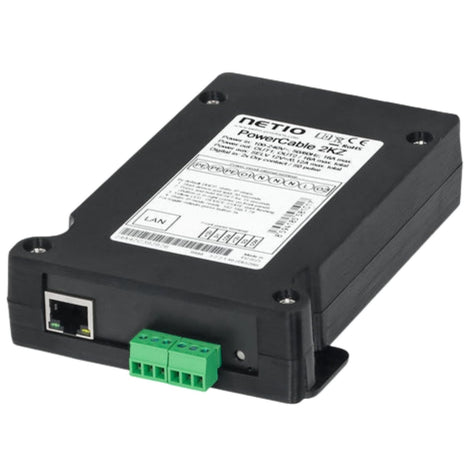

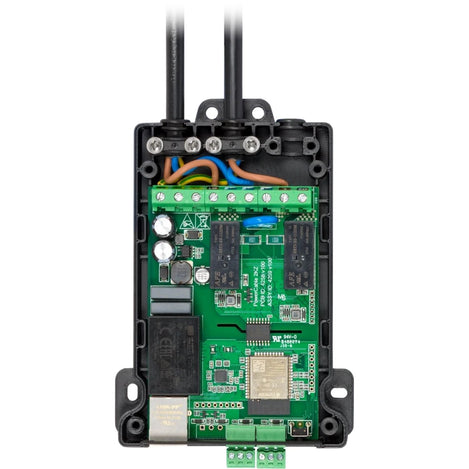

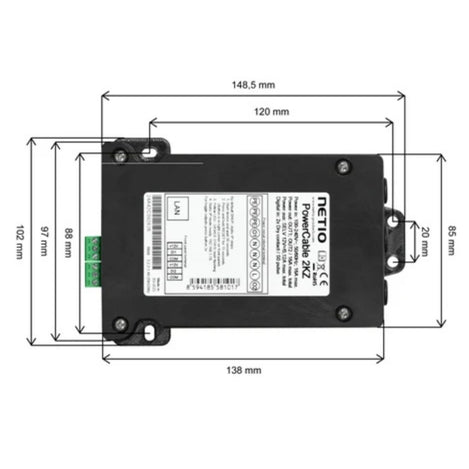

NETIO PowerCable 2KZ is a flat PDU (Power Distribution Unit) with LAN & WiFi connectivity. PowerCable 2KZ can switch & meter 2 power outputs, 2x DI (Digital Input) can read state of external detectors (door contact, relay outputs). The PowerCable 2KZ LAN/WiFi PDU is typically used for electricity metering and distribution.
