5dBi Fiber Glass LoRa Antenna

$55.95

Leave a review

SKU: GC-RAK-ANT-LORA-5DBI

MPN: 926016

Manufacturer: RAKwireless

Stock Status: In stock

Delivery: Ships same or next business day
Shipping is Free on orders over $75

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

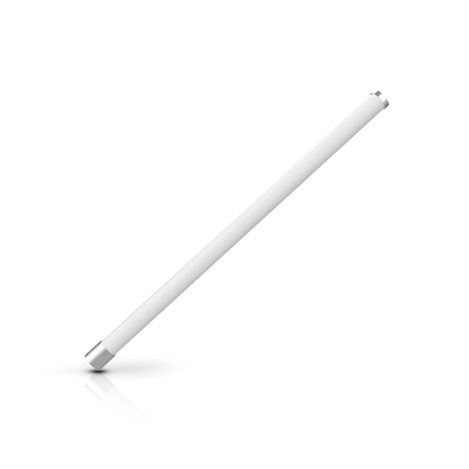

RAK’s 5 dBi fiberglass antenna is an outdoor, high-performance antenna, designed to withstand harsh outdoor conditions. It is specially designed for LoRa® in the 902-928MHz band – US915.

The antenna connector is one with the antenna body which increases the resistance of the antenna to external conditions.

With a length of only 480 mm, this antenna will be the best fit for your LPWAN Gateway or outdoor deployed RAK Hotspot Miner.

Note: This antenna is designed to be directly mounted on the enclosure of the Gateway. It is suitable for RAK7240 and RAK7249. The antenna is compatible with Outdoor Enclosure for RAK Hotspot Miner, Bobcat Outdoor Enclosure Kit, and Antenna Magnetic Base.

Features

Features of 5dBi Fiber Glass Antenna


  • Gain: 5.0dBi
  • VSWR: ≤1.47
  • Beamwidth: 360 degrees
  • Impedance: 50 Ohms
  • Polarization: Vertical
  • IP67 rated

Documents and Drivers

Documentation

5dBi Fiber Glass Antenna Datasheet View (PDF)

Specifications

CONNECTOR(S)

N-Type Male

DIMENSIONS

27.0 mm x 480.0 mm

FREQUENCY

Range: 902 ~ 928 MHz
Band: US915 MHz

HUMIDITY

Range: 5% ~ 95%

MATERIAL

Radome Body: Fiberglass

MPN

926016

TEMPERATURE RANGE

Operating: -40 °C to +75 °C (-40°F to 167°F)
Storage: -40 °C to +85 °C (-40°F to 185°F)
