DATAEAGLE 3343A Compact Kit - Wireless PROFIBUS

$4,700.00

Leave a review

SKU: GC-SCH-DE-CPT-3343A-KIT

MPN: 11148, 11149

Manufacturer: Schildknecht AG

Delivery: Ships within 7-14 business days
Qualifies for Free shipping
Antenna not included
Please contact sales for help selecting the correct antenna for your application.
Contact us for more information.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

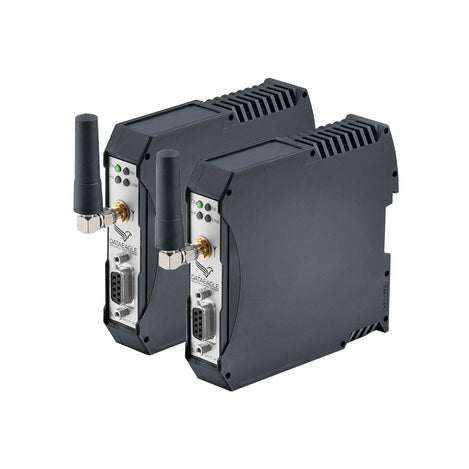

The DATAEAGLE 3343A Compact Kit is a long range wireless PROFIBUS network. It provides a reliable link running on 915 Mhz frequency and is capable of PROFIBUS DP transmission up to 1.5 Mbit/s.

The kit includes 1 master radio and 1 slave radio, pre-paired for plug and play implementation. An antenna is not included.  Contact sales to select the correct antenna for your application.

A total of 4 PROFIBUS slaves and 4 radio slaves can be connected. All devices with a PROFIBUS DP interface can be tied in with radio links. This interface allows the device to be implemented in existing networks and provides the convenience of wireless transfers.

The IP20 rated case and DIN rail mounting allow the device to be installed in a number of spaces with transmissions up to 3,000 meters.


Compare DATAEAGLE 3000 Series.

Common Applications Include:
  • Storage systems
  • Transport vehicles
  • Lifts/elevators
  • Machine construction
  • Automotive industry
  • Cranes/crane systems
  • Water/sewage and raw materials management
  • Replacement of trailing cable/cable chains
  • Replacement of optical coupler
  • Replacement of conductor lines
  • Replacement of slip rings



Features

  • 1.5 Mbit/s PROFIBUS DP transmission rate
  • Max. number of radio slaves: 4
  • Max. number of DP slaves: 4
  • Transmission range up to 3000 meters
  • 24V DC power supply
  • DIN rail mounting
  • IP20 rated case
  • 915 MHz Bluetooth, 100mW (EIRP)

Documents and Drivers

Documentation

DataEagle 3343A Compact User Manual

DataEagle 3000 Series Data Sheet

DataEagle 3000 Compact Series Quick Reference Guide

Specifications

Antennas

SMA Connection - 50 Ohm

Cable Length

5 m

Certifications

CE, FCC

Connector(s)

Terminal clamps and 9 pol. SUB D

Dimensions

114.5 mm x 22.5 mm x 99 mm

Enclosure

IP20 rated case

Frequency Band

915 MHz Bluetooth

Included in Box

  • 1 DataEagle Compact 3343A Master
  • 1 DataEagle Compact 3343A Slave
  • 2 Omnidirectional Antenna
  • 3 dB with magnetic base and connecting cable (5m)

Interface(s)

PROFIBUS

Mounting

DIN rail

MPN

11148, 11149

Power Consumption

100 mA

Power Supply

24 V DC

Product Weight

130 g

Range

3,000 m

Temperature Range

-20ºC to 60ºC (-4ºF to 140ºF)

Transmission Speed

1.5 MBit/s

Transmit Power

100 mW (EIRP)
