DATAEAGLE 3343A X-Treme Kit - Wireless PROFIBUS

$3,900.00

Leave a review

SKU: GC-SCH-DE-XTR-3343A-KIT

MPN: 11330, 11331

Manufacturer: Schildknecht AG

Delivery: Ships within 7-14 business days
Qualifies for Free shipping
Antenna not included.
Please contact sales for help selecting the correct antenna for your application.

Call for information or to order.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

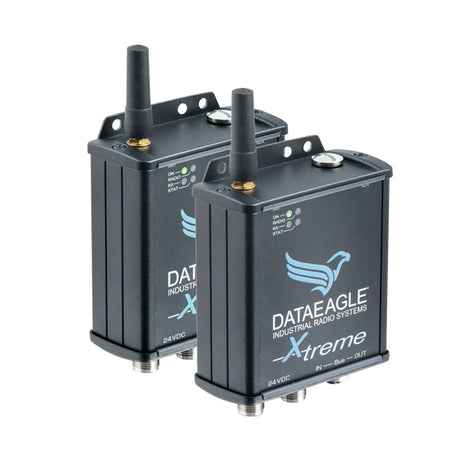

The X-Treme 3343A DATAEAGLE Kit uses patent filter technology to provide a reliable wireless link for PROFIBUS DP transfers. The network runs on 915 MHz frequency and is capable of transmissions at 1.5 Mbit/s.

The Kit includes 2 pre-paired radios (1 master and 1 slave) for easy plug & play implementation. An antenna is not included.  Contact sales to select the correct antenna for your application.

Additional devices with PROFIBUS DP interfaces can be connected via radio links. The network supports a total of 4 PROFIBUS slaves and 4 radio slaves.

The X-Treme kit is small and easily mounted in any environment with an IP65 rated case and secure surface mounting with 4 screw-holes. This kit is ideal for harsh environments and hard to reach areas and offers error free transmissions up to 3000 meters.

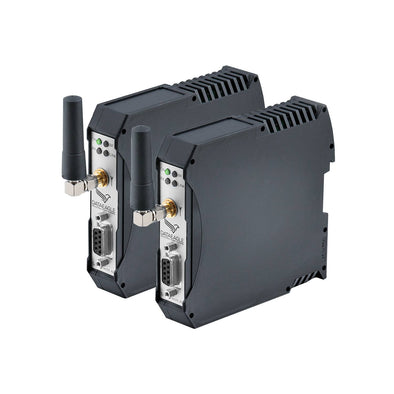

Compare DATAEAGLE 3000 Series.

Common Applications Include:
  • Replacement of conductor lines
  • Replacement of trailing cable/cable chains
  • Replacement of optical coupler
  • Water/sewage and raw materials management
  • Cranes/crane systems
  • Automotive industry
  • Machine construction
  • Storage systems
  • Transport vehicles
  • Lifts/elevators

Features

Features of the DataEagle 3343A X-Treme Kit


  • 915 MHz Bluetooth, 100mW (EIRP)
  • Max. number of radio slaves: 4
  • Max. number of DP slaves: 4
  • 1.5 Mbit/s PROFIBUS DP transmission rate
  • Transmission range up to 3,000 meters
  • 24V DC power supply
  • Mounting plate with 4-hole screw fastening
  • IP65 rated case

Documents and Drivers

Documentation

DataEagle 3343A X-TREME User Manual View (PDF)
DataEagle 3000 Series Data Sheet View (PDF)
DataEagle 3000 X-TREME Series Quick Reference Guide View (PDF)

Specifications

ANTENNAS

SMA Connection - 50 Ohm

CABLE LENGTH

5 m

CERTIFICATIONS

CE, FCC

CONNECTOR(S)

Terminal clamps and 9 pol. SUB D

DIMENSIONS

42 mm x 88 mm x 120 mm

ENCLOSURE

IP65 rated case

FREQUENCY BAND

915 MHz Bluetooth

INCLUDED IN BOX

1 DataEagle Compact 3343A Master
1 DataEagle Compact 3343A Slave
2 Omnidirectional Antenna
3 dB with magnetic base and connecting cable (5m)

INTERFACE(S)

PROFIBUS

MOUNTING

mounting plate with 4-hole screw fastening

MPN

11330, 11331

POWER CONSUMPTION

100 mA

PRODUCT POWER SUPPLY

24 V DC

PRODUCT WEIGHT

130 g

RANGE

3,000 m

TEMPERATURE RANGE

-20ºC to 60ºC (-4ºF to 140ºF)

TRANSMISSION SPEED

1.5 MBit/s

TRANSMIT POWER

100 mW (EIRP)
