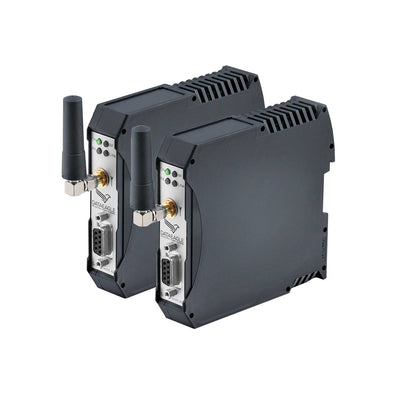

DATAEAGLE 3715A X-TREME Kit - Wireless PROFIBUS

$3,650.00

5.0 stars 5.0 (1) See customer reviews

SKU: GC-SCH-DE-XTR-3715A-KIT

MPN: 11320, 11321

Manufacturer: Schildknecht AG

Stock Status: In Stock

Delivery: Ships within
7 to 10 business days
Qualifies for Free shipping
Antenna not included.
Please contact sales for help selecting the correct antenna for your application.

Call for information or to order.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The X-TREME Kit for DATAEAGLE 3715A provides a reliable wireless network for PROFIBUS DP transfers and is capable of transmissions up to 1.5 Mbit/s.

This kit is a plug & play system that includes 1 master and 1 slave unit, pre-paired for easy implementation. An antenna is not included.  Contact sales to select the correct antenna for your application.

The system will support 1 radio slave and up to 4 PROFIBUS slaves. Additional devices with PROFIBUS DP interfaces can be connected via radio links for easy connection to existing networks.

The device is designed for harsh environments with a protective IP65 case and can be easily hung with the wall mounting. It is capable of transmissions up to 100 meters indoors and 300 meters outside making it ideal of all kinds of locations.

The patent filter technology reduces PLC-failure and increases productivity while operating on a 2.4 GHz Bluetooth, 100m W (EIRP) frequency.


Compare DATAEAGLE 3000 Series.

Common Applications Include:
  • Replacement of optical coupler
  • Replacement of slip rings
  • Replacement of conductor lines
  • Replacement of trailing cable/cable chains
  • Cranes/crane systems
  • Storage systems
  • Transport vehicles
  • Lifts/elevators
  • Machine construction
  • Automotive industry
  • Water/sewage and raw materials management



Features

Features of the DataEagle 3715A X-TREME Kit


  • Max. number of radio slaves: 1
  • Max. number of DP slaves: 4
  • 1.5 Mbit/s PROFIBUS DP transmission rate
  • IP65 rated case
  • Mounting plate with 4-hole screw fastening
  • Transmission range up to 100 meters (indoors)
  • Transmission range up to 300 meters (outdoors)
  • 24V DC power supply
  • 2.4 GHz Bluetooth, 100mW (EIRP)

Documents and Drivers

Documentation

DataEagle 3715A X-TREME User Manual View (PDF)
DataEagle 3000 Series Data Sheet View (PDF)
DataEagle 3000 X-TREME Series Quick Reference Guide View (PDF)

Specifications

ANTENNA

SMA Connection - 50 Ohm

CABLE LENGTH

5 m

CERTIFICATIONS

CE, FCC

CONNECTOR(S)

Terminal clamps and 9 pol. SUB D

DIMENSIONS

42 mm x 88 mm x 120 mm

ENCLOSURE

IP65 rated case

FREQUENCY BAND

2,4 GHz Bluetooth

INCLUDED IN BOX

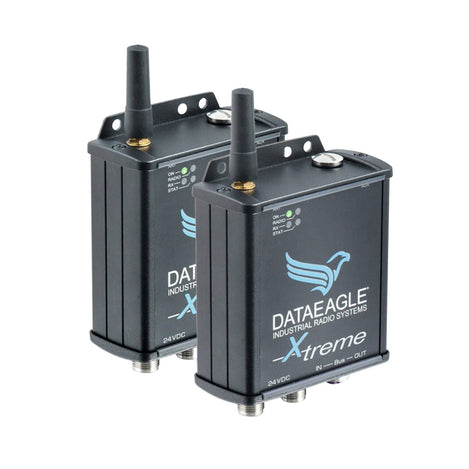

1 DataEagle X-Treme 3715A Master
1 DataEagle X-Treme 3715A Slave
2 Omnidirectional Antenna
3 dB with magnetic base and connecting cable (5m)

INTERFACES

PROFIBUS

MOUNTING

mounting plate with 4-hole screw fastening

MPN

11320, 11321

POWER CONSUMPTION

100 mA

PRODUCT POWER SUPPLY

24 V DC

PRODUCT WEIGHT

280 g

RANGE

Indoor: 100m
Outdoor: 300m

TEMPERATURE RANGE

-20ºC to 60ºC (-4ºF to 140ºF)

TRANSMISSION SPEED

1.5 Mbit/s

TRANSMIT POWER

100 mW (EIRP)
