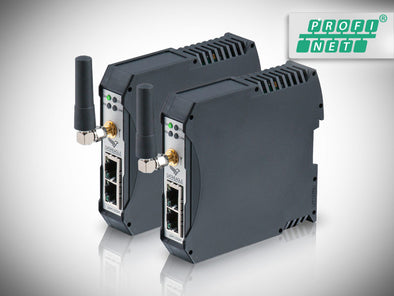

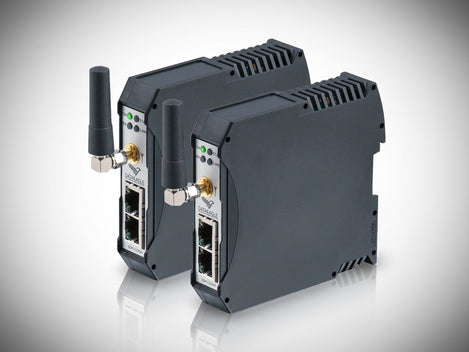

DATAEAGLE Compact 4730 Wireless Ethernet

$650.00

Leave a review

SKU: GC-SCH-DE-CPT-4730

MPN: 11280

Manufacturer: Schildknecht AG

Delivery: Ships within 4 weeks
Qualifies for Free shipping

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The DATAEAGLE 4730 has been specially developed for transparent data transmission from Ethernet e.g. Modbus TCP via Bluetooth. The new and robust Bluetooth 5 technology achieves a 5-fold faster data transmission and low latency ensuring a reliable wireless data transmission.

The Ethernet interface can be connected via radio. The ranges are up to 300 meters.  The housing for this compact DATAEAGLE 4730 is IP 20 for control cabinet mounting.



An antenna is not included.  Contact sales to select the correct antenna for your application.

Features

  • Ethernet interface for protocols such as Modbus TCP
  • Plug and Play – No device configuration required
  • Up to 300 meter range with standard settings
  • State-of-the-art security through 256 Bit AES encryption

Documents and Drivers

Documentation

DATAEAGLE Compact 4730 Product Guide

DATAEAGLE Compact 4000 Series Manual

DATAEAGLE Compact 4000 Series Quick Start Guide

Specifications

Antennas

Connection: SMA Connection - 50 Ohm

Connector(s)

RJ 45

Dimensions

99 mm x 22.5 mm x 114.5 mm (HxWxD)

Frequency

2.4 GHz Bluetooth 5

Mounting

DIN rail

MPN

11280

Power Consumption

150mA

Product Weight

130g

Temperature Range

-20°C to +60°C (-4°F to +140°F)

Transmit Power

8 dBm

Voltage

  • Voltage supply: 24 V DC
  • Connection Voltage supply: Terminal clamps
