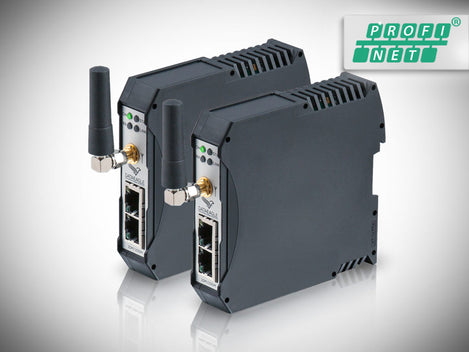

DATAEAGLE Compact Wireless PROFINET 4343

$1,866.00

Leave a review

SKU: GC-SCH-DE-CPT-4343

MPN: 11158

Manufacturer: Schildknecht AG

Delivery: Ships within 10 to 13 business days
Qualifies for Free shipping
Antenna not included.
Please contact sales for help selecting the correct antenna for your application.
Call for information or to order.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

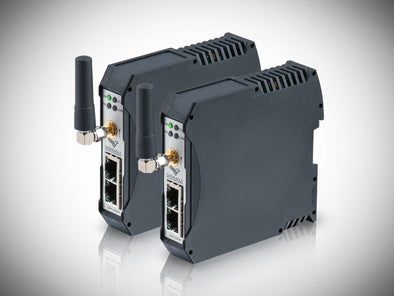

The DATAEAGLE Compact 4343A series was specially developed for the transparent transmission of PROFNET RT. By using 915 MHz, particularly high ranges of up to 3 km can be achieved. The patented pre-processing enables reliable wireless data transmission without radio interruptions and thus prevents system downtimes.

An antenna is not included.  Contact sales to select the correct antenna for your application.

Features

  • Optimized for PROFNET RT
  • Plug and Play – no device configuration necessary
  • Radio Frequency in America (915MHz)
  • 4 max radio slaves
  • 6 max PROFINET devices

Documents and Drivers

Documentation

DATAEAGLE Compact Wireless PROFINET 4343 Product Guide

DATAEAGLE Compact 4000 Series Manual

DATAEAGLE Compact 4000 Series Quick Start Guide

Installation of DATAEAGLE Condition Monitoring System
Condition monitoring for motors & machines

Specifications

Antennas

Connection: SMA Connection - 50 Ohm

Dimensions

99 mm x 22.5 mm x 114.5 mm (3.89in x .88in x 4.5in)

Enclosure

IP20

Frequency

915 MHz

Mounting

DIN rail

MPN

11158

Power Consumption

250 mA

Range

  • Indoor: 300m
  • Outdoor: 1000 -3000 m

Temperature Range

-20°C to +60°C (-4°F to +140°F)

Transmission Speed

max 100 Mbit/s

Transmit Power

500 mW (EIRP)

Voltage

  • Voltage supply: 24 V DC
  • Connection Voltage supply: Terminal clamps
