DATAEAGLE Condition Monitoring System Local Dashboard
DATAEAGLE Condition Monitoring System Local Dashboard
Product Images

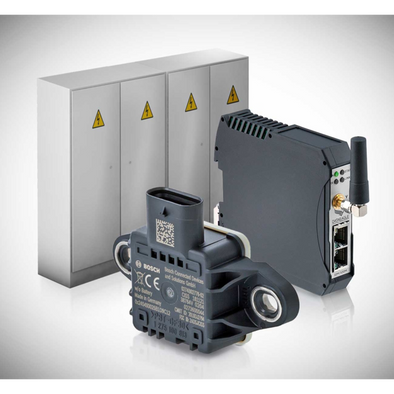

DATAEAGLE Condition Monitoring System Local Dashboard
$2,321.00
SKU: GC-SCH-DE-CMS-LD
MPN: 11739_LD
Manufacturer: Schildknecht AG
Delivery: Ships within 3 - 4 weeks
Qualifies for Free shipping to the US
We Have You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
The DATAEAGLE CMS Local Dashboard is ideally suited for condition monitoring of e.g. engines and machines in industrial environments. The aim is to implement condition monitoring simply, quickly and locally, in the sense of Industry 4.0. Therefore, the sensor data is available in a ready-made Node-REDTM-Dashboard via the Ethernet port at the gateway.

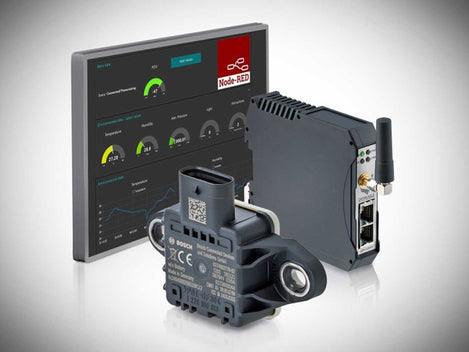

The ready-to-use dashboard is based on Node-RED technology and is pre-built for the sensors; no server is required. The dashboard is hosted locally on a DATAEAGLE Pi (with an integrated Raspberry Pi Compute module) which is paired with the IoT-Gateway. The dashboard is served up as a webpage that can be displayed on any screen with access to the IP address of the DATAEAGLE Pi on the local network.
Using NodeRED, the dashboard is customizable, and alerting and implementation of data analytics is possible. With the local dashboard, there are no monthly costs. However, it is also possible to add a locally hosted or 3rd party cloud connections as well.
The robust CISS sensor can be mounted directly on the motor, pump or machine. Data transmits via Bluetooth Low Energy to the central IoT Gateway DATAEAGLE 2730, where it can receive values from up to 8 CISS sensors simultaneously. The values are pre-processed and can be accessed via an Ethernet interface.
The dashboard is based on the IoT software Node-REDTM and offers the possibility to process the sensor data individually and/or to integrate them into a separate database.
The DATAEAGLE Fieldbus Condition Monitoring System uses a small industrial Bluetooth mulit-sensor (accelerometer, gyroscope, temperature, humidity, pressure, light, acoustic, magnetometer – all in one), combined with an IoT-Gateway (the DATAEAGLE 2730) to provide sensor data to a local Node-RED dashboard. The sensors can be connected to pumps, motors and other mission critical equipment to provide monitoring and predictive maintenance. Up to eight (8) sensors can be used with a single gateway.
Features
- Simple set-up – sold as a complete package
- Ready-to-use local dashboard, incorporating all 8 sensor types
- Wide operating temperature range (-20 to +60 C)
- No monthly costs
- Din Rail Mount
- FCC Certified
Documents and Drivers
Documentation
DATAEAGLE Condition Monitoring System Datasheet
DATAEAGLE Condition Monitoring System Flyer
Specifications
Certifications
CE, FCC, IC
Connector(s)
Connection voltage supply:
- Fieldbus: Terminal clamps
- Multisensor: CISS (4way 1.2 SealStar FA Connector 805-122-541) to USB 2.0
Dimensions
- Fieldbus: 22.5 mm x 99 mm x 114.5 mm (WxHxD)
- Multisensor: 80 mm x 53.2mm x 23.3mm (WxHxD)
Humidity
10 – 90 % relative humidity (non-condensing)
Interface(s)
- Fieldbus: RJ 45
- Dashboard: Raspberry Pi Compute Module
Mounting
- Fieldbus: DIN rail mounting
- Multisensor: Direct mounting (with screws)
MPN
11739_LD
Operating System
Raspberry Pi OS
Power
- Power Consumption: 200 mA
- Transmitting Power: 8 dBm (Fieldbus), 3 dBm (Multisensor)
Pressure
300 – 1100 hPa
Product Weight
- Fieldbus: 130 g
- Multisensor: 34 g (55 g incl. Fastening set)
Range
Radio range: Up to 70m (Fieldbus), Up to 50 m (Multisensor)
Security/Protection
- Fieldbus: IP20
- Multisensor: IP54
Software
Node-RED-Dashboard
Temperature Range
- Fieldbus: -20°C to +60°C (-4°F to +140°F)
- Multisensor: -20°C to +80°C (-4°F to +176°F)
Voltage
- Fieldbus: 24 V DC
- Multisensor: 5 V
