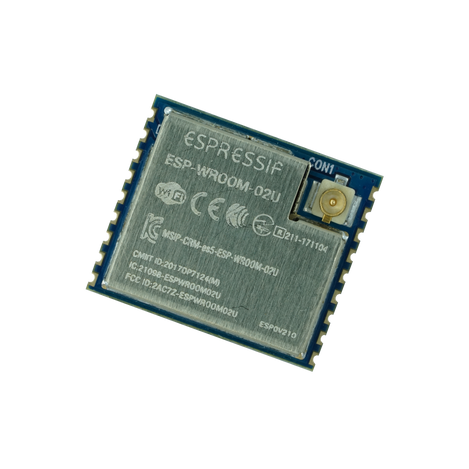

The ESP-WROOM-02U is a compact, low-power, Wi-Fi module incorporating the ESP8266EX chip. The device supports an external U.FL (IPEX) connector for optimized RF performance. It’s low power consumption and compact size (18 x 14.3 x 3.2 mm) makes the device essential for Internet of Things (IoT) applications.
Common applications include:
- Internet of Things (IoT) solutions
- Industrial wireless control
- Wearable electronics
- Home automation
- Sensor networks
- Wi-Fi location-aware devices
The ESP8266EX chip provides a Tensilica L106 32-bit RISC processor with a maximum clock speed of 160 MHz. The chip supports SPI flash memory with options of 2MB or 4MB and works with the following SPI modes:
- Standard SPI
- DIO (Dual I/O)
- DOUT (Dual Output)
- QIO (Quad I/O)
- QOUT (Quad Output)
The WROOM-02U is customizable with 80% of the processing power available for development through the Real-Time Operating System (RTOS) and Wi-Fi stacks. GitHub provides additional information and code examples.
Order Summary
SKU |
Flash Memory |
Operating Temperature |
Manufacturer Part # |
|---|---|---|---|
| GC-ESP-WROOM-02U | 2 MB | -40ºC to 85ºC (-40ºF to 185ºF) | ESP-WROOM-02U |
| GC-ESP-WROOM-02U-4MB | 4 MB | -40ºC to 85ºC (-40ºF to 185ºF) | ESP-WROOM-02U (4 MB) |
| GC-ESP-WROOM-02U-HT | 2 MB | -40ºC to 105ºC (-40ºF to 221ºF) | ESP-WROOM-02U (M1102H1600US3Q0) |
Features of the ESP-WROOM-02U
- Wi-Fi 802.11 b/g/n
- Integrates with the ESP8266EX chip
- External U.FL (IPEX) connector
- Optimized RF performance
- 2 MB or 4 MB SPI flash memory
- Tensilica L106 32-bit RISC processor
- 26-MHz crystal oscillator
- Secure (encrypted) over the air (OTA) upgrades
- SRRC, FCC, CE (RED), IC, NCC, KCC, TELEC (MIC) certified
- Programmable RAM/ROM interface (iBus)
- Programmable Data RAM interface (dBus)
- AHB interface accesses the register
| ANTENNA | External U.FL (IPEX) connector |
| CERTIFICATIONS | RF: SRRC, FCC, CE (RED), IC, NCC, KCC, TELEC (MIC) Green: RoHS, REACH |
| DIMENSIONS | 18 mm x 14.3 mm x 3.2 mm |
| FIRMWARE | Upgrade: UART Download / OTA (via network) Download and write firmware via host |
| FREQUENCY BAND | Wi-Fi frequency: 2.4 GHz ~ 2.5 GHz (2400M ~ 2483.5M) |
| INTERFACES | UART/HSPI/I2C/I2S/IR Remote Control GPIO/PWM |
| MEMORY | 2 MB or 4 MB |
| MPN | ESP-WROOM-02U |
| PINS | 18 pins |
| POWER | Average Current: 80 mA Minimum Current: 500 mA |
| PROTOCOLS | Wi-Fi: 802.11 b/g/n (802.11n up to 150 Mbps) Network: IPv4, TCP/UDP/HTTP/FTP |
| SECURITY/PROTECTION | Security: WPA/WPA2 Encryption: WEP/TKIP/AES |
| SOFTWARE | Supports Cloud Server Development SDK for custom firmware development |
| TEMPERATURE RANGE | Operating: -40ºC to 85ºC (-40ºF to 185ºF) Storage: -40ºC to 85ºC (-40ºF to 185ºF) High Temp option: -40ºC to 105ºC (-40ºF to 221ºF) |
| TIMERS | On board clock: 26 MHz crystal |
| VOLTAGE | Operating: 2.7V ~ 3.6V |
