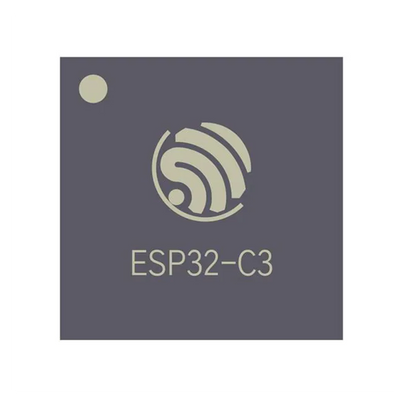

ESP32-C3FH4 - Single Core Wi-Fi & Bluetooth 5 (LE) Microcontroller Chip

$1.14

Leave a review

SKU: GC-ESP32-C3FH4

MPN: ESP32-C3FH4

Manufacturer: Espressif Systems

Delivery: Ships within 7-14 business days
Shipping is Free on orders over $75

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

The ESP32-C3 SOC is the next generation replacement for the ESP8266EX SOC, a simple to design with, very cost effective solution. The ESP32-C3 adds advanced security and BLE 5.0 with long range support, while maintaining the low cost of the original ESP8266. Based on a single RISC-V core, performance has improved and cost remains under $1.00.

The ESP32-C3 family of parts with the RISC-V core was developed to be the next generation replacement for the ESP8266E and modules based
on this chip. Using a RISC-V core in the ESP32-C3 allows for improved performance while providing the ability to match the low cost of the
original ESP8266E. The ESP32-C3 chip has added updated security features, USB 2.0, power management and BLE5.0. Even with these
enhanced features, the C3 family of modules provides the lowest cost fully certified solution of all the Espressif modules.

Trouble shooting is improved with on-chip debug module (DM), compliant with RISC-V debug specification v0.13. Also, an external debugger is
supported using the industry-standard JTAG/USB port. The debugger provides direct system bus access (SBA) to memory and peripherals along
with up to 8 trigger breakpoints/watchpoints.

Features

Features of ESP32-C3FH4


  • SMD IC ESP32-C3
  • RISC-V single-core MCU
  • 4 MB flash inside, 384 KB ROM, 400 KB SRAM (16 KB for cache), 8 KB SRAM in RTC
  • 2.4G Wi-Fi & BLE 5.0 combo
  • QFN 32-pin
  • 5*5 mm
  • –40 ∼ 105˚C

Documents and Drivers

Documentation

ESP-C3 Datasheet View (PDF)

Specifications

CHIP PACKAGE

QFN32 (5*5)

CONTROLLER(S)

LED PWM, Full Speed USB Serial/JTAG, General DMA, TWAI®

INTERFACE(S)

interfaces

MEMORY

4MB Flash, 384 KB of ROM, 400 KB of on­chip SRAM, RTC memory: 8 KB of SRAM, 4 Kbit of eFuse

MPN

ESP32-C3FH4

RELATED PRODUCTS HEADING

Related chips and modules

TEMPERATURE RANGE

–40°C ∼ 105°C

TIMERS

2 × 54-bit general-purpose timer

WATCHDOG TIMER

3 × watchdog timers
