ESP32-D0WD - Wi-Fi & Bluetooth Combo Chip

$2.75

Leave a review

SKU: GC-ESP32-D0WD

MPN: ESP32-D0WD

Manufacturer: Espressif Systems

Stock Status: In Stock

Delivery: Ships same or next business day
Shipping is Free on orders over $75
Call to order: (630) 245-1445

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Minimum Quantity Required: 10 chips.

--------------------------------------------------------------
Authorized North America Distributor Stamp

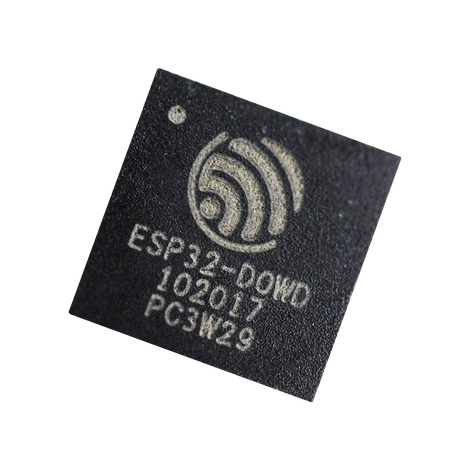

The ESP32-D0WD features dual microprocessors, one for normal operation, and one for low-power sleep mode, in an ultra-compact 5 x 5 mm package. Suitable for battery powered applications, this combo chip has both Bluetooth (BT 4.2 and BLE) and Wi-Fi radios.

This combination is great for gateways, as well as for using BLE for direct access from smartphones/tablets and using Wi-Fi for connected applications.

Key Features

  • Small 5 x 5 mm package
  • Ultra-low power consumption
  • Bluetooth
  • 2.4 GHz Wi-Fi
  • Fine resolution clock gating
  • Dynamic power scaling
  • Multiple power modes
  • Built-In antenna switches

These features allow the support of leading industry smart home standards including Apple HomeKit.



Compare ESP32 chip series.

Features

ESP21-D0WD Features
  • Built-In Antenna Switches
  • Power Amplifier
  • RF Balun
  • Low Noise Receive Amplifier
  • Power Management Modules
  • Ultra-Low Power Consumption
  • Compliant with Bluetooth v4.2 BR/EDR and BLE specification
  • Bluetooth Class 1, Class 2, and Class 3 transmitter without external power amplifier
  • BT 4.2 controller and host stack
  • 802.11 b/g/n/e/i Wi-Fi
  • Wi-Fi Antenna diversity and selection
  • Fine Resolution Clock Gating
  • Dynamic Power Scaling

Peripherals and Sensors
  • 12-bit SAR ADC up to 18 channels
  • 2 x 8-bit D/A convertors
  • 10 x touch sensors
  • On-chip temperature sensor
  • On-chip Hall sensor
  • 4 x SPI, 2 x I2S, 2 x I2C, 3 x UART
  • CAN 2.0
  • IR (TX/RX)
  • Motor PWM
  • LED PWM


  • Supports the industry leading smart home standards including Apple HomeKit

Documents and Drivers

Documentation

ESP32 Datasheet View (PDF)
ESP32 Technical Reference Manual View (PDF)
ESP32 Hardware Design Guidelines View (PDF)
ESP32 Audio Design Guidelines View (PDF)
ESP32 Bluetooth Networking User Guide View (PDF)
ESP32 Bluetooth Architecture View (PDF)
Espressif HomeKit SDK Product Brief View (PDF)
BT/BLE Coexistence Demo View (PDF)
ESP32 Instruction Set and Examples View (PDF)
ESP32 FAQs View (PDF)
ESP32 Flash Encryption Guide  View (Espressif Website)
ESP32 Phy Init Bin Parameter Configuration Guide View (PDF)

Downloads
ESP32 RF Performance Test Demonstration Download (ZIP)
ESP32 Certification and Test Download (ZIP)
ESP32 AT Download (ZIP)
Flash Hardware Tools Download (ZIP)

Specifications

CHIP PACKAGE

QFN 5x5

CONTROLLERS

  • Infrared Remote Controller
  • DMA controllers
  • Bluetooth Link Controller
  • BT 4.2 Controller
  • SD/SDIO/MMC HOst Controller
  • PID Controller
  • Efuse Controller
  • Media Access Controller (MAC)
  • Pulse Width Modulation (PWM) controller

CORE

Dual Core

CPU

Xtensa® 32-bit LX6 microprocessors

DIMENSIONS

5.0 x 5.0 x 0.85 mm

INTERFACES

  • 4 x SPI, 2 x I2S, 2 x I2C, 3 x UART, CAN 2.0, IR (TX/RX)
  • Motor PWM, LED PWM (up to 16 channels)
  • 12-bit SAR ADC up to 18 channels, 2 x 8-bit D/A converters
  • 10 x touch sensors

MEMORY

  • 448 KByte ROM
  • 520 KByte SRAM
  • 8 KB SRAM in RTC
  • 1 kbit of eFuse

MPN

ESP32-D0WD

PINS

48 Pin QFN package

POWER

Power supply: 2.2 V to 3.6 V

PROTOCOLS

  • Wi-Fi: 802.11 b/g/n/d/e/i/k/r (802.11n up to 150 Mbps)
  • Wi-Fi: A-MPDU and A-MSDU aggregation and 0.4 guard interval support
  • Bluetooth: Bluetooth v4.2 BR/EDR and BLE specification
  • Network: IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT

RELATED PRODUCTS HEADING

Related chips and modules

TEMPERATURE RANGE

  • Operating: -40°C to +125°C (-40º to 257ºF)
  • Storage: -40ºC to 150ºC (-40º to 302ºF)

TIMERS

4 General-Purpose Timers

WATCHDOG TIMER

3 Watchdog Timers
