Home / ESP32 LyraT Mini Kit

This product is discontinued and no longer available.

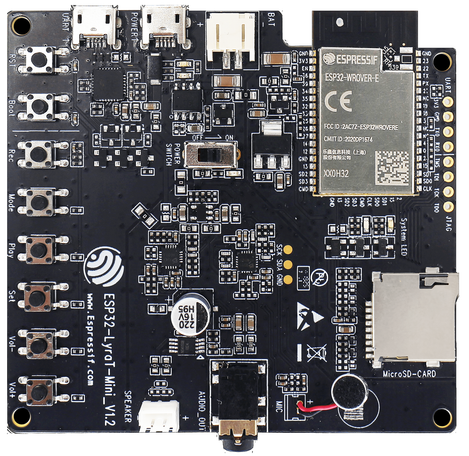

ESP32 LyraT Mini Kit

Leave a review

SKU: GC-ESP-LYRAT-MINI-KIT

MPN: ESP32-LyraT-Mini

Manufacturer: Espressif Systems

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

ESP32-LyraT-Mini is a lightweight audio development board based on ESP32-WROVER-B, which implements AEC, AGC, NS WWE (wake word engine) and other audio signal processing technologies.

Features

Features of the ESP32 LyraT Mini Kit


  • ESP32-WROVER-B module
  • Audio codec chip
  • ADC chip
  • Microphone on board
  • Audio output
  • 1 x 3-watt speaker output
  • MicroSD card slot (1 line)
  • Eight keys
  • Two system LEDs
  • JTAG and UART test points
  • Integrated USB-UART Bridge Chip
  • Li-ion Battery-Charge Management

Documents and Drivers

Documentation
ESP32 Lyra Mini Kit Getting Started Guide View (HTML)
ESP32 Lyra Mini Kit Getting Design Resource View (PDF)
ESP32 Lyra Mini Kit Getting Hardware Reference View (HTML)

Specifications

FREQUENCY

2.4GHz

INTERFACE(S)

  • I2S
  • I2C
  • SDIO
  • ADC
  • UART
  • GPIO

    • MEMORY

    8 MB Flash + 8 MB PSRAM

    MPN

    ESP32-LyraT-Mini

    POWER SUPPLY

    Main from USB: 5V
    Secondary from battery: 3.7V
