This product is discontinued and no longer available.
ESP32-MeshKit-Sense - Development Board
ESP32-MeshKit-Sense - Development Board
Product Images
ESP32-MeshKit-Sense - Development Board
SKU: GC-ESP-MESHKIT-SENSE-KIT
MPN: ESP32-MeshKit-Sense
Manufacturer: Espressif Systems
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description

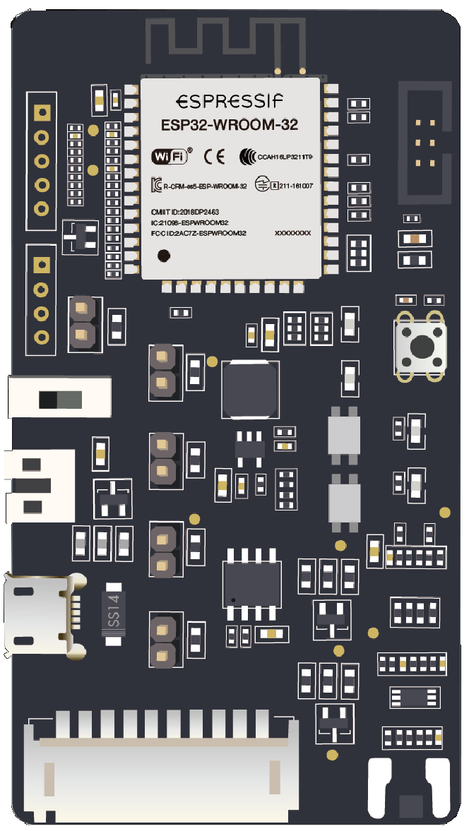

ESP32-MeshKit-Sense is a development board with an ESP32 module at its core. It features peripherals, such as a temperature and humidity sensor, an ambient light sensor, etc. The board can be interfaced with screens. The board is mainly used to detect the current consumption of ESP32 modules in a normal operation state or in sleep mode, when connected to different peripherals.
Features
- ESP32-MeshKit-Sense can control the associated ESP32-MeshKit-Light according to the readings from onboard sensors (detected sensor status)
- Demonstrates the low-power sensor solution powered by the ESP32 chip that allows ULP (Ultra Low Power) co-processor to read sensor data in Deep-sleep mode.
- ESP32-MeshKit-Sense can be used to turn on/off ESP32-MeshKit-Light according to the ambient light sensor data.
Documents and Drivers
Documentation
ESP32 MeshKit Sense User Guide
Specifications
Controller(s)
ESP32 module
Frequency
2.4 GHz
Indicators LED
- Charge (two color) - Red: charging, Green: fully charged
- BAT (two color) - Red: battery low, Green: battery sufficient
- WiFi - Slow flashing: network configuring, Rapid flashing: networking, Solid: successfully networked
- Network
- Sensor - On: operating, Off: power off
- Screen- On: operating, Off: power off
Interface(s)
- I/O
- USB
- LCD
- ESP-Prog
Memory
4 MB Flash
MPN
ESP32-MeshKit-Sense
Product Weight
1 oz
Sensor(s)
- Temperature & humidity sensor (HTS221)
- Ambient light sensor (BH1750)
Voltage
5 V
