ESP32-PICO-V3-ZERO SiP Module with Alexa Connect Kit (ACK)

$3.23

Leave a review

SKU: GC-ESP32-PICO-V3-ZERO

MPN: ESP32-PICO-V3-ZERO

Manufacturer: Espressif Systems

Delivery: CALL FOR INFORMATION
Shipping is Free on orders over $100
Call to order: (630) 245-1445

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

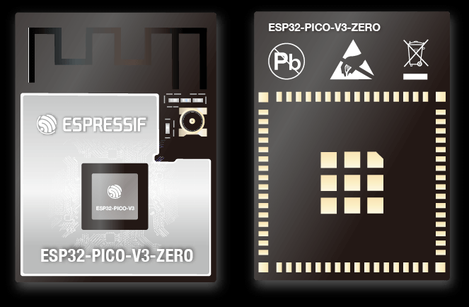

The ESP32-PICO-V3-ZERO is an Amazon Alexa Connect Kit (ACK)  module, a System-in-Package (SiP) device. It provides complete Wi-Fi and Bluetooth® functionalities with embedded Xtensa® dual-core 32-bit LX6 microprocessor. The module integrates a 4 MB SPI flash.

At the core of this module is the ESP32 chip, which is a single 2.4 GHz Wi-Fi and Bluetooth combo chip designed with TSMC’s 40 nm low-power technology. ESP32-PICO-V3-ZERO integrates all peripheral components seamlessly, including a crystal oscillator, flash, filter capacitors and RF matching links in one single package.

Module assembly and testing are already done at SiP level. As such, ESP32-PICO-V3-ZERO reduces the complexity of supply chain and improves control efficiency. It is ultra-small in size, with robust performance and low energy consumption.

Alexa Connect Kit (ACK)

Using ESP32-PICO-V3-ZERO on your device, you can easily, quickly and economically create products that customers love. ACK is a managed service that makes it easy to integrate Alexa into your products. With ESP32-PICO-V3-ZERO and its default firmware, devices or systems can connect to Alexa and the Internet without worrying about managing cloud services, writing an Alexa Skill, or developing complex networking and security firmware.


Features

  • ESP32 embedded, Xtensa® dual-core 32-bit LX6 microprocessor, up to 240 MHz
  • 448 KB ROM for booting and core functions, 520 KB SRAM for data and instructions, 16 KB SRAM in RTC
  • Wi-Fi and Bluetooth® functionalities
  • 2.4 GHz Wi-Fi and Bluetooth combo chip designed with TSMC’s 40 nm low-power technology
  • Bluetooth certification: BQB (ID: D050108), RF certification: FCC, SRRC, IC, RCM, CE-RED, Green certification: REACH/RoHS

Documents and Drivers

Documentation

ESP32-PICO-V3-ZERO Datasheet

ESP32 Datasheet

Specifications

Antennas

Internal PCB onboard antenna

Certifications

BQB, FCC, SRRC, IC, RCM, CE-RED, REACH/RoHS

Data Bits

802.11n up to 150 Mbps

Dimensions

16.00×23.00×2.30(±0.15)mm

Frequency

Center Frequency Range: 2412 ~ 2484 MHz

Interface(s)

2 × UART, EN pin, and interrupt pin

Memory

4 MB embedded in chip, 448 KB ROM for booting and core functions, 520 KB SRAM for data and instructions, 16 KB SRAM in RTC

MPN

ESP32-PICO-V3-ZERO

Power Supply

3.0 ~ 3.6 V

Temperature Range

-40°C to +85°C (-40°F to +185°F)
