RAK5146 - WisLink LPWAN Concentrator Module: With GPS

$145.00

Leave a review

SKU: GC-RAK5146-ULG-US915

MPN: 516013

Manufacturer: RAKwireless

Delivery: Ships within 2 to 4 weeks
Qualifies for Free shipping

GPS Option

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

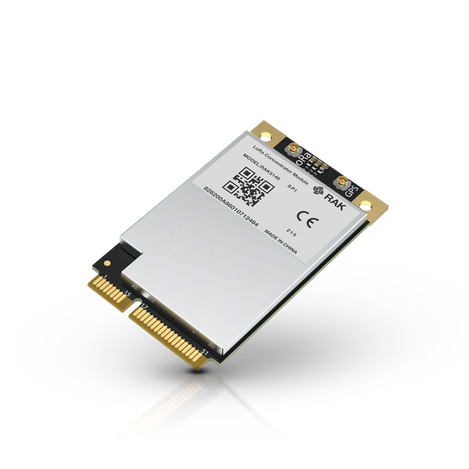

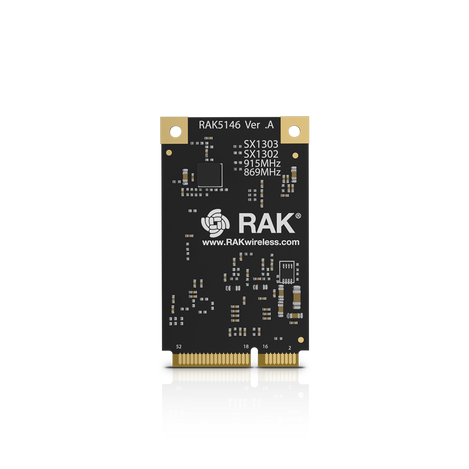

RAK5146 is an LPWAN Concentrator Module with mini-PCIe form factor based on Semtech SX1303 and SX126X for Listen Before Talk feature. This device enables easy integration into an existing router or other network equipment with LPWAN Gateway capabilities. It can be used in any embedded platform offering a free mini-PCIe slot with SPI/USB connection. Furthermore, ZOE- M8Q GPS chip is integrated onboard.

This module is an exceptional, complete, and cost-efficient gateway solution offering:

  • USB interface
  • LBT
  • 10 programmable parallel demodulation paths
  • 8 x 8 channel LoRa packet detectors
  • 8 x SF5-SF12 LoRa demodulators
  • 8 x SF5-SF10 LoRa demodulators

It is capable of detecting an uninterrupted combination of packets at 8 different spreading factors and 10 channels with continuous demodulation of up to 16 packets. This product is best for smart metering fixed networks and Internet-of-Things (IoT) applications.

Order Summary



SKU

With GPS

Manufacturer Part # (MPN)
GC-RAK5146-ULG-US915 Yes 516013-US915
GC-RAK5146-ULN-US915 No 516018-US915

Features

  • Designed based on Mini PCI-e form factor
  • SX1303 baseband processor emulates 8x8 channel LoRa packet detectors, 8x SF5-SF12 LoRa demodulators, 8x SF5-SF10 LoRa demodulators, one 125 /250 / 500 kHz high-speed LoRa demodulator, and one (G)FSK demodulator
  • 3.3v Mini PCI-e, compatible with 3G/LTE card of Mini PCI-e type
  • Tx power up to 27dBm, Rx sensitivity down to -139dBm@SF12, BW 125 kHz
  • Supports US915 frequency band
  • Supports USB interfaces
  • Listen Before Talk
  • Fine Timestamp
  • Built-in ZOE-M8Q GPS module optional

Documents and Drivers

Documentation

RAK5146 WisLink LPWAN Concentrator Module Datasheet

Specifications

Dimensions

30 mm x 50.96 mm x 5.5mm (W x H x D)

Frequency

US915

MPN

516013-US915, 516018-US915

Power Supply

3.3 V Typical 3V Min 3.6 Max

Product Weight

16.3 grams

Temperature Range

-40°C to +85°C (-40°F to +185°F)
