This product is discontinued and no longer available.

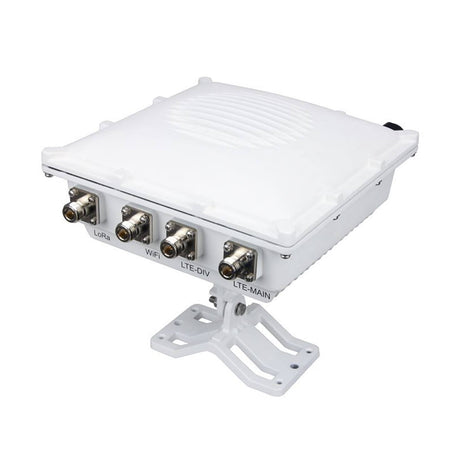

WisGate Edge Max RAK7249 Bundle 1 - LoRaWAN® Outdoor Gateway
WisGate Edge Max RAK7249 Bundle 1 - LoRaWAN® Outdoor Gateway
Product Images
WisGate Edge Max RAK7249 Bundle 1 - LoRaWAN® Outdoor Gateway
SKU: GC-RAK7249-US1
MPN: 716046
Manufacturer: RAKwireless Technology Co., Ltd.
We Have You Covered
Product Information
Product Description
RAK7249 WisGate Edge Max is an ideal product for IoT commercial deployment. Its modularity and customization options allow for flexibility when deploying a solution. With its industrial-grade components, it achieves a high standard of reliability.
The gateway provides for a solid out of the box experience for quick deployment. Since its software and UI sits on top of OpenWRT it is perfect for the development of custom applications (via the open SDK).
Thus the RAK7249 is suited for any use case scenario, be it rapid deployment or customization with regards to UI and functionality.
Requires 1 LoRa antenna (sold separately)
The RAK7249 Bundle 1 Gateway Includes:
Qty |
Kit Item |
---|---|
8 |
Channels |
2 |
LTE Antenna |
1 |
Wi-Fi Antenna |
1 | GPS Antenna |
Features
- Designed for outdoor use in harsh conditions
- Customizable package with respect to modules and functionality
- Multiple Backhaul connectivity and Power supply options
- Top of the line LoRa Range and low power consumption
- Dual LoRa® Concentrators for up to 16 channels
- Backhaul: Wi-Fi, LTE, and Ethernet
- Up to 5 hours of autonomous work on battery (Battery + Solar Kit optional)
- IP67/NEMA-6 industrial-grade enclosure with cable glands
- Built-in GPS module
- Built-in LoRa® Server
- OpenVPN
- Software and UI sit on top of OpenWRT
- LoRaWAN® 1.0.2
- LoRa® Frame filtering (node whitelisting)
- MQTT v3.1 Bridging with TLS encryption
- Up to 5 hours of autonomous work on battery (Battery + Solar Kit optional)
- Buffering of LoRa® frames in case of NS outage (no data loss)
Documents and Drivers
Documentation
RAK7249 WisGate Edge Max Datasheet
RAK7249 WisGate Edge Max Overview
RAK7249 WisGate Edge Max Quick Start Guide
Supported LoRa Network Servers
Specifications
Antennas
- 1x LTE
- 1x GPS
- 1x 2.4G WiFi
Channels
8
Dimensions
220mm x 220mm x 104mm
Enclosure
IP67/NEMA-6 industrial-grade with cable glands
Included in Box
- 1x LTE Antenna
- 1x GPS Antenna
- 1x 2.4G WiFi Antenna
- 1x Power Board
- 1x Backup Battery
- 1x IP67 Enclosure
MPN
716046
Power
PoE and Surge Protection
Product Weight
5.05kg including the mounting kit
Security/Protection
TLS encryption
Software
- LoRaWAN® 1.0.2
- OpenVPN
Temperature Range
-30°C to 55°C (-22°F to 131°F)
