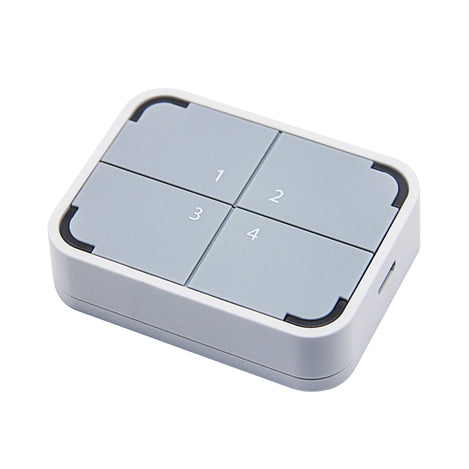

WisNode Button 4K - IoT LoRa Wireless Button

$50.70

Leave a review

SKU: GC-RAK7201-US915

MPN: 20600

Manufacturer: RAKwireless

Stock Status: In stock

Delivery: Ships same or next business day
Shipping is Free on orders over $75

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The WisNode Button 4K is a wireless remote trigger device with 4 programmable buttons that supports user-defined functions.  Based on LoRa technology this device is easily linked to a LoRaWAN network and allows flexibility with ABP and OTAA modes.

Applications

With long-range wireless connectivity, amazing battery life, and the 4 programmable buttons, this button can fit into many applications. For IoT and Smart Home applications there are a variety of uses:

  • Entertainment system control
  • Control of Lights
  • Snooze Button for Alarms
  • Home video
  • Picture taking
  • Remote triggers



 Package includes:

  • 1 WisNode Button 4K (RAK7201)
  • 1 Micro USB Cable
  • 1 Double-sided Adhesive Sticker

Features

Features of the RAK612 LoRa Button



  • 4 programmable buttons
  • LED indicators
  • Small size
  • Indoor use
  • Rechargeable Battery with 1 year charge
  • LoRaWAN® 1.0.2 compatible

Documents and Drivers

Documentation

RAK7201 WisNode Button 4K Datasheet RAK (Website)
RAK7201 WisNode Button 4K Quick Start Guide RAK (Website)
RAK7201 WisNode Button 4K AT Command Manual RAK (Website)
RAK7201 WisNode Button 4K Firmware Upgrade Guide RAK (Website)

Specifications

ANTENNAS

Spring antenna

BATTERY

  • Capacity: 350 mAh
  • Lifetime: 1 year

CONNECTOR(S)

Mirco USB port - USB 2.0

CURRENT

  • Charge: 500 mA/5V
  • Sleep: 4.8 uA
  • Transmitting: 77.4-153 mA

DIMENSIONS

43x57x15 mm

INDICATORS LED

  • All 4 buttons - Status - blue
  • Button 2 - Charging - red
  • Button 4 - Network - red

MOUNTING

Double-sided adhesive sticker

MPN

RAK7201-US915

NETWORK

LoRaWAN modes: ABP and OTTA

PROTOCOLS

LoRaWAN 1.0.2 Class A

RECEIVER SENSITIVITY

LoRa RX sensitivity: -136 dBm

TEMPERATURE RANGE

Operating temperature: -20°C to 60 °C (-4°F to 140°F)

TRANSMIT POWER

LoRa TX power: 20 dBm max
