MatchPort NR - Matchport No Radio Embedded Device Server

Leave a review

SKU: GC-MATCHPORT-NR

MPN: MP5002000-01

Manufacturer: Lantronix

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

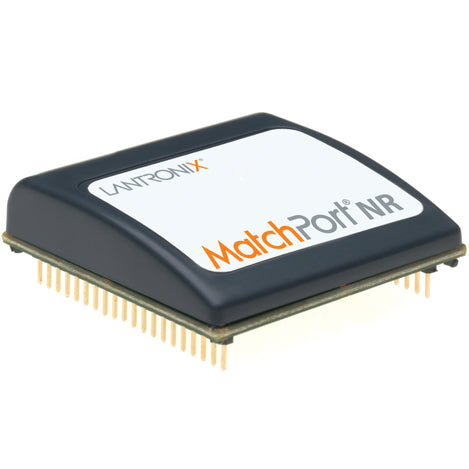

The MatchtPort® NR embedded device server module allows easy and affordable integration of Ethernet or IP networking on any device with a serial interface. Powered by a Lantronix DSTni™ x86 class processor, the MatchPort NR is a dedicated co-processor module that manages network activity and allows devices to be accessed and controlled over the internet. With a proven ready-to-use serial to Ethernet application the MatchPort NR manages the intricacies of Transmission Control Protocol (TCP) or Internet Protocol (IP) for your device by providing a full featured network protocol stack and a built-in web server.

Built-in web server funtionality with 1.2 MB of storage capacity allows for the creation of custom interactive web pages. Customization of web pages and configuration screens tailors the MatchPort NR to fit unique requirements and allows for product differentiation. Configurable GPIO pins or optional two-byte serial string triggers provide the ability to generate email notifications. These GPIO pins can also be used to control devices such as relays, lights, switches, sensors and even processes like data collection. For a detailed explanation of the customization capabilities please refer to the MatchPort NR User Guide and Integration Guide.

The MatchPort NR is a pin and form-factor compatible member of the Lantronix MatchPort family of wireless and wired networking module solutions. With MatchPort easily add remote access, remote diagnostics and email notifications to any serial circuit board design. Any existing automation device like a remote sensor becomes more robust and cost competitive with the wireless or wired capabilities of MatchPort embedded networking.

Software:
The turnkey MatchPort NR does not require additional software to operate. Grid Connect also offers a MatchPort Evaluation Kit which allows a design engineer to develop custom applications for the MatchPort. This evaluation kit includes PC software to connect and configure your device to a PC.

Support:
The knowledgeable and experienced engineers at Grid Connect provide complete technical support for the MatchPort family of embedded devices. We specialize in customizing MatchPorts and offer phone support and on-line chat support during regular business hours.

Features

  • Quick, easy and affordable Ethernet or IP embedded networking
  • Dedicated DSTni-EX x86 co-processor module that manages network activity
  • 256-bit Advanced Encryption Standard (AES) secure communication
  • Built in web server for device communication and configuration via a browser
  • Full TCP/IP stack, web server and Windows deployment software
  • Supports (2) serial channels with data rates up to 921 Kbps
  • Compact (45mm x 45mm) form factor shared by all members of the MatchPort family
  • 256 KB of on-chip SRAM plus 2 MB of Flash memory for web page and firmware storage
  • 8 General Purpose I/O (GPIO) pins configurable to control relays, sensors, etc...
  • EMC/EMI and RoHS compliant
  • Windows based DeviceIntaller(TM) – makes configuring one or more units quick and easy

Documents and Drivers

Documentation

MatchPort NR Datasheet

MatchPort User Guide

MatchPort NR Integration Guide

Downloads

Current DeviceInstaller

Current Com Port Redirector

Specifications

Certifications

EMC/EMI, RoHS

Characters T

7 or 8 data bits

CPU

Lantronix DSTni-EX x86 CPU

Data Rate

up to 921 Kbps

Dimensions

44.4 x 44.4 x 10.4 mm

Enclosure

Plastic shell, 260°C tolerant

Encryption

88

Firmware

Upgradeable via TFTP and serial port

Flow Control

XON/XOFF (software), CTS/RTS (hardware), none

Interface(s)

  • Network: 10/100M Ethernet
  • Serial: (2) serial ports

Internal Web Server

Serves web pages; Storage capacity of 1.2 MB

Management

Internal web server, SNMP (read only), Serial login, Telnet login, DeviceInstaller software

Memory

  • On-chip 256 KB zero wait static SRAM
  • 2,048 KB Flash
  • 16 KB Boot ROM

MPN

MP5002000-01

Parity

odd, even, none

Pins

  • 40-pin 2 mm header
  • 8 Configurable GPIO

Ports

(2) Serial Ports

Power Consumption

194 mA @ 3.3V CPU @ 48MHz 100Mbps (Average)

Product Weight

14 g

Protocols

ARP, UDP, TCP, Telnet, ICMP, SNMP,DHCP, BOOTP, Auto IP, HTTP, SMTP, TFTP, RFC 2217 (Telnet)

Security/Protection

128, 192, 256-bit AES encryption

Software

Windows 98/NT/2000/XP/Vista based DeviceInstaller configuration software and Com Port Redirector, Web-Manager

Stop Bits

1-2 Stop bits

Temperature Range

  • Storage: -40°C to 85°C (-40° to 185°F)
  • Operating: -40°C to 85°C (-40° to 185°F)

Warranty

2-year limited
