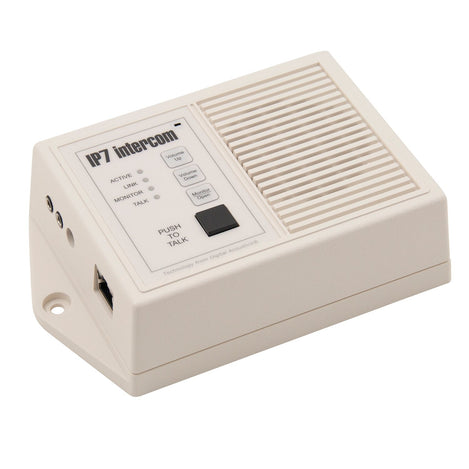

Desktop Ethernet Intercom - White
Desktop Ethernet Intercom - Black
IP Network Intercom Models
Product Images
IP Network Intercom Models: POE & 220V - Black
$515.00
SKU: GC-IPIC-EDB-POE-220
MPN: IP7-EDB-POE, 220 PS
Manufacturer: Digital Acoustics LLC
Stock Status: In stock
Power Supply
-
$500.00
-
$515.00
-
$515.00
Color
-
$515.00
-
$515.00
We Have You Covered
Product Information
Product Description
The Network Intercom is designed for network audio communication over Ethernet or the Internet. It can be used as a desktop intercom or surface mounted on any flat surface or wall using the included wall plate. Using existing LAN wiring, these IP intercoms are easy to install and have dozens of applications including
- classrooms,
- guard desks,
- remote stations, and
- reception/entrance locations.
The Digital Intercom technology offers many advantages over analog systems. A scalable design allows for intercom installations from one intercom to hundreds of endpoints such as intercoms, paging units or call station models.
Types of IP Intercom Systems: Paired and Console Based
Paired Intercom Systems (Most Popular)
Two endpoints can be configured as paired point-to-point units. These 2 intercoms can talk to each other from anywhere in the world over the Internet. They are configured using the included TalkMaster™ FOCUS Software running on a PC, and once set-up, the PC is removed, and the two endpoints will forever talk to each other exclusively.
You can have an unlimited number of paired intercoms on the same network - they will not interfere with each other.
You can change the configuration later by running TalkMaster FOCUS again.
Console Based Systems
A console based system has one or more PC Consoles communicating with any number of endpoints. Different software is needed to run a single-console system versus a multi-console system.
Single-console systems can be implemented using TalkMaster FOCUS Software that comes free with the purchase of any intercom. A single-console systems utilizes a PC running this free software to communicate with IP Intercom Endpoints. This is a "virtual" star configuration, where all endpoints report to the console.
The console can communicate with any endpoint using the PC's speaker and microphone. Using the GUI (Graphical User Interface), the console operator can initiate or receive calls to/from endpoints.
The operator is notified of waiting calls, and customized "please wait" messages can be created for calls waiting in queue. The console operator may also select groups of intercoms to broadcast a message or for paging.
TalkMaster FOCUS software can be loaded on any number of PC's, so the Console can move from one PC to another. In addition, a "live-standby" can be configured, so that console control can be passed back and forth between two PC's with ease.
Multi-console systems require
- purchase and installation of TalkMaster™ FOCUS Enterprise edition software to allow for multiple, simultaneously active consoles, and
- a server to host the Talkmaster FOCUS Operator Application.
This system features real-time call handling using rules-based queue management. Intercom queues are groups of intercoms that may be assigned to human console operators acting in management teams.
To assure service quality, the software incorporates a powerful set of rules-based controls to handle incoming call counts, waiting time in queue and call priorities. By applying these rules, the administrator is able to establish call response hierarchies for virtually any organizational requirement.
Typical Intercom Model Applications:
- Paired point-to-point with another intercom model
- Paired with an external call station unit with relay (GC-IPIC-IP7-FX) to provide access control for a door or gate.
- Paired with a paging unit (GC-IPIC-IP7-FX) for simple paging configuration
- Used as an end-station with a PC Master Console running TalkMaster FOCUS Software (point-to-multipoint). The PC Master Console can control and communicate with a single end-station intercom, to hundreds of intercoms in a larger installation.
Order Summary
SKU |
Power Supply |
Color |
Manufacturer Part # (MPN) |
---|---|---|---|
GC-IPIC-EDW-POE | POE Only | White | IP7-EDW-POE |
GC-IPIC-EDW-POE-110 | POE & 110V | White | IP7-EDW-POE-110 |
GC-IPIC-EDW-POE-220 | POE & 220V | White | IP7-EDW-PoE |
GC-IPIC-EDB-POE-110 | POE & 110V | Black | IP7-EDB-PoE, 110 PS |
GC-IPIC-EDB-POE-220 | POE & 220V | Black | IP7-EDB-PoE, 220 PS |
GC-IPIC-EDB-POE | POE Only | Black | IP7-EDB-PoE |
Features
- Local or Worldwide Ethernet or Internet Connection
- Supports either Full Duplex or Half Duplex communications
- Power-over-Ethernet (PoE)
- Simple configuration using PC software
- Simple installation using 10/100M Ethernet
- High-definition audio with simple Push-to-Talk button / speaker interface
- Volume Up, Volume Down, and Monitor/Open buttons
- 3.5mm Microphone and Speaker Jacks for External Interface
- Includes free Talkmaster FOCUS Software
- Direct mode functionality supports remote contact closure
Documents and Drivers
Documentation
IP Network Intercoms - Desktop & Surface Mount Datasheet
Direct Mode Configuration Application Note
IP7 Products for Half or Full Duplix Applications
Specifications
Audio Conenction
Nominal 1V p/p
Audio Latency
<200ms Auto-Adaptive
Audio Resolution
PCM-8 bit and uLAW-16 bit
Dimensions
5.3 x 4.0 x 1.35 in (98 x 91 x 35 mm)
Fault Management
Advanced Fail-Forward™ fault detection
Interface(s)
Network: 10/100 Base-T Ethernet, Auto-MDIX
IP Address Assignment
Static or Automatic via DHCP
Microphone
On-board Electret with software controlled AG
MPN
IP7-EDW, IP7-EDB
POE Standard
802.3af
Power
7.5 - 9VDC @ 5W
Protocols
- Network: TCP, UDP, RTP, SIP, ICMP, IGMP Multicast
- Audio: 8-bit PCM/G.711 uLaw
Software
TalkMaster FOCUS Software - Free version
Speaker Out
1 Watt
Temperature Range
- Operating: -30°C to 70°C (-22°F to 158°F)
- Storage: -40°C to 85°C (-40°F to 185°F)
Transport Bandwidth
Nominal 64K bps
