Extending Modbus Sensors Across Field Sites Without Running New Cabling

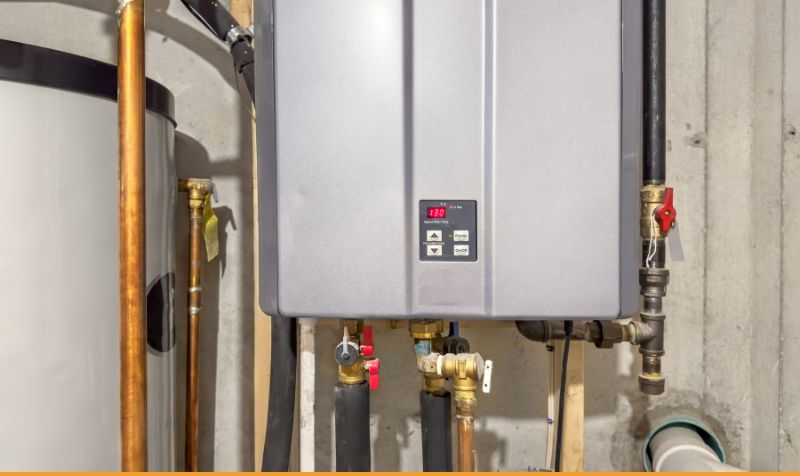

For an independent energy research and testing organization, every project rides on the data. Whether the work is a heat pump field trial, a micro-CHP (combined heat and power) study, or a multi-family hot water performance review, the sponsor — typically a gas or electric utility — is looking to the data to settle a question that matters to them and their customers. There is no room for a flaky meter or a missing CRC (cyclic redundancy check) .

That standard for trustworthy data is what brought the organization's senior data acquisition engineers to the GRID485.

The work behind a real-world energy study

The organization sits in a quiet, but important corner of the energy industry. Utilities and product engineers want to know how new, high-efficiency appliances actually behave in real homes and weather once they leave the lab. The organization’s team builds instrumentation to answer those questions and deploys it across roughly 10 field sites a year.

A typical instrumentation kit includes flow meters, thermocouples, BTU meters, gas and electric meters, pulse outputs, 4–20 mA sensors, and a central data logger. Many of those sensors talk Modbus RTU over RS-485. Others run on BACnet. Together they generate the data that ends up in a sponsor's annual study.

"It's important that we report proper data,” the engineer said. “A lot of people look at it."

The problem: remote sensors with no path for cable

On a recent project, 6 WattNode Modbus meters had to live in a different part of the site than the data logger. There was no way to pull RS-485 cable between the two.

"I couldn't run cables," the engineer said. "That was essentially the problem."

Connectivity was already in place at both ends of the site. The data logger had cellular and a Wi-Fi hotspot. The building's Wi-Fi reached the meter install location. What was missing was the piece in between: a gateway that could carry Modbus RTU over Wi-Fi, fit inside a small field enclosure, and stay reliable across a year-long study.

First attempt: a serial gateway that was not Modbus-aware

The team's first build used a NET485 — a general-purpose serial-to-Ethernet device — to push Modbus traffic across the Wi-Fi link. On the bench it looked close, but the data logger was not getting clean reads.

"I was shoving Modbus through it, and it would not give me a CRC," he said. "I had to look at the serial port to see I was missing those last two bytes."

That diagnosis pointed at a quieter truth about Modbus: it is anything but uniform. Every manufacturer writes its own register map. A+/B-/A-/B+ wire labels swap from one device to the next. Parity defaults rarely line up.

"There is no standard in Modbus," he said. "You can make your register table look exactly as chaotic as you want it to be."

A generic serial pipe could move bytes, but it could not enforce the framing and CRC integrity that Modbus actually depends on. The team needed a gateway that understood the protocol it was carrying.

"I needed a way to go from Wi-Fi back to Modbus RTU, because these things only have Modbus RTU," the engineer said.

The solution: a Modbus-aware bridge over Wi-Fi

The GRID485 is built for exactly that job. It speaks Modbus on both sides — TCP on the network side and RTU on the serial side — and handles the framing, CRCs, and addressing in between.

The new field build is small and easy to move. A Wi-Fi client router on the meter side connects back to the hotspot at the data logger. From the router, an Ethernet cable runs into the GRID485, which converts traffic between Modbus TCP over Wi-Fi and Modbus RTU on the RS-485 bus. The 6 WattNode meters daisy-chain off the bus. A standard 12 V wall power supply runs the whole box.

The result: clean data today, room to grow tomorrow

With the GRID485 in place, the 6 remote Modbus meters reached the data logger over Wi-Fi instead of cable. The reads came through clean, with no missing bytes and no broken CRCs. The field box is compact, easy to redeploy, and built from one purpose-built gateway instead of an improvised stack of parts.

The company is now modernizing the rest of their data acquisition stack. Text files dropped onto an FTP server are giving way to encrypted storage inside the team's own managed Azure environment.

"We need it to be encrypted and stored," the engineer said. "It's not local, but it is under our control."

MQTT is set to replace the legacy serial workarounds the team has had to build itself.

"MQTT is mature, and it's very good," he said. "I don't know why we're not using it yet. The more I see it, the more I think we should be."

The GRID485's firmware roadmap moves in the same direction. For a research organization whose sponsors rely on it for trustworthy data, that match between today's deployment and tomorrow's roadmap is what makes a piece of infrastructure worth standing behind.
