HWg 30A AC Current probe 1W-UNI 2

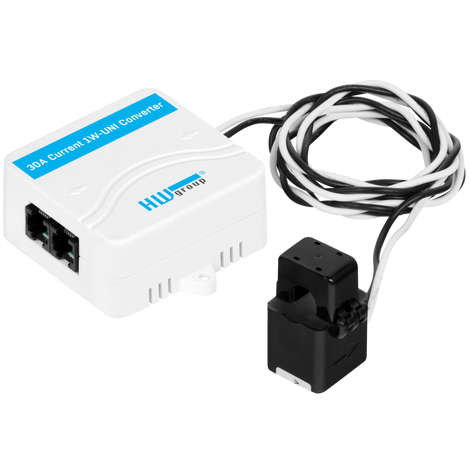

30A AC Current probe 1W-UNI 2 is a sensor for indirect single-phase measurement of AC current up to 30A without cutting the wire. The split-core current transducer can be opened in order to insert a line wire. The sensor is suitable for monitoring power consumption of racks, BTS’s or server rooms. Sensor is suitable for Poseidon and Ares product families (all sold separately).

Applications and Usage

• The current transducer (“CLAMP METER”) clamps around the line (L) or neutral (N) wire carrying the measured current.
• The wire under measurement must be insulated!
• The “CLAMP METER” and “Converter” must be connected using a double insulated wire.

To insert the wire for measuring, unlock the clamp-on core and insert one live wire. Then, close the core and engage the lock.

Note:   Inserting two or more wires makes the measurement impossible.
The wire must lead freely through the core. Do not wrap the wire around the core.
