3G/4G USB WiFi Router

$89.95

Leave a review

SKU: GC-CSS-WIFI-ROUTER

MPN: 3G/4G USB WiFi Router

Manufacturer: CSS Electronics

Delivery: Ships within 7-14 business days
Qualifies for Free shipping

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

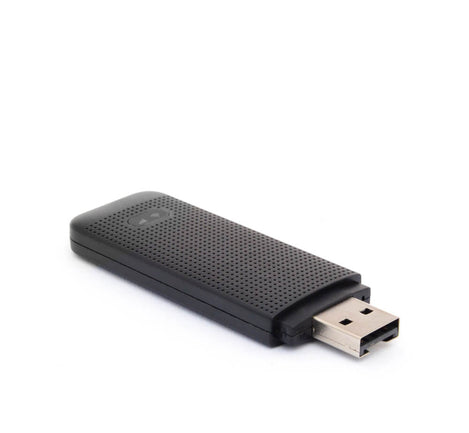

The cellular USB WiFi hotspot is a simple way to provide your CANedge2 WiFi CAN logger with a 3G/4G access point. Insert your SIM card, add the SSID/password in the CANedge2 config - and power the hotspot.

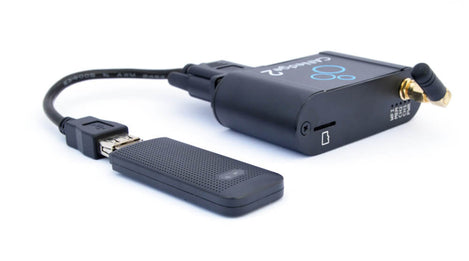

The hotspot can be powered via any standard USB power supply (e.g. in a vehicle) or it can be optionally powered via the CANedge2 2nd port via the DB9-USB adapter. In the latter case you can still log data from both CANedge2 channels by using a DB9-Y-splitter.

Features

Features of the 3G/4G USB WiFi Router


  • PLUG & PLAY: Add your SIM & configure your CANedge2 with the hotspot name/pass
  • ON-THE-ROAD: Transfer CAN data via 3G/4G from vehicles while on-the-road
  • SMALL & EASY: Power e.g. via the CANedge2 2nd port using a DB9-USB adapter
  • CONSISTENCY: Avoid dealing with WLAN firewalls & ports at e.g. client end user sites
  • 1-10 DEVICES: Connect up to 10 devices for optimal data plan use
  • UNLOCKED: Simply add your own SIM card with your preferred data plan

Specifications

ANTENNAS

Built-in 3G/4G & WIFI antenna
WIFI antenna gain: -1 dbi (3G/4G: -1.5 dbi)

CERTIFICATIONS

CE/RoHS

DIMENSIONS

8.2 x 2.6 x 0.8 cm

FREQUENCY

WiFi Frequency: 2412MHz-2472MHz

MPN

3G/4G USB WiFi Router

POWER

Powered via USB - e.g. in your vehicle
Voltage: 5V, Power Consumption: <3W

PRODUCT WEIGHT

16g

TEMPERATURE RANGE

Working: -10°C to 45°C (14°F to +113°F)
Storage: -20°C to 75°C (-4°F to +167°F)
