4-20mA Sensor
4-20mA Sensor
Product Images
Stock Status: In stock
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description

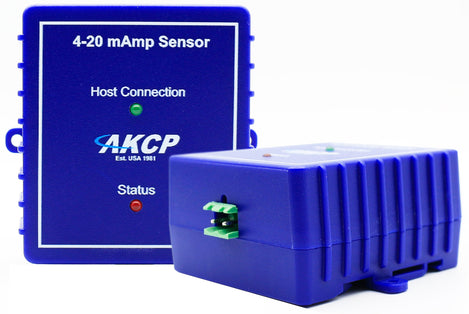

The 4-20 mA Sensor is a signal converter used to integrate a sensorProbe or securityProbe controller with a 4-20 mA transmitter. When electrical interference is a problem, 4-20 mA technology is used to communicate analog signals over long distances.
This solution is often used in the process control industry to collect the analog values from a wide array of remote sensors. Current signals are much less susceptible to noise than voltage signals. A voltage signal can be converted to current and then broadcast over a long distance before it is converted back to voltage and read by the controller.
The sensor can be placed up to 1,000 feet from the controller using standard CAT5 cable (5 ft cable included).
4-20 mA transmitters are common in the industry for use with high quality sensors. With the 4-20 mA converter these sensors can now be integrated into the controllers enhancing their value with the addition of graphing, web interface, email interface, thresholds, and limits.
Features
- CAT5 Enabled sensor add up to 1000' of CAT5 cable to the sensor
- Converts current levels from 4 – 20 mA to 0.8 – 4.0 V voltage levels
- Up to two I-V converters per sensorProbe2, 8 per sensorProbe8
Documents and Drivers
Documentation
4-20mA Sensor Datasheet
AKCP Sensor Selection Summary
Specifications
CAT5 Enabled
Allows you to add up to 1000' of CAT5 cable to the sensor
Current
Input Range: +4mA to +20 mA
Dimensions
65 x 62 x 15 mm
Indicators LED
2 LEDs show status of the current loop and the power supply
Input/Output
- Input: Two terminal, Iin(+) and Iin(-), for current loop
- Output: RJ45 jack to converter using UTP Cat 5 wire
Linearity
± 0.09 % Full Scale, Maximum
Measurement Accuracy
- ± 0.15% Full Scale
- ± 0.3% Full Scale, Maximum
MPN
vc00
Power Consumption
25 mW
Power Supply
+5 VDC
Product Weight
80 grams
Temperature Range
-40°C to +85°C (-40°F to +185°F)
