9V 600mA US Wall Power Supply & AC Adapter
9V 600mA US Wall Power Supply & AC Adapter
Product Images
9V 600mA US Wall Power Supply & AC Adapter
$18.00
SKU: GC-PS-9VDC-600MA-US
MPN: GC-PS-9VDC-600MA-US
Manufacturer: Grid Connect Inc.
Stock Status: In stock
We Have You Covered
Product Information
Product Description

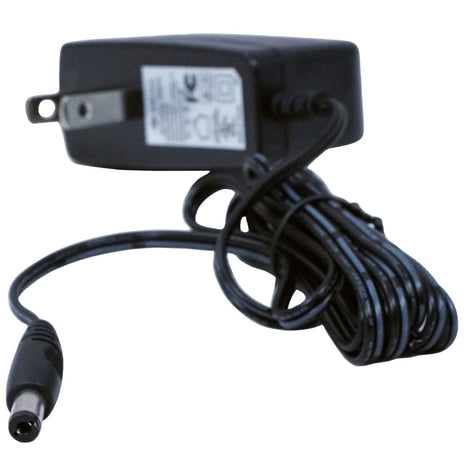

This Class II wall-mount power supply delivers 9 VDC at up to 600 mA through a 5.5 × 2.1 mm center-positive barrel plug. The fixed US blades plug directly into a standard wall outlet.
It accepts 100–240 VAC at 50/60 Hz and meets DoE Level VI efficiency standards, drawing less than 0.075 W with no load. The supply is UL listed as a limited power source and is FCC compliant for use alongside other electronics.
Frequently Asked Questions
What’s the difference between this and the 660 mA Universal power supply?
This adapter is built for North American outlets. Its US blades are fixed, and it delivers up to 600 mA. The Universal model delivers up to 660 mA and has interchangeable blades for use in other countries. If your equipment stays in North America and draws 600 mA or less, this model is the simpler choice.
Will this fit my device?
It has a 5.5 × 2.1 mm barrel plug with center-positive polarity. Before you order, check that your device’s input jack, polarity and voltage match. Also make sure the device draws 600 mA or less.
Can I use a 600 mA supply on a device rated for less current?
Yes. A device draws only the current it needs. The 600 mA rating is the most this adapter can supply, so it works with any 9 VDC, center-positive device that draws up to that amount.
Is it energy efficient?
Yes. It meets US Department of Energy Level VI efficiency standards and draws less than 0.075 W when nothing is connected.

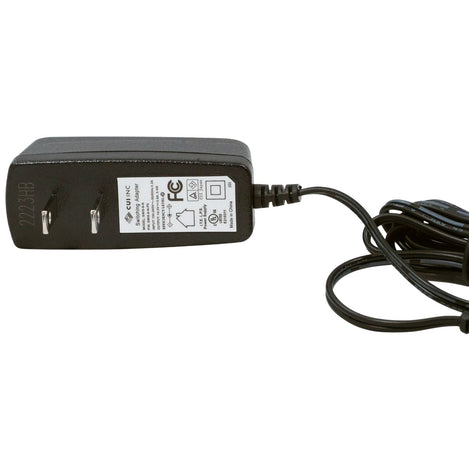

Is this power supply safety certified?
Yes. It’s UL listed as a limited power source and is FCC compliant.
Features
- Fixed US (NEMA 1-15) blades
- Accepts 100–240 VAC input
- 5.5 × 2.1 mm center-positive barrel plug, a common size on 9 V equipment
- Meets DoE Level VI efficiency standards
- UL listed Class II limited power source
- FCC compliant and RoHS compliant
Specifications
Output
9 VDC, 600 mA max, 5.4 W
Input
100–240 VAC, 50/60 Hz, 0.2 A max
No-load power
<0.075 W
Output connector
5.5 × 2.1 mm barrel, center positive
AC plug
fixed US blades (NEMA 1-15)
Efficiency
DoE Level VI
Safety
UL/cUL listed, limited power source (LPS)
Operating temperature
0° to 40°C (32° to 104°F)
Protection class
Class II
Compliance
RoHS
