AKCP Air Quality and Particle Sensor (AQS)
AKCP Air Quality and Particle Sensor (AQS)
Product Images

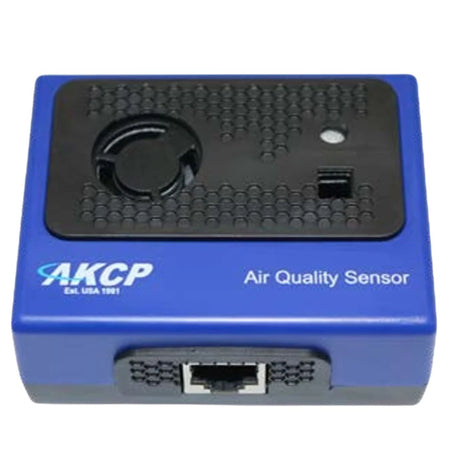

AKCP Air Quality and Particle Sensor (AQS)
$356.00
SKU: GC-AK-AQS
MPN: AQS
Manufacturer: AKCP Co Ltd.
We Have You Covered
Product Information
Product Description
The AKCP Air Quality Sensor (AQS) reports 9 air quality readings from a single compact sensor: particulate matter (PM1.0, PM2.5, PM4.0, PM10), carbon dioxide (CO2), volatile organic compound (VOC) index, nitrogen oxides (NOx) index, temperature, and humidity.
Dust is an easy problem to miss in a data center. Particles settle on heatsinks and components and insulate them from the cooling air. Your rack can show cold supply air and no cooling faults while a server still overheats. A rising particulate count provides the missing data point, showing dust may be the cause, so you can schedule cleaning or filter changes before you lose a server.
Gases cause a slower kind of damage. A buildup of VOCs or NOx, combined with incorrect humidity, creates conditions for corrosion of metal elements. The AQS tracks gases and humidity together, allowing you to spot that combination early.
The particulate sensor uses dust-resistant Sheath Flow technology rated for a lifetime of more than 10 years. Mount it up to 10 m (33 ft) from your AKCP base unit. Pair it with AKCP temperature sensors, such as the cabinet thermal map, to see the cause of a high ∆T in the rack and not just the symptom.
Features
- 9 readings from one sensor: PM1.0, PM2.5, PM4.0, PM10, CO2, VOC index, NOx index, temperature, and humidity
- Particulate mass concentration from 0 to 1,000 µg/m³, with ±10% or ±10 µg/m³ precision
- CO2 measurement from 0 to 40,000 ppm, accurate to ±(50 ppm + 2.5% of reading)
- VOC and NOx relative index tracking (1 to 500) for early warning of corrosive conditions
- Temperature and humidity readings on the same sensor for correlating air quality with climate
- Dust-resistant Sheath Flow technology, rated for a lifetime of more than 10 years
- Up to 10 m (33 ft) of cable between the sensor and the base unit

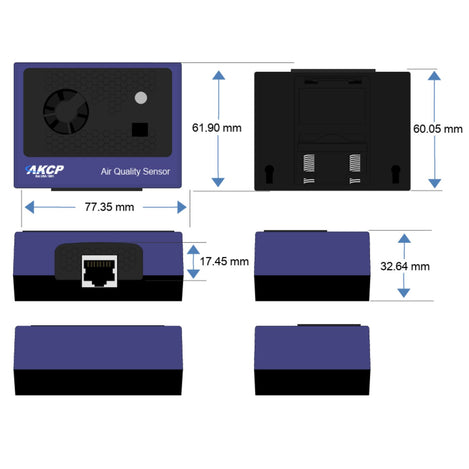

- Compact enclosure: 77.35 × 61.90 × 32.64 mm (3.05 × 2.44 × 1.29 in)
Documents and Drivers
Documentation
AQS Data Sheet
Downloads
3D model
Specifications
Particulate matter (PM)
- Measurement parameters: PM1.0, PM2.5, PM4.0, PM10
- Mass concentration range: 0 to 1,000 µg/m³
- Mass concentration precision: ±10% or ±10 µg/m³ (whichever is larger)
- Particle size range: 0.3 µm to 10 µm
- Lifetime: >10 years (dust resistant with Sheath Flow technology)
Carbon dioxide (CO2)
- Measurement range: 0 to 40,000 ppm
- Accuracy: ±(50 ppm + 2.5% of reading)
VOC and NOx
- VOC index range: 1 to 500 index points (relative)
- NOx index range: 1 to 500 index points (relative)
Temperature
- Measurement range: -10°C to +50°C (+14°F to +122°F)
- Accuracy: ±0.45°C (±0.81°F) (typical)
- Resolution: 0.1°C (0.2°F)
Humidity
- Measurement range: 0% to 90% RH (non-condensing)
- Accuracy: ±4.5% RH (typical)
- Resolution: 1% RH
Hardware
- Max cable length: 10 m (33 ft)
- Sensor count: 9
- Dimensions: 77.35 × 61.90 × 32.64 mm (3.05 × 2.44 × 1.29 in)
