AKCP AQX4 Air Pollution & Pressure Sensor (4-in-1)
AKCP AQX4 Air Pollution & Pressure Sensor (4-in-1)
Product Images
AKCP AQX4 Air Pollution & Pressure Sensor (4-in-1)
$142.49
SKU: GC-AK-AQX4
MPN: AQx4
Manufacturer: AKCP Co Ltd.
We Have You Covered
Product Information
Product Description
4 measurements, one sensor

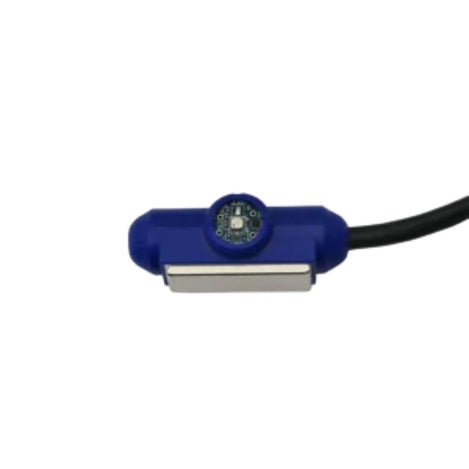

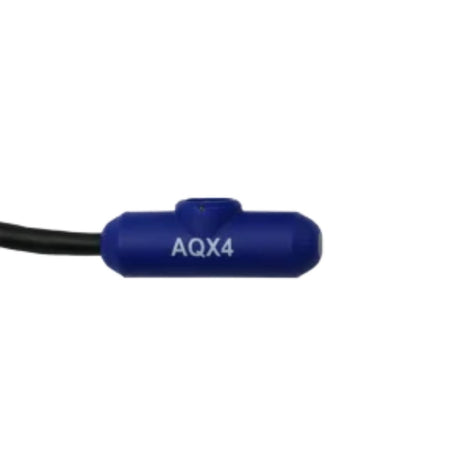

The AKCP AQX4 measures 4 conditions with one compact sensor: air quality index, static air pressure, temperature, and humidity with one sensor port and one cable run.
Air quality index
The air quality index scores the air in the space from 0% (clean) to 100% (maximum pollution). It responds to volatile organic compounds (VOCs) and volatile sulfur compounds (VSCs). Graph the index over time to see whether air quality is getting better or worse, and set an alert to tell staff when it is time to bring in fresh air.
Static and differential pressure
Static air pressure readings help you control fan speeds and air supply volumes. Put two AQX4 sensors in different spaces and compare their readings to get differential pressure, which can point to problems such as a blocked air filter.
Temperature and humidity
Temperature and humidity monitoring covers the usual checks, such as server inlet temperatures in a data center or workplace conditions for OSHA (Occupational Safety and Health Administration) compliance.
Connection and installation

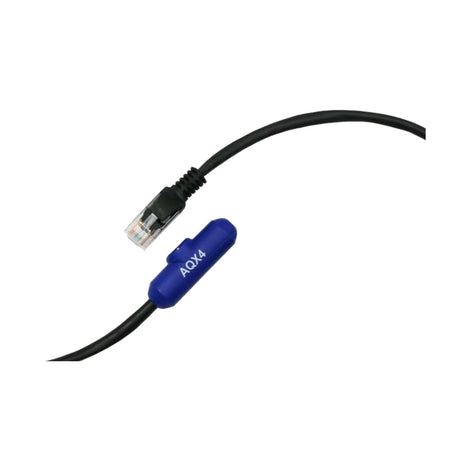

The AQX4 connects to the sensor port on an AKCP sensorProbe+ base unit and ships with a 15 ft (4.6 m) cable.
Features
- 4-in-1 sensing: air quality index, static air pressure, temperature, and humidity
- Air quality index scores VOCs and VSCs from 0% (clean air) to 100% (maximum pollution)
- Static air pressure measurement from 300 to 1100 hPa, with ±0.5 hPa absolute accuracy
- Differential pressure monitoring when you pair 2 sensors, which helps catch blocked filters and airflow imbalances
- Temperature range of -40°C to +85°C, with ±0.5°C accuracy at 25°C
- Humidity range of 0 to 100% RH, with ±3% RH typical accuracy
- Set alert thresholds and graph trends over time from your AKCP base unit
- Ships with a 15 ft (4.6 m) cable; custom lengths up to 100 ft (30 m) are available
- Compact housing of 25.24 × 16.64 × 15.60 mm, small enough for racks, ceilings, and wall mounts
Documents and Drivers
Documentation
AQX4 data sheet
Downloads
3D Model
Specifications
Air pollution (gas sensor)
- Output metric: Air pollution level (%)
- Measurement range: 0% to 100%
- Clean air (0%): Gas resistance ≥ 50 kΩ
- Normal to warning (0–65%): 50 kΩ > resistance > 18 kΩ
- Warning to critical (65–85%): 18 kΩ ≥ resistance > 5 kΩ
- Critical to max (85–100%): 5 kΩ ≥ resistance > 1.5 kΩ
- Max pollution (100%): Gas resistance ≤ 1.5 kΩ
Air pressure
- Measurement range: 300 to 1100 hPa
- Absolute accuracy: ±0.5 hPa
- Relative accuracy: ±0.05 hPa
Temperature
- Measurement range: -40°C to +85°C (-40°F to +185°F)
- Resolution: 0.1°C (0.2°F) increments
- Accuracy: ±0.5°C (at 25°C)
Humidity
- Measurement range: 0 to 100% RH
- Accuracy: ±3% RH (typical)
- Resolution: 1% RH increments
Hardware
- Sensor count: 4
- Standard cable length: 4.6 m (15 ft)
- Maximum cable length: 30 m (100 ft), custom lengths available

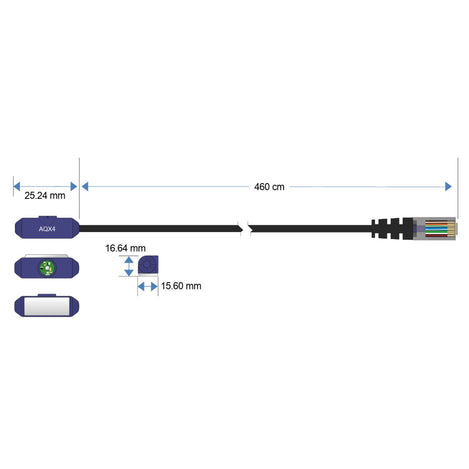

- Dimensions: 25.24 × 16.64 × 15.60 mm (0.99 × 0.66 × 0.61 in)
