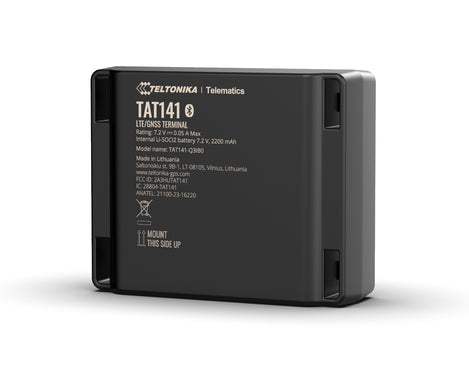

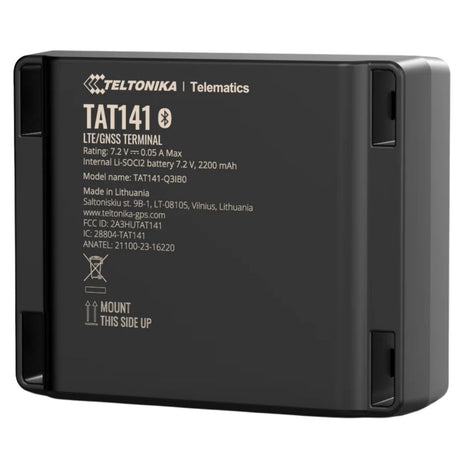

TAT141 Battery Powered Asset Tracker, IP68, 4G LTE Cat M1
TAT141 Battery Powered Asset Tracker, IP68, 4G LTE Cat M1
Product Images
TAT141 Battery Powered Asset Tracker, IP68, 4G LTE Cat M1
$120.00
SKU: GC-TTEL-TAT141
MPN: TAT141BKBP01
Manufacturer: Teltonika Telematics
Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the continental US
We Have You Covered
Skip To Footer
Product Information
Product Description
The TAT141 is a compact, wire-free asset tracking unit designed for reliable monitoring of non-powered assets across a broad range of industrial and commercial applications. By incorporating 4G LTE Cat M1 connectivity with 3G/2G fallback, multi-constellation GNSS, and Bluetooth®, the device delivers near-global tracking coverage with robust data transmission reliability.
The IP68-rated enclosure ensures operational integrity in harsh outdoor environments, while the deep sleep mode and configurable reporting intervals maximize battery longevity for long-duration deployments.
Target Applications
- Construction equipment monitoring
- Tool and inventory tracking
- Trailer and container tracking
- High-value asset protection
- Vehicle backup/secondary tracking
Main Benefits and Capabilities
Multi-Network Connectivity
- 4G LTE Cat M1 primary network with automatic 3G/2G fallback
- Extended global network coverage for wide-area asset monitoring
GNSS Positioning
- Multi-constellation GNSS support for accurate location acquisition across diverse environments
Bluetooth® Integration
- Onboard Bluetooth® for short-range communication and peripheral device support

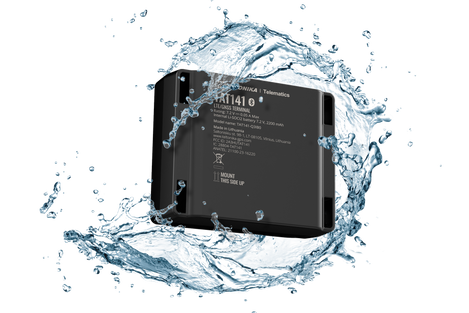

IP68-Rated Enclosure
- Fully waterproof and dust-resistant housing rated to IP68
- Designed for outdoor deployment and exposure to extreme environmental conditions
Wire-Free Installation
- Tool-free, cable-free mounting for rapid field deployment
- Flexible installation options for non-powered assets
Configurable Reporting & Scheduling
- User-defined periodic location reporting intervals
- Weekly scheduler supporting both stationary and in-motion tracking scenarios
- Pre-programmable alarm and report configurations via deep sleep mode
Backup Tracking Capability
- Seamless integration with Teltonika vehicle tracking devices as a secondary/backup tracker
- Enhances asset security with redundant tracking coverage
Optimized Battery Performance
- Multiple operational modes to extend battery life based on deployment requirements
- Battery life estimation available via the Teltonika battery life calculator
OTA Firmware Updates
- Over-the-air (OTA) firmware updates via Teltonika user applications
- Enables remote device management without physical retrieval
Features
- Scenarios - Accelerometer wake up, GNSS, Bluetooth® sensor support, Recovery mode, Periodic tracking on stop / on move, Scheduler with time zones, Backup tracking, Static navigation, Lost BLE sensor
- Sensors - Accelerometer
- Sleep modes - Single custom sleep mode
- Configuration and firmware update - FOTA WEB, Teltonika Configurator (USB)
- SMS - Configuration, Events, Debug
- GPRS commands - Configuration, Debug
- Time Synchronization - GNSS, NITZ, NTP
Documents and Drivers
Documentation
TAT141 Datasheet
TAT141 First Start
TAT141 Quick Manual
Specifications
MODULE
Name
TAT141-Q3IB0: Quectel BG95-M3 with Teltonika TM2500
Technology
LTE CAT M1 / NB-IoT / GSM
GNSS
Receiver
- 33 tracking channels
- 99 acquisition channels
Tracking Sensitivity
-165 dBm
Position Accuracy
< 2.5 m CEP
CELLULAR
Technology
GSM / GPRS
2G Bands
GSM: B2 / B3 / B5 / B8
4G LTE Bands
- LTE-FDD (CAT M1): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B27/B28
- LTE-FDD (CAT NB2): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B28
Data Transfer
- LTE: Max. 588 Kbps (DL) / Max. 1119 Kbps (UL)
- GPRS: Max. 107 Kbps (DL) / Max. 85.6 Kbps (UL)
Transmit Power
- Class 4 GSM850/900: 23 ± 2 dBm
- Class 1 GSM1800/1900: 20 ± 2 dBm
- Class 3 LTE-TDD: 23 ± 2.7 dBm
- Class 3 LTE-FDD: 23 ± 2.7 dBm
- Bluetooth® LE: -6.6 dBm
- CE Bluetooth®: 6.43 dBm
- FCC Bluetooth®: 6.6 dBm
Data Support
SMS (TEXT), Network protocols (TCP, UDP)
POWER
Internal Battery
Li-SOCl2 swappable, non-rechargeable 7.2 V, 2200 mAh — extremely low self-discharge
Battery Life
- Up to 5 years (used as backup tracker via Bluetooth® only) *
- Up to 4 years (1 LBS — cell tower report per day) *
- Up to 3 years (1 GNSS report per day) *
* Estimates vary with temperature, reporting frequency, installation orientation, network coverage, and enabled features
BLUETOOTH® TECHNOLOGY
Specification
Bluetooth® 5.2 + LE
Supported Peripherals
EYE Sensors, EYE Beacons (recovery mode only), Universal Bluetooth® LE sensors
PHYSICAL SPECIFICATION
Dimensions (L x W x H)
78 × 63 × 28 mm (3.07 × 2.48 × 1.10 in)
Weight
115 g (0.25 lb) — with 2 cell batteries installed
OPERATING ENVIRONMENT
Operating Temperature (with battery)
-35 °C to +75 °C (-31 °F to +167 °F)
Storage Temperature (with battery)
-40 °C to +85 °C (-40 °F to +185 °F)
Recommended max. 30 °C (86 °F)
Operating Temperature (without battery)
-20 °C to +60 °C (-4 °F to +140 °F)
Operating Humidity
5% to 95% non-condensing
Ingress Protection Rating
IP68
Battery Discharge Temperature
-60 °C to +85 °C (-76 °F to +185 °F)
Battery Storage Temperature
Recommended max. 30 °C (86 °F)
INTERFACE
GNSS Antenna
Internal High Gain
Cellular Antenna
Internal High Gain
USB
2.0 Micro-USB
LED indication
1 status LED light
SIM
Micro-SIM
Memory
128 MB internal flash memory
CERTIFICATION & APPROVALS
Regulatory
CE / RED, E-Mark, RCM, RoHS, UKCA, AT&T, FCC, IC, PTCRB, Anatel
