ATC-105 Isolated RS232 to RS485 Converter
ATC-105 Back

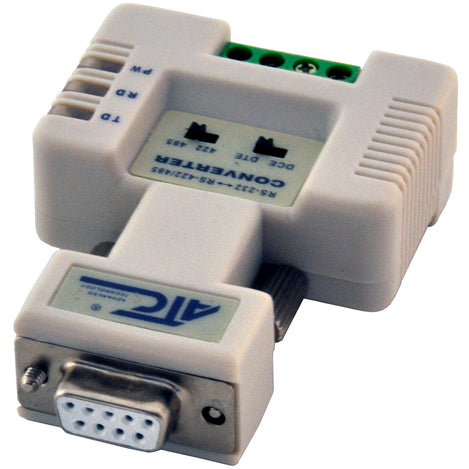

232 to 485 converter - ATC-105

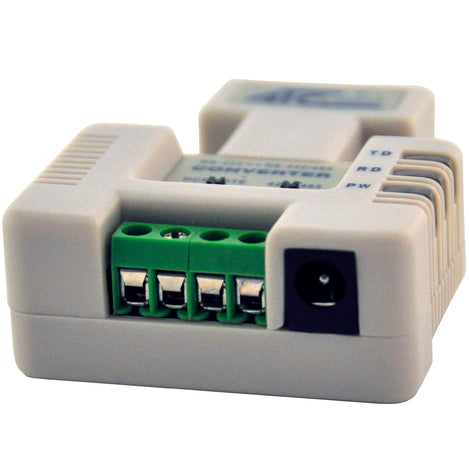

ATC-105 Power

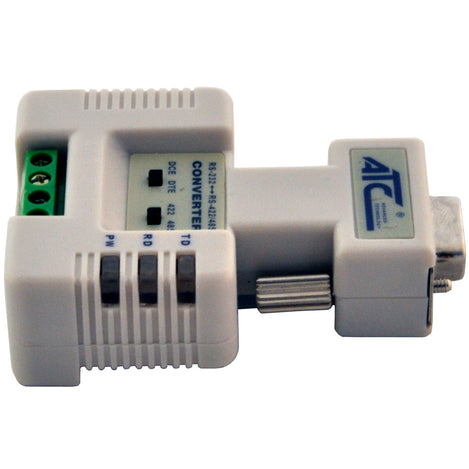

ATC-105 Side
ATC-105 Isolated RS232 to RS485 Converter
Product Images
ATC-105 Isolated RS232 to RS485 Converter
$49.94
5.0 stars 5.0 (3) See customer reviews
SKU: GC-ATC-105
MPN: ATC-105
Manufacturer: ATC
Stock Status: In stock
We Have You Covered
Product Information
Product Description
The ATC-105 converts RS232 DB9 signals to either RS485 or RS422 with isolation. DTE/DCE and RS422/RS485 are switch selectable. LED indication for TX and RX signals. Wall AC power supply included.
Documents and Drivers
Documentation
ATC-105 User Manual
Specifications
Baud Rate
up to 115 K
Connector(s)
- RS232: DB9 Female
- RS422: 4 position terminal block
Dimensions
85 x 54 x 25 mm
Humidity
5% to 95%
Indicators LED
TX, RX, Power
Isolation
3500V RMS, 500VDC Isolation
MPN
ATC-105
Power Supply
9VDC 200mA external power supply included
Security/Protection
15KV ESD protection, 600W lightning strike/surge protection
Serial Interfaces
374,369
Serial Types
372,370,371
Switch Option
- DTE/DCE switch selectable
- RS485/422 switch selectable
Temperature Range
-25°C to +70°C (-13°F to +158°F)
