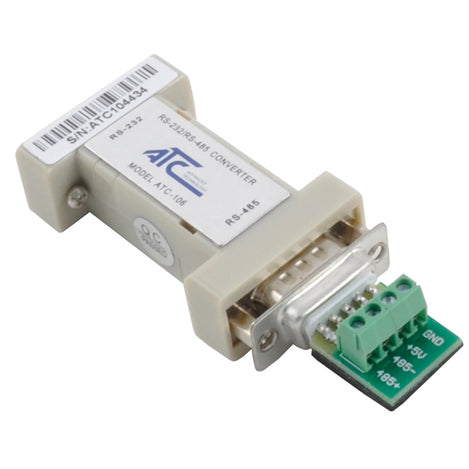

ATC-106 RS232 to RS485 - Angle

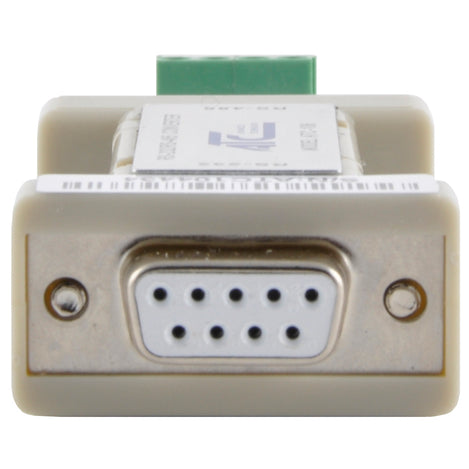

ATC-106 RS232 to RS485 - 232 Connector

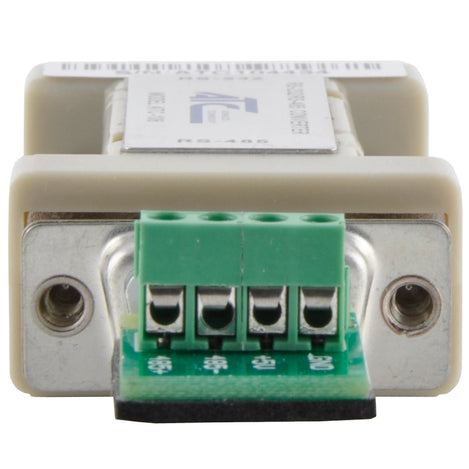

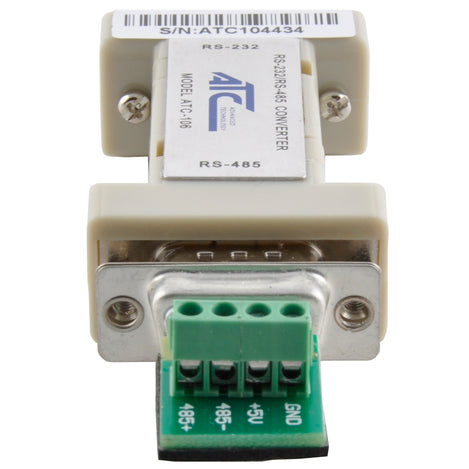

ATC-106 RS232 to RS485 - 485 Connector

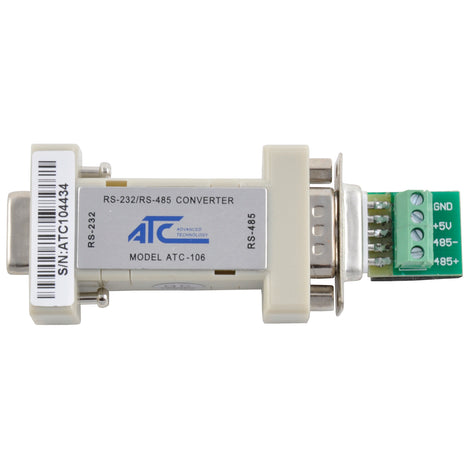

ATC-106 RS232 to RS485 Top

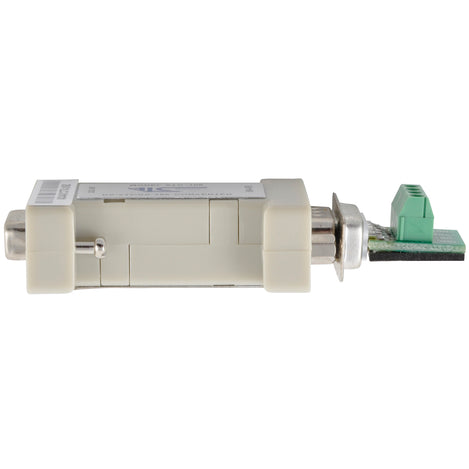

ATC-106 RS232 to RS485 Side
ATC-106 RS232 to RS485 DB9 Converter Non-Isolated
Product Images
ATC-106 RS232 to RS485 DB9 Converter Non-Isolated: up to 115K Baud
$18.69
SKU: GC-ATC-106
MPN: ATC-106
Manufacturer: ATC
Stock Status: In stock
Speed
-
$18.69
-
$24.94
We Have You Covered
Product Information
Product Description
The ATC-106 converts a DB9 RS232 female connection to a DB9/4 position terminal block RS485 half duplex connection. The ATC-106 is non-isolated and derives power from the RS232 TX/RX signals.
The GC-ATC-106 can go up to 115K baud. The GC-ATC-106NH can go up to 460K.
Documents and Drivers
Documentation
ATC-106 User Manual
Downloads
ATC-106 Product CD
Specifications
Baud Rate
up to 115 K
Dimensions
88 x 33 x 17 mm
Humidity
5% to 95%
MPN
ATC-106
Power Supply
- Self powered using TX,RX,RTS,CTS RS232 signals
- Can be powered using +5VDC/40mA if RS232 is not strong enough
Serial Interfaces
- RS232: DB9 Female
- RS485: DB9 Male / 4 position terminal block
Serial Types
RS232, RS485
Temperature Range
-0°C to +50°C (32ºF to 122ºF)
Transmission DIstance
0-1200 m @ 24 AWG
