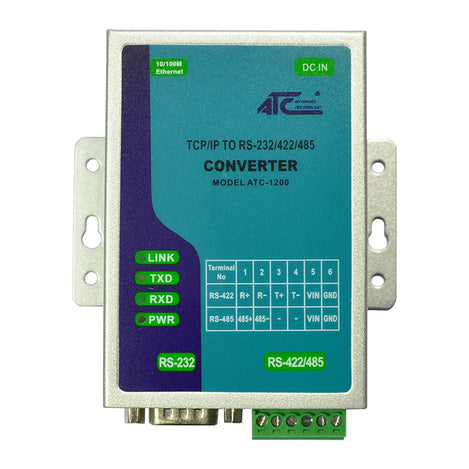

ATC-1200 - TCP/IP To RS-232/422/485 Converter
ATC-1200 - TCP/IP To RS-232/422/485 Converter
Product Images
ATC-1200 - TCP/IP To RS-232/422/485 Converter
$59.95
5.0 stars 5.0 (1) See customer reviews
SKU: GC-ATC-1200
MPN: ATC-1200
Manufacturer: ATC
Stock Status: In stock
Delivery: Ships same or next business day
Shipping is Free on orders over $75
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
The ATC-1200 is a cost effective and highly integrated Serial-to-Ethernet Converter. Embedding a 8-bit pipelined RISC, single cycle per instruction with maximum operating frequency of 100Mhz (100 MIPS), Embed 512KB Flash memory and 32KB SRAM for data memory. 10/100Mbps Ethernet and serial port support handshake RTS, CTS. ATC-1200 Can control 1 x RS232/422/485 devices located virtually anywhere (via Ethernet or Internet).
Automatically finds devices in the network Configuration over Driver Panels, serial Port, Telnet, WEB Browser, SNMP Automatic mode switching between Driver and RAW mode Support TCP/IP, UDP, DHCP, Support TCP, UDP, ICMP, IPv4, DHCP, BOOTP, ARP, DNS, SMTP, SNTP, uPNP, and HTTP in software.
Features
Features of the ATC-1200
- 3-in-1 RS-232/422/485 interface Max.921.6Kbps Serial interface and 10/100 Mbps Ethernet
- Supports 4- and 2-wire RS-422 and built-in terminator
- Supports industrial 12-24 VDC power input
- Terminal block accessories for easy RS-422/485 serial wiring
- Supports IP configuration by web browser
- Supports configuration store and copy for easy deployment
- Supports Driver, TCP Server/Client, UDP Server/Client, Pair Connection operation modes
- Easy and powerful configuration program
- Approval CE, FCC,RoHS
Documents and Drivers
Documentation |
|
|---|---|
| ATC-1200 Data Sheet | View (PDF) |
| ATC-1200 User Manual | View (PDF) |
| ATC-1200 Quick Start Guide | View (PDF) |
| ATC-1200 Technical Operation Document | View (PDF) |
Certificates |
|
|---|---|
| ATC-1200 FCC Certificate | View (PDF) |
| ATC-1200 EMC Certificate | View (PDF) |
| ATC-1200 ROHS Certificate | View (PDF) |
Specifications
CERTIFICATIONS
RoHS, CE, FCC
CONFIGURATION METHODS
Web Page, Windows Utility
CONNECTOR(S)
RS-232: DB-9 male
RS-422/485: 6-pin Terminal block
Network: 8-pin RJ-45
CPU
Embedding RISC CPU 100Mhz (100 MIPS)
DATA BITS
5,6,7,8 bits
DATA RATE
RS-232: 1200 ~ 115200bps
RS-422/485: 1200 ~ 921600bps
DIMENSIONS
Without Ears: 100 × 67 × 26 mm(3.94 × 2.64 × 1.02 in)
With Ears: 100 × 86 × 26 mm(3.94 × 3.39 × 1.02 in)
ENCLOSURE
Iron (1mm)
FLOW CONTROL
Software: Xon/Xoff
Hardware: RTS/CTS
INDICATORS LED
Ethernet link: 10/100 Base-TX Link & Activity Indicator
TXD: Date Transmitting from Ethernet to Serial
RXD: Date Transmitting from serial to Ethernet
Power: Power Indicator
INTERFACE(S)
Serial: RS-232/485/422 3 in 1
Network: Ethernet 10/100Mbps (Auto-Sensing)
ISOLATION
Built-in 1.5KV
MEMORY
32KB SRAM, 512KB Flash memory
MOUNTING
DIN-Rail Mounting
MPN
ATC-1200
NETWORKING STANDARDS
TCP, UDP, DHCP Client, HTTP Server, DNS Client, Telnet
OPERATING SYSTEM
Windows95/98/ME/NT/2000/XP/2003/WIN7/WIN8/WIN10
PARITY
Odd, Even, None
POWER SUPPLY
9~24VDC @1A
PRODUCT WEIGHT
0.5Kg
SECURITY/PROTECTION
600W for RS-232/422/485
STOP BITS
1,1.5,2 bits
TEMPERATURE RANGE
Operating Temp: -25ºC to 70ºC (-13ºF to 158ºF)
Storage Temp: -40ºC to 85ºC (-40ºF to 185ºF)
Humidity 5% to 95% (non-condensing)
