Home / ATLAS2 Plus - PROFINET & EtherNet/IP Monitoring Kit

This product is discontinued and no longer available.

ATLAS2 Plus - PROFINET & EtherNet/IP Monitoring Kit: No Display

Leave a review

SKU: GC-PN-ATLAS-2P-100-EIPPN-KIT

MPN: 101-800330

Manufacturer: PROCENTEC

Display Option

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

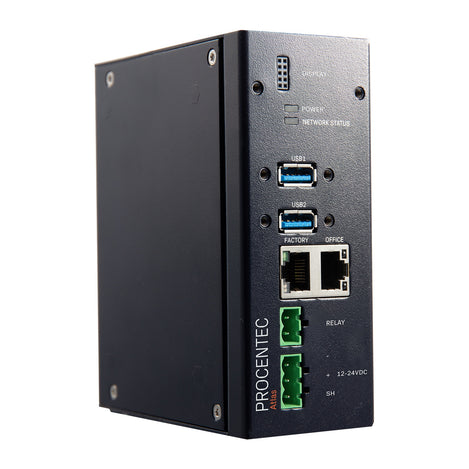

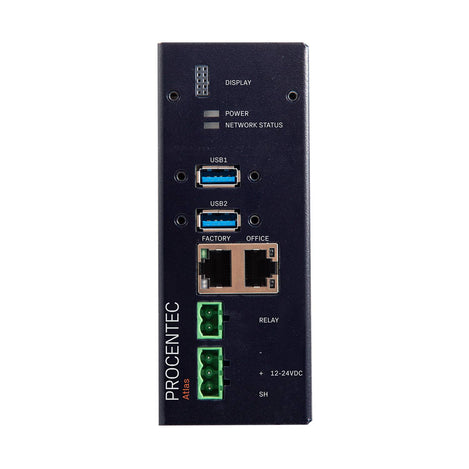

Atlas2 is designed for the permanent monitoring of PROFINET and EtherNet/IP networks with single or mixed architecture. This second-generation diagnostic tool, which is based on our popular Atlas unit, takes fault detection and diagnosis to a much higher level. Whether you’re using PROFINET or EtherNet/IP, you’ll discover that Atlas2 gives you a much more connected and predictive approach to machine health monitoring and maintenance. It still has all the original features that you’ve come to rely on to detect faulty installed devices, cable and firmware issues, and misconfigurations. But now it can recognize patterns in diagnostic data and learn from them, which gives you the ability to carry out predictive maintenance. Anticipating and preventing damaging network issues has never been so easy.

Order Summary



SKU

Display Option

Manufacturer Part # (MPN)
GC-PN-ATLAS-2P-100-EIPPN-KIT No Display 101-800330
GC-PN-ATLAS-2P-OLED-100-EIPPN-KIT OLED Display 101-800331

Features

  • Remote 24/7 monitoring for PROFINET or EtherNet/IP
  • Multiple versions of active and passive or active-only monitoring
  • Self-learning machine with predictive fault-finding capabilities
  • Dynamic graphical and hierarchical displays of a network’s topology
  • Scoring mechanism and traffic light alert system for simple insight
  • Optional LED display on the device itself for a quick overview

Documents and Drivers

Documentation

Atlas2 Plus Manual

Atlas2 Plus Brochure

Specifications

Certifications

CE, FCC

Connection Modes

Up to 20 concurrent web clients

Connector(s)

RJ-45

Dimensions

  • 130 x 52 x 117mm
  • Wire: max. AWG 14 (max area 2.5 mm 2 )
  • Ethernet Cable Length: max. 100 m

Display

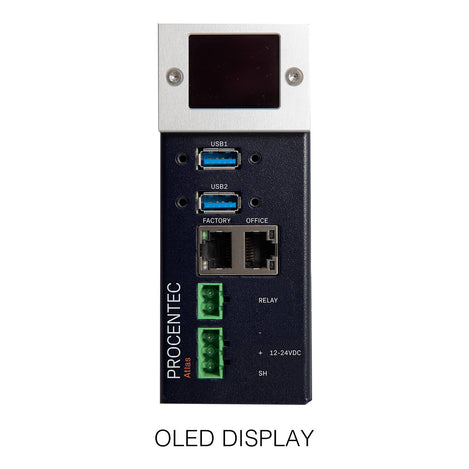

Optional OLED (PM-OLED 1,45 inch, 160RGBx128 Dots, 262 Colors)

Enclosure

IP20 (IEC/EN 60529, DIN 40 050)

Humidity

98%

Indicators LED

  • Green Power: Power Ok
  • Blue: During detection of available updates on USB
  • Green: All seem to be working correctly
  • Orange: A situation is present which is important but not serious, user attention recommended
  • Red: A serious problem is present in the network, user attention required

IP Addressing

  • Factory: 192.168.0.10
  • Office: 192.168.1.10

Memory

  • 4 GB LPDDR4
  • 16 GB eMMC storage

Mounting

35 mm (minimum width 65 mm)

MPN

101-800330, 101-800331

Ports

  • 2x USB3.0; Type A; 900mA per port (one used for Atlas2 TAP)
  • 1x USB2.0; Micro type B; 500mA (recovery channel)

Power

  • Nominal: 10 W
  • Maximum: 24W

Power Consumption

Max: 2A

Power Supply

  • Pin -: 0 V
  • Pin +: 12 to 24 VDC
  • Pin SH: Shield

Processor

  • NXP iMX8 QuadMax
  • Passive Cooling (Fanless)

Product Weight

510 grams (excluding plug-able connectors, packing material)

Protocols

  • Used: ARP, ICMP, DCP, SNMP, PROFINET I&M
  • Supported: OPC UA, MQTT, PROFINET (detect only), PROFINET I&M0, Modbus TCP (detect only), Ethernet/IP (detect only)

Push Buttons

  • Factory Reset
  • System Recovery

Temperature Range

  • Operating: -20ºC to 60ºC (-4ºF to 140ºF)
  • Storage: -20ºC to 60ºC (-4ºF to 185ºF)

Voltage

12 to 24 VDC
