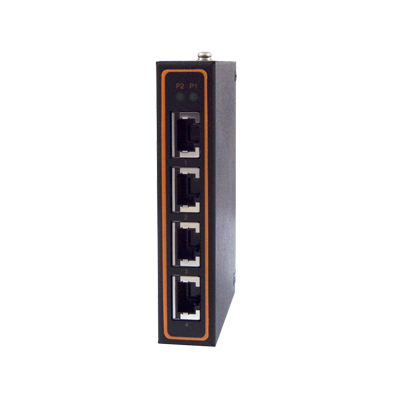

ATOP EH2304-PR - 4-Port Unmanaged Fast-Ethernet Switch, Profinet Connectors, Slim type
ATOP EH2304-PR - 4-Port Unmanaged Fast-Ethernet Switch, Profinet Connectors, Slim type
Product Images
ATOP EH2304-PR - 4-Port Unmanaged Fast-Ethernet Switch, Profinet Connectors, Slim type
$109.00
SKU: GC-ATOP-EH2304-PR
MPN: 1P1EH2304PR001G
Manufacturer: Atop Technologies Inc.
Stock Status: In stock
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
Compliant with CE, FCC, UL, and RoHSII standards, the EH2304-PR is a Fast Ethernet switch in a slim metal housing with 4 RJ-45 ports with Profinet connectors. It is designed to work in industrial environments and hazardous locations.
The EH2304-PR is protected from receiving over broadcast packets. During normal use, broadcast packets will be forwarded to all ports, except the source port. However, it will discard broadcast or multicast packets if the number of those packets exceeds a threshold in a preset period of time. When the preset period expires (about 800ms), it will then resume receiving broadcast or multicast packets until the threshold is reached again.
There are 2 redundant power inputs that can be connected simultaneously to wide-range DC power sources. If one of the power inputs fails, the another live source acts as an automatic backup to provide the EH2304-PR power.
Features
Technology
- 10/100BaseT(X) (RJ45)
- Broadcast storm protection
- Support IEEE 802.3/ 802.3u/ 802.3x
- 10/100M, Full/Half-Duplex, MDI/MDI-X auto-detection
Reliability
- Redundant dual DC power inputs
- Operating temperature ranges from -10°C ~ 70°C
- Rugged high-strength housing
- DIN-Rail or wall mounting ability
- Slim-size housing (EH2304-PR)
Documents and Drivers
Documentation
ATOP EH2304-PR Datasheet
EH23XX Hardware Installation Guide
ATOP Industrial Ethernet Switches Product Selection Guide
Specifications
Connector(s)
Removable 5-pin Terminal Block for power input
Dimensions
22.5mm x 110mm x 78mm
Housing
IP30 protection, SECC, Black
Humidity
5%~95% non-condensing
Indicators LED
Power, 10/100M
Input/Output
9 ~ 30 VDC, Dual inputs
Interface(s)
RJ-45 Ports: 10/100BaseT(X) auto negotiation speed, Full/Half-duplex mode, and auto MDI/MDI-X connection
MPN
1P1EH2304PR001G
Power Consumption
EH2308-PR 6.4 Watts Max. / EH2304-PR 4.0 Watts Max.
Product Weight
320g
Temperature Range
- Operating: -10°C to +70°C (-14°F to +158°F)
- Storage: -40°C to +85°C (-40°F to +185°F)
