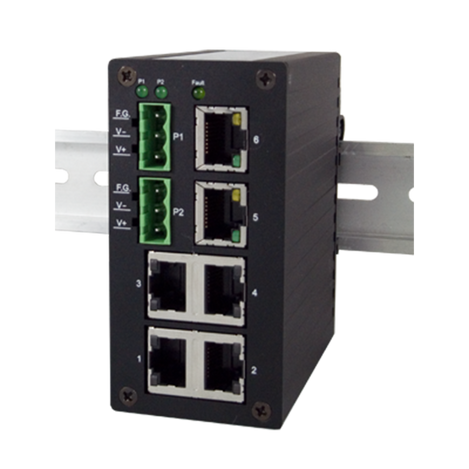

ATOP EH2306 - 6-port Fast-Ethernet DIN-Rail Switch


Leave a review


MPN: 1P1EH230600001G

Manufacturer: Atop Technologies Inc.

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the US

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

This Fast-Ethernet EH2306 with 6 RJ-45 ports has a metal housing and is designed to work in the industrial environment, such as in hazardous locations, where it complies with CE, FCC, UL and RoHS standards.

The EH2306 protects itself from receiving too many broadcast packets. During normal use, broadcast packets will be forwarded to all ports except the source port. However, it will discard broadcast or multicast packets if the number of those packets exceeds a threshold in a preset period of time. When the preset period expires (about 800ms), it will then resume receiving broadcast or multicast packets until the threshold is reached again.

The EH2306 provides two redundant power inputs that can be connectedsimultaneously to wide-range DC power sources. If one of the power inputs failure, the other live source acts as a backup to provide the EH2306 the power it needs automatically.



  • 10/100BaseT(X) (RJ45)
  • Broadcast storm protection
  • Support IEEE 802.3/ 802.3u/ 802.3x
  • 10/100M, Full/Half-Duplex, MDI/MDI-X auto-detection


  • Redundant dual DC power inputs
  • Operating temperature ranges from -10~70°C
  • Rugged high-strength housing
  • DIN-Rail or wall mounting ability

Documents and Drivers


Atop EH2306 6-Port Unmanaged Fast Ethernet Switch Datasheet

Atop EH2306 6-Port Unmanaged Fast Ethernet Switch Hardware Installation Guide

ATOP Industrial Ethernet Switches Product Selection Guide



  • Ethernet: RJ-45 x 6
  • Power: Dual 3-pin 5.08mm pitch Terminal block


45.2mm x 90mm x 78mm


5%~95% RH






Input: DC 9 ~ 30V

Power Consumption

5.4 Watts Max

Product Weight


Temperature Range

  • Operating: -10°C to 70°C (14ºF to 158ºF)
  • Storage: -40ºC to 85ºC (-40ºF to 185ºF)

Transmission Speed
