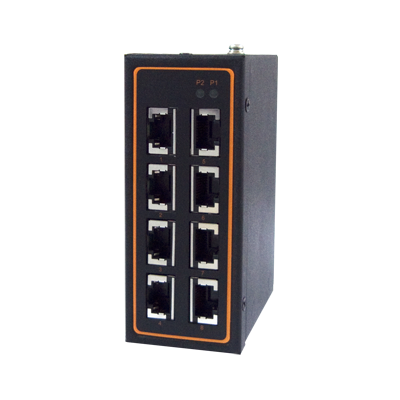

ATOP EH2308-PR - Industrial 8-Port Fast-Ethernet Switch, Profinet Connectors

$162.00

Leave a review

SKU: GC-ATOP-EH2308-PR

MPN: 1P1EH2308PR001G

Manufacturer: Atop Technologies Inc.

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the continental US

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The EH2308-PR switch has 8 RJ-45 ports for industrial applications and is compliant with CE, FCC, UL, and RoHSII standards. The switch is specifically designed to work in industrial environment and even in hazardous locations

EH2308-PR has protection from receiving over broadcast packets. During normal use, broadcast packets are forwarded to all ports, except the source port. However, it will discard broadcast or multicast packets if the number of those packets exceeds a threshold in a preset period of time. When the preset period expires (about 800ms), it will then resume receiving broadcast or multicast packets until the threshold is reached again.

There are 2 redundant power inputs that can be connected simultaneously to wide-range DC power sources. If one of the power inputs fails, the other live source acts as a backup to provide the EH2308-PR power automatically.

Features

Technology

  • 10/100BaseT(X) (RJ45)
  • Broadcast storm protection
  • Support IEEE 802.3/ 802.3u/ 802.3x
  • 10/100M, Full/Half-Duplex, MDI/MDI-X auto-detection
  • Support 802.1Q/p QoS, prioritizing critical packets such as PROFINET packets


Reliability

  • Redundant dual DC power inputs
  • Operating temperature ranges from -10°C ~ 70°C (14°F ~ 158°F)
  • Rugged high-strength housing
  • DIN-Rail or wall mounting ability

Documents and Drivers

Documentation

ATOP EH2308-PR Datasheet

EH23XX Hardware Installation Guide

ATOP Industrial Ethernet Switches Product Selection Guide

Specifications

Connector(s)

Removable 5-pin Terminal Block for power input

Dimensions

45.3mm x 110mm x 89.6mm

Housing

IP30 protection, SECC, Black

Humidity

5%~95% non-condensing

Indicators LED

Power, 10/100M

Input/Output

9 ~ 30 VDC, Dual inputs

Interface(s)

RJ-45 Ports: 10/100BaseT(X) auto negotiation speed, Full/Half-duplex mode, and auto MDI/MDI-X connection

MPN

1P1EH2308PR001G

Power Consumption

EH2308-PR 6.4 Watts Max. / EH2304-PR 4.0 Watts Max

Product Weight

460g

Temperature Range

  • Operating: -10°C to 70°C (-14°F to +158°F)
  • Storage: -40°C to +85°C (-40°F to +185°F)
