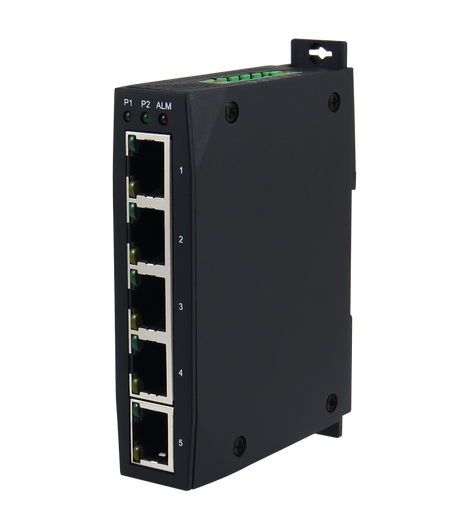

ATOP EH3005 - Unmanaged Fast Ethernet Switch, 5-Port, Slim-Type


Leave a review


MPN: 1P1EH300500001G

Manufacturer: ATOP Technologies

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

EH3005 with 5 RJ-45 ports for your industrial applications. Designed to work in the industrial environment, it complies with with CE, FCC and UL standards. The slim design is useful for the application with limited cabinet space.

EH3005 provides two redundant power inputs that can be connected simultaneously to wide-range DC power sources. If one of the power inputs failure, the other live source acts as a backup to provide the EH3005 with power automatically.


  • 5 x 10/100 BaseT(X) RJ45 port
  • Broadcast storm protection
  • Support IEEE802.3/802.3u/802.3x
  • Support 802.1q/p for VLAN tagging and class of service
  • Auto MDI/MDI-X
  • Redundant DC power inputs
  • Operation temperature from -40 to 70 °C
  • DIN-Rail mounting
  • Slim type, plastic housing

Documents and Drivers


ATOP EH3005 - Unmanaged Fast Ethernet Switch Datasheet

ATOP EH3005 - Unmanaged Fast Ethernet Switch Hardware Installation Guide



Lockable 5-pin terminal blocks for power input


Slim type, 23mm x 94mm x 72mm


IP30 protection, Plastic, Black


5 to 95%, 55°C (non-condensing)

Indicators LED

PWR1, PWR2, Alarm, ALM, LAN

Input Voltage

Dual Input Voltage: 12 - 48 VDC





Temperature Range

  • Operating: -40 to 70°C (-40°F to 158°F)
  • Storage: -40 to 85°C (-40°F to 185°F)
