ATOP EH7508 - 8-Port Industrial Managed Ethernet Gigabit Switch, PoE, Profinet certified
ATOP EH7508 - 8-Port Industrial Managed Ethernet Gigabit Switch, PoE, Profinet certified

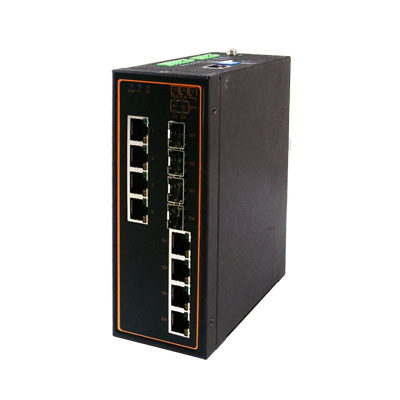

Product Images
ATOP EH7508 - 8-Port Industrial Managed Ethernet Gigabit Switch, PoE, Profinet certified: No PoE
$829.00
SKU: GC-ATOP-EH7508-4G-4SFP
MPN: 1P1EH750800002G
Manufacturer: Atop Technologies Inc.
PoE Ports
-
$829.00
-
$889.00
We Have You Covered
Product Information
Product Description
The EH7508 switches are rugged, highly reliable and fault-tolerant Industrial Managed Ethernet Switch. Comes equipped with 4 10/100 BASE-T(X) RJ-45 ports and four Giga combo ports.
With a high performance switching capacity, its network redundant self-recovery mechanism is less than 20ms on full load. This capability allows you to scheme a reliable Ethernet network by building a redundant ring topology as your back-up solution.
The multifunctional web dashboard offers intelligent features such as Quality of service (QoS), Virtual LAN (VLAN), IGMP, Port mirroring and security. To prevent network intrusions, it is necessary to have a good accessing control mechanism that can identify, authenticate and authorize users. The EH7508 supports user account, password policy, and authentication interface management functions that comply with IEC62443 standard.
There is a 5-pin terminal block to provide dual redundant power inputs with Reverse Polarity Protection and two sets of relay which allows field engineers to build up a stand-alone fault alarm system. The IP30 housing, wide operating temperature of -20 to 70°C ,and DIN-Rail mounting capacities are able to do most industrial field applications.
Being Profinet CC-B v2.33 certified, these switches are automation and IoT ready. Profinet allows wired and wireless combinations for an array of connectivity options, providing a more effective backbone for your automation operations.
Order Summary
SKU |
Ethernet |
PoE Ports
|
SFP Ports |
Manufacturer Part # (MPN) |
|---|---|---|---|---|
| GC-ATOP-EH7508-4G-4SFP | 4 | 0 |
4 | 1P1EH750800002G |
| GC-ATOP-EH7508-4G-4POE-4SFP | 4 | 4 |
4 | 1P1EH750800001G |
Features
- Up to 8 10/100 BASE-T(X) ports and 4 10/100/1000 BASE-T(X) Combo ports
- Up to 8 802.3af or 802.3at compliant PoE ports
- ERPS Ring (recovery time < 20ms @ 40 switches), STP/RSTP for network redundancy
- Remote management over Web browser, Telnet console, serial console, and Windows Utility
- CE/FCC/UL and NEMA TS-2 for Traffic control applications certified
- Profinet CC-B v2.33 certified and GSDML file provided
- Security features based on IEC62443-4-2
Documents and Drivers
Documentation
ATOP EH7508 - 8-Port Industrial Managed Fast-Ethernet Gigabit Switch Datasheet
ATOP EH7508 - 8-Port Industrial Managed Fast-Ethernet Gigabit Switch Hardware Installation Guide
ATOP EH7508 - 8-Port Industrial Managed Fast-Ethernet Gigabit Switch User Manual
ATOP Industrial Ethernet Switches Product Selection Guide
Specifications
Connector(s)
Removable 5-pin Terminal Block for power input

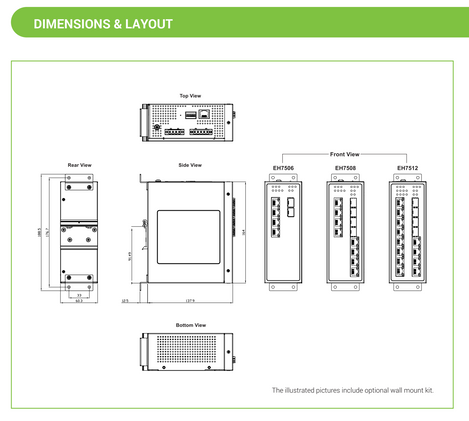

Dimensions
60.3mm x 137.9mm x 164mm
High Power Relay Output
2 relay outputs with current carrying capacity of 2A @30VDC
Housing
IP30 protection, metal housing
Humidity
5%~95%, 55°C (Non-condensing)
Indicators LED
PWR1, PWR2, Alarm, Run, Ring, Ring Master, RJ-45 Link/Speed, SFP Link, PoE
Input Current
- Max. 1.5A @ 18VAC
- Max. 2.0A @ 9VDC (without PD)
- Max. 3.2A @ 45VDC (Support up to 8 ports at 15.4W per PoE port)
- Max. 5.5A @ 51VDC (Support up to 8 ports at 30W per PoE port)
Input Voltage
- 9-48 VDC or 18~30VAC for Non-PoE models
- 45-57 VDC for 802.3af mode
- 51-57 VDC for 802.3at mode
Mounting
DIN-Rail, Wall Mount
MPN
1P1EH750800002G, 1P1EH750800001G
POrts
- RJ45 Ports: 10/100/1000BASE-T(X) or 10/100 BASE-T(X) auto negotiation speed
- Fiber Ports: 100BASE-FX / 1000BASE-X SFP slot
Product Weight
Approx 1.2 kg (Max.)
Switch Option
Ring Control
Temperature Range
- Operating: -20°C~70°C (-4°F~158°F)
- Storage: -40°C~85°C (-40°F~185°F)
