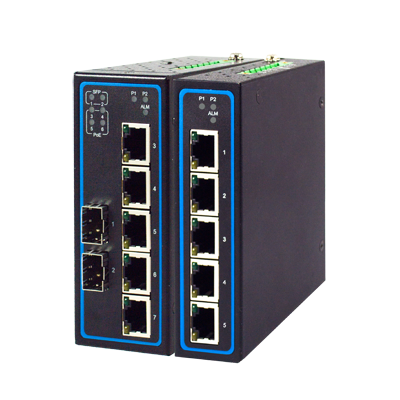

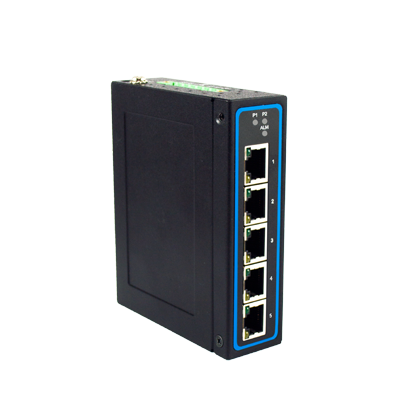

ATOP EHG7305 - 5-port Industrial Gigabit Ethernet Switches, PoE: No PoE

$199.00

Leave a review

SKU: GC-ATOP-EHG7305

MPN: 1P1EHG73050001G

Manufacturer: Atop Technologies Inc.

Delivery: Ships within 6-7 weeks
Qualifies for Free shipping to the US

PoE Ports

We Have You Covered

Price Match delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

The EHG7305 is a 5-Port Gigabit Ethernet Switch with a PoE option. Designed to work in mission critical environments such as mining and heavy industry, it supports maximum 5 x 10/100/1000 Base-T(X) RJ45 ports, and 1 x 100/1000 Base-F(x) SFP port . With its non-blocking switching capacity and high performance, the EHG7305 is able to fulfill the increasing demand in industrial networking.

The PoE capability of 30W per port up to 4 ports simplifies the wiring in complex fields, where every cable is an added cost. The equipped terminal block provides dual redundant power inputs with Reverse Polarity Protection, and relay output which allows field engineers to build up a fault alarm system.

It has an IP30 rated housing protection, wide operating temperature of -40 to 70°C and DIN-Rail mounting capacities.

Order Summary



SKU

Ethernet

PoE Ports

Manufacturer Part # (MPN)
GC-ATOP-EHG7305 5 10/100/1000 0
 1P1EHG73050001G
GC-ATOP-EHG7305-4POE 5 10/100/1000 4 1P1EHG73050002G

Features

  • EHG7305 s supports maximum 5 x 10/100/1000 Base-T(X) RJ45 ports
  • Up to 4 802.3af or 802.3at compliant PoE ports
  • Support 10K Jumbo frames
  • Supports 802.3az Energy Efficient Ethernet for power savings
  • Works from -40°C~70°C
  • Failed power input alarm contact
  • Certified by UL 61010-2-201 and UL C1D2/ATEX Zone 2
  • EN50155 / EN50121-4 certified for Railway and Trackside applications

Documents and Drivers

Documentation

ATOP EHG7305 Switch Datasheet

ATOP EHG7305 Switch Hardware Installation Guide

ATOP Industrial Ethernet Switches Product Selection Guide

Specifications

Connector(s)

Terminal Block

Dimensions

32 x 90 x 110 mm

Flow Control

Back pressure and pause frame-based flow control schemes

High Power Relay Outlet

24 V / 0.5A

Housing

IP30 protection according to EN 60529

Humidity

5%~95%, 55°C (Non-condensing)

Indicators LED

PWR1, PWR2, Alarm, RJ45 Act/Link, SFP Link, PoE

Input Current

0.5A @ 12 V

Input Voltage

12-52 VDC

Mounting

DIN-rail or wall-mount

MPN

1P1EHG73050001G, 1P1EHG73050002G

Power Consumption

Max: 6 W

Product Weight

420g

Temperature Range

  • Operating: -40°C~70°C (-40°F~158°F)
  • Storage: -40°C~85°C (-40°F~185°F)
