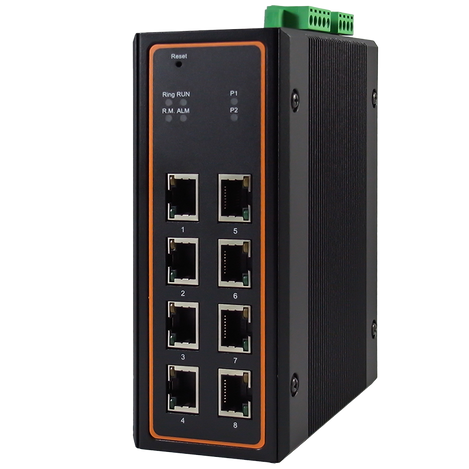

ATOP EHG7508 - 8-Port Industrial Managed Gigabit Switches, Profinet certified: Non POE

$819.00

Leave a review

SKU: GC-ATOP-EHG7508

MPN: 1P1EHG75080002G

Manufacturer: Atop Technologies Inc.

Delivery: Ships in 1 - 2 weeks
Qualifies for Free shipping to the US

Switch Options

Product Information

Product Description

Authorized North America Distributor Stamp

The EHG7508 Series is an Industrial Grade Managed Gigabit Ethernet Switch and has a PoE option. Designed to provide a highly reliable, fault-tolerant, extremely fast network connection in a harsh environment, there are 2 terminal blocks to provide dual redundant power inputs with Reverse Polarity Protection; it also allows field engineers to build up a stand-alone fault alarm system.

These switches are UL, CE, FCC and NEMA TS-2 certified, allowing them to be used in Traffic Control Applications. They are fully EN50155-certified for today’s demanding railway applications, as well as complying with essential sections of EN50121-4 for ground equipment.

Within its compact DIN-Rail housing design, the EHG7508 series allows you to choose between different port combinations.

  • 10/100/1000 BASE-T(X) RJ45 port
  • 1000 BASE-X SFP port
  • IEEE 802.3af/at compliant PoE RJ45 port provides up to 240W power.

These switches are designed for setting up a reliable network environment with intelligent features and keeping equipment connected all the time, even in case of temporary network breakdowns through RSTP, ERPS Rings and MRP (client) redundancy.

Supporting multiple Compatible Rings, these switches are the best choice for painless enhancement of an existing infrastructure that doesn’t jeopardize network Topology and existing working pattern. To prevent network intrusions, there is a good accessing control mechanism that can identify, authenticate and authorize users.

User account, password policy, and authentication interface management functions comply with the IEC62443 standard are supported.

Being Profinet CC-B v2.33 certified, these switches are Automation and IoT ready. Profinet allows wired combinations for an array of connectivity options, providing a more effective backbone for your automation operations.


Order Summary

SKU

RJ45 (NON-POE)

RJ45 (POE)

SFP

Manufacturer Part # (MPN)

GC-ATOP-EHG7508 8
0
0
1P1EHG75080002G
GC-ATOP-EHG7508-8POE 0
8
0 1P1EHG75080003G
GC-ATOP-EHG7508-4SFP 4
0
4
1P1EHG75080004G
GC-ATOP-EHG7508-4POE-4SFP 0
4
4
1P1EHG75080001G

Features

  • Up to 8 10/100/1000 BASE-T(X) RJ45 ports or 1000 BASE-X SFP slots
  • Up to 8 802.3af/ 802.3at Power over Ethernet ports, with maximum 30W PoE power per port and maximum 240 W device power budget
  • Powerful Switching Platform, supporting Redundancy advanced Protocols, such as ERPS, RSTP, STP, MRP (Manager/Client) and compatible rings
  • Profinet CC-B v2.33 certified and GSDML file provided
  • IEEE 1588v2 Precision Time Protocol Hw-Based Transparent clock
  • CE/FCC/UL and NEMA TS-2 Certified for Traffic Control Applications
  • EN50155 / EN50121-4 certified for Railway and Trackside applications
  • Works from -20°C~70°C
  • Security features based on IEC62443-4-2

Documents and Drivers

Documentation

ATOP EHG7508 Series - 8-Port Industrial Managed Gigabit PoE Switch Datasheet

ATOP EHG7508 Series - 8-Port Industrial Managed Gigabit PoE Switch Hardware Installation Guide

ATOP Industrial Ethernet Switches Product Selection Guide

Specifications

Connector(s)

5-Pin 5.08mm Lockable Terminal Block

Dimensions

54 x 113 x 145 mm

High Power Relay Output

2 relay outputs with current carrying capacity of 1A @ 24 VDC

Housing

IP30 aluminum housing

Humidity

5% to 95%, 55°C (Non-condensing)

Indicators LED

PWR1, PWR2, Alarm, Run, Ring, Ring Master, RJ-45 Link/Speed, SFP Link, PoE

Input Current

  • Max. 1.4A @ 9VDC (without PoE)
  • Max. 2.9A @ 45VDC (Support up to 8 ports at 15.4W per PoE port)
  • Max. 5.0A @ 51VDC (Support up to 8 ports at 30W per PoE port)

Input Voltage

  • 9-57 VDC for Non-PoE models
  • 45-57 VDC for 802.3af mode
  • 51-57 VDC for 802.3at mode

Mounting

DIN-Rail , Wall mount (optional kit)

MPN

1P1EHG75080002G,1P1EHG75080003G, 1P1EHG75080004G, 1P1EHG75080001G

Ports

  • RJ45 Ports: Up to 8 10/100/1000BASE-T(X) auto negotiation speed
  • Fiber Optics Ports: Up to 4 1000BASE-X SFP slot

Power Consumption

  • Max 12.6 W @9 VDC (without PoE)
  • Max 130.5 W @45VDC (802.3af, with 15.4W PoE per port for 8 ports)
  • Max 255 W @51VDC (802.3at, with 30W PoE per port for 8 ports)

Product Weight

800g

Protocols

IPv4, IPv6, IGMPv1/v2/v3, IGMP Snooping, GARP, GMRP, GVRP, SNMPv1/v2c/ v3, SNMP Inform, ICMP, Telnet, SSH, Client/IP-port-mapping, BootP, TFTP, SMTP, SMTP (Gmail), RMON, HTTP, HTTPS, Syslog, MRP (Manager/Client), LLDP, 802.1x, EAP,RADIUS, TACACS+, Mirror port, QoS, ACL, ITU-T G.8032 ERPS Ring, STP, RSTP, MSTP, Compatible Ring/Chain, U-Ring, NTP Server/ Client, Serial Console,Modbus/TCP, IEEE 1588 PTP V1/V2,UDLD, Security, PoE, Trunk, LACP, MLD, 802.1Q VLAN, Port-Based VLAN, MAC-Based VLAN, IP-Subnet-Based VLAN, Protocol-Based VLAN, QinQ, 802.1x, ARP spoof Prevention, DHCP snooping, IP source Guard, Dynamic ARP Inspection, Profinet, DHCP relay Agent, Voice VLAN, sFlow, PoE continue

Temperature Range

  • Operating: -20°C to +70°C (-4°F to +158°F)
  • Storage: -40°C to +85°C (-40°F to +185°F)
