ATOP EMG8510 Industrial switch - IP67 10 port Managed Gbit 2SFP, M12, PoE, HV: No PoE

$2,150.00

Leave a review

SKU: GC-ATOP-EMG8510-2SFP

MPN: 1P1EMG85100001G

Manufacturer: Atop Technologies Inc.

Delivery: Ships within 6-7 weeks
Qualifies for Free shipping to the continental US

PoE & High Voltage Options

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

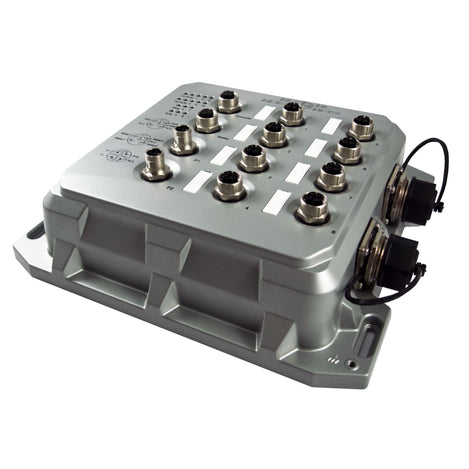

The ATOP EMG8510 is an IP67-rated, railway-compliant Gigabit Ethernet switch designed for high-speed connectivity in wayside and on-board railway deployments. Its rugged aluminum enclosure provides reliable protection for internal components across a wide range of operating environments.

Power over Ethernet (PoE) Eight M12 Gigabit ports support IEEE 802.3af/at PoE, delivering up to 30 W per port with a total power budget of 240 W. PoE simplifies infrastructure in locations where running additional cabling is impractical, hazardous, or cost-prohibitive. The EMG8510 is well-suited for both on-board and wayside surveillance systems.

Fiber Uplink Two Gigabit SFP slots enable direct fiber-optic connections to the network backbone, eliminating the need for copper repeaters and ensuring signal integrity over long distances.

Redundant Power Input The EMG8510 features a dual-input redundant power supply to maximize uptime and reduce single points of failure. Models are available in two input voltage ranges: low-voltage DC (12–57 VDC; 47–57 VDC for PoE variants) and high-voltage DC (50–145 VDC). Each power module connects via an S-coded M12 connector and includes a relay output for fault alarm integration.

Cybersecurity & Access Control To protect against unauthorized network access, the EMG8510 implements user account management, password policy enforcement, and authentication controls in compliance with IEC 62443.

Environmental Specifications With IP67 ingress protection, an operating temperature range of -40°C ~ 70°C (-40°F ~ 158°F), the EMG8510 is designed for deployment in harsh railway and industrial environments.

Order Options

SKU POE ports Manufacturer Part # (MPN)
GC-ATOP-EMG8510-2SFP No PoE 1P1EMG85100001G
GC-ATOP-EMG8510-2SFP With High Voltage (No POE) 1P1EMG85100004G
GC-ATOP-EMG8510-4POE-2SFP 4 PoE 1P1EMG85100002G
GC-ATOP-EMG8510-8POE-2SFP 8 PoE 1P1EMG85100003G

Features

  • 8 x 10/100/1000 BASE-T(X) ports, M12 connector and 2 x 1000 SFP slots
  • Up to 8 x 802.3af or 802.3at complaint PoE ports providing maximum 240W PoE power budget
  • EN50155, EN50121-4, IEC60571, EN45545-2 and UL 61010-2-201 certified
  • Redundant power input, DC or High Voltage DC
  • Ruggedized IP67 aluminum enclosure
  • Works from -40°C~70°C
  • 2x Relay outputs, 5-pin M12 A-Coding
  • Security features based on IEC62443-4-2

Documents and Drivers

Documentation

EMG8510 Datasheet

EMG8510 Hardware Installation Guide

EMG8510 User Guide

Specifications

SWITCH PROPERTIES

Priority Queues

8

VLAN Table

4096

MAC-Based VLAN

512

VLAN ID Range

VID 1 to 4,096

Trunk Group

4

Static IGMP Groups

128

Dynamic IGMP Groups

256

MAC Table Size

16k

Packet Buffer Size

1.5 MB

Jumbo Frame

9216 Byte

ETHERNET

Standards

IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X); IEEE 802.3ab for 1000BaseT(X); IEEE 802.3z for 1000BaseX; IEEE 802.3af / 802.3at for Power over Ethernet; IEEE 802.3x for Flow Control, back pressure flow control; IEEE 802.1d-2004 for Spanning Tree Protocol; IEEE 802.1w for Rapid Spanning Tree Protocol; IEEE 802.1s for Multiple Spanning Tree Protocol; IEEE 802.1Q for VLAN Tagging; IEEE 802.1p for Class of Service; IEEE 802.1X for Authentication; IEEE 802.3ad for Port Trunk with LACP; IEEE 802.3az for Energy Efficient Ethernet

Protocols

IPv4, IPv6, IGMPv1/v2/v3, IGMP Snooping, GARP, GMRP, GVRP, SNMPv1/v2c/v3, SNMP Inform, ICMP, Telnet, SSH, DHCP Server/Relay/Client, DHCP Option 66/67/82, BootP, RARP, TFTP, NTP Server/Client, SNTP, SMTP, SMTP (Gmail), RMON, HTTP, HTTPS, Syslog, MRP (Client), LLDP, IEEE 1588 PTP V1/V2, IEEE 1588 Hardware Transparent Clock, 802.1x, EAP, RADIUS, TACACS+, Mirror port, QoS, ACL, Serial Console, U-Ring, ITU-T G.8032 ERPS Ring, STP, RSTP, MSTP, Compatible Ring, Voice VLAN, sFlow, PoE continue

Redundancy

ITU-T G.8032 ERPS, STP, RSTP, MSTP, MRP(Manager/Client), Compatible Ring/Chain, U-Ring

Automation Profiles

Modbus/TCP status registers

SNMP MIB

MIB II, IF-MIB, SNMPv2 MIB, BRIDGE-MIB, RMON MIB Group 1,2,3,9, RFC 1157, RFC 1213, RFC 1215, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2571, RFC 2742, RFC 2819, RFC 2863, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 2674

POWER

Input Voltage

50~145 VDC for High voltage product; 12~57 VDC for Non-PoE models; 45~57 VDC for 802.3af mode / 51~57 VDC for 802.3at mode

Input Current/Power (System)

50 ~ 145 VDC, 0.30A max., 15.0W (For High voltage Models); 12 ~ 57 VAC, 1.19A max., 14.28W (For Non-PoE Models)

Input Current (with PoE full loading)

45 ~ 57 VDC, 3.08A max., 138.6W (PoE 802.3af Mode, 8-ports); 51 ~ 57 VDC, 5.03A max., 256.53W (PoE 802.3at Mode, 8-ports)

Power Input

2 x S-Coding M12 connectors (4 Pin)

Reverse Polarity Protection

Yes

INTERFACES

Ethernet Ports

8 x 10/100/1000BASE-T(X) auto negotiation speed - M12 connector

Fiber Optics Ports

2 x 1000Base-X SFP slots

Console

RS232 (A-coding M12 connector)

LED Indicators

PWR1, PWR2, Alarm, Ethernet Act/Link, SFP Link, PoE, Ring

Relay Output

2 relay outputs with current carrying capacity of 1A @ 24 VDC (through A-coding M12 connector)

PHYSICAL CHARACTERISTICS

Housing

IP67 protection according to EN 60529

Dimension (W x H x D)

216 x 232 x 72 mm (0.2 x 0.25 x 0.08 in)

Weight

2 kg (4.4 lbs)

Installation

Wall-mount (Optional Din-Rail Kit)

ENVIRONMENTAL LIMITS

Operating Temperature

-40°C to +70°C (-40°F to +158°F)

Storage Temperature

-40°C~85°C (-40°F~185°F)

Ambient Relative Humidity

5%~95%, 55°C (Non-condensing)
