CAN bus cable J1939 Type 2 connector - 2 meter

$39.00

Leave a review

SKU: GC-CAN-CAB-J1939-T2-2M-GC

MPN: 62767-02

Manufacturer: Grid Connect Inc.

Stock Status: In stock

Delivery: Ships same or next business day
Free shipping to the continental US on orders over $100

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

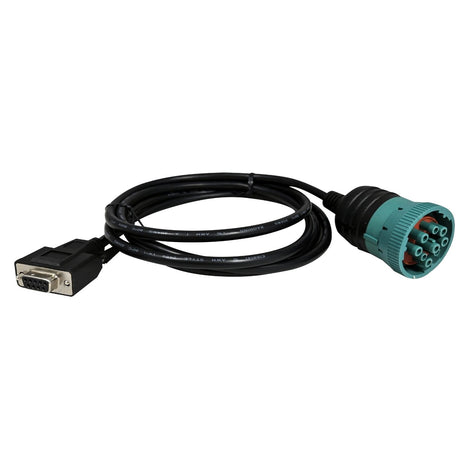

The J1939 (Type 2) Deutsch to DB9 female CAN cable is designed to provide a direct interface between the SAE J1939 vehicle network and CAN-based diagnostic or data-logging devices. This cable connects to the 9-pin Deutsch diagnostic connector commonly found in heavy-duty vehicles and converts it to a standard DB9 CAN interface, enabling communication with CAN tools, adapters, or loggers.

This cable provides a convenient method to access that CAN network directly, allowing engineers, technicians, and fleet operators to connect monitoring equipment or diagnostic tools to the vehicle's communication bus.

DB9-CAT adapter pinout


Typical Applications



Suited for use in most heavy duty vehicles including the following.

  • Heavy-duty rucks
  • Transit and city buses
  • Excavators and construction machinery
  • Caterpillar vehicles and engines
  • Mining and industrial equipment


Common Use Cases



Vehicle Diagnostics

Technicians can connect diagnostic software or scan tools to retrieve fault codes, sensor readings, and ECU data from systems such as the engine, transmission, and braking modules.

CAN Data Logging

Engineers and fleet managers can connect CAN data loggers to record real-time vehicle data for analysis, testing, or telematics solutions.

Fleet Telematics

The cable allows integration of telematics systems that monitor fuel consumption, engine performance, and vehicle health across a fleet.


Features

  • HEAVY DUTY: Fits most trucks, buses & other heavy duty vehicles
  • STANDARD DB9: Fits CAN loggers & all adapters (CiA 303-1 DB9 pinouts)
  • OVERMOLDED: Quality over mold ensures top flexibility & durability
  • SOLID CABLES: Rugged quality 2m cable with 22 AWG (0.5 mm2) thickness

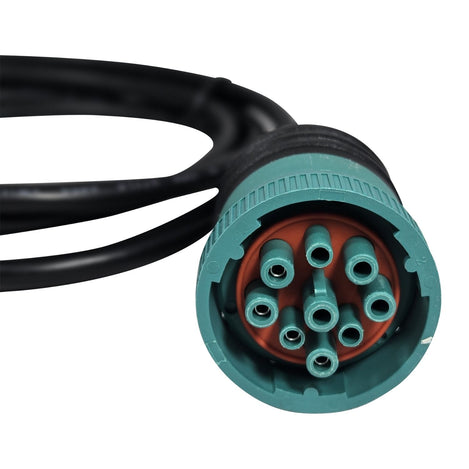

  • TYPE II: Type II connector is compatible with both old/new vehicles

Specifications

CAN bus

High speed (ISO 11898-2)

Connectors

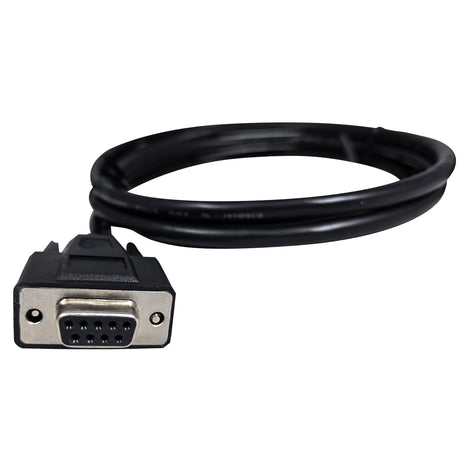

9-pin D-sub (DB9) female to J1939 9-pin (female)

Adapter DB9 pins

In accordance with CiA 303-1

Cable length

2 meters (6.56 feet)

Cable thickness

22 AWG (0.50 mm2)

Weight

250 g (0.55 lb)

Temperature

-20°C to + 80°C (-4°F to +176°F)
