CAN bus cable ODB2 connector - 2 meter DB9 OBD2
CAN bus cable ODB2 connector - 2 meter DB9 OBD2
Product Images
CAN bus cable ODB2 connector - 2 meter DB9 OBD2
$32.00
SKU: GC-CAN-CAB-OBD2-2M-GC
MPN: GC-CAN-CAB-OBD2-2M-GC
Manufacturer: Grid Connect Inc.
Stock Status: In stock
Delivery: Ships same or next business day
Free shipping to the continental US on orders over $100
We Have You Covered
Skip To Footer
Product Information
Product Description

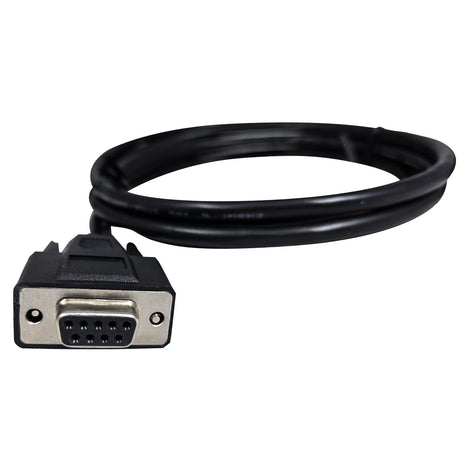

Connect directly to CAN bus with this Type2 ODB2 connector cable suited for use in most heavy duty vehicles and passenger vehicles. The DB9 female to ODB2 connector cable is used in many Caterpillar vehicles.
Example heavy duty vehicles
- Trucks
- Transit buses
- Excavators
- Construction machinery
Example passenger vehicles
- Cars
- Taxis
- Light duty vehicles
Adapter pinout information
| DB9 | Function | OBD2 |
|---|---|---|
| 1 | N/C | |
| 2 | CAN-L | 14 |
| 3 | GND | 4 |
| 4 | N/C | |
| 5 | N/C | |
| 6 | N/C | |
| 7 | CAN-H | 6 |
| 8 | N/C | |
| 9 | VCC | 16 |
Pinout Diagram
Features
- MARINE: Suitable for NMEA 2000® maritime applications (boats, ships)
- CANOPEN: Suitable for CANopen applications (e.g. machinery)
- OVERMOLDED: Quality over mold ensures top flexibility & durability
- SOLID CABLES: Rugged quality 2m cable with 22 AWG (0.5 mm2) thickness
- STANDARD DB9: Fits CAN loggers & all adapters (CiA 303-1 DB9 pinouts)
Documents and Drivers
Documentation
Compare CAN to OBD2 Cables
Specifications
Connectors

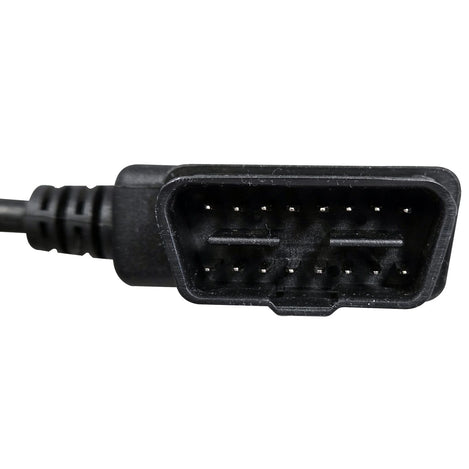

9-pin D-sub (DB9) female to 16-pin OBD-2 Male Connector
Adapter DB9 pins
In accordance with CiA 303-1
Cable length
2 meter
Cable thickness
22 AWG (0.50 mm2)
Weight
200 g (0.44 lb)
Temperature
-20°C to + 80°C (-4°F to +176°F)
