CAN FD to LAN Ethernet Gateway - PCAN IPEH-004012

$729.00

Leave a review

SKU: GC-CAN-ENET-GW-FD

MPN: IPEH-004012

Manufacturer: PEAK-System

Stock Status: Out of Stock

Delivery: This item is currently out of stock due to part shortage.
No estimated ship date.
Qualifies for Free shipping

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

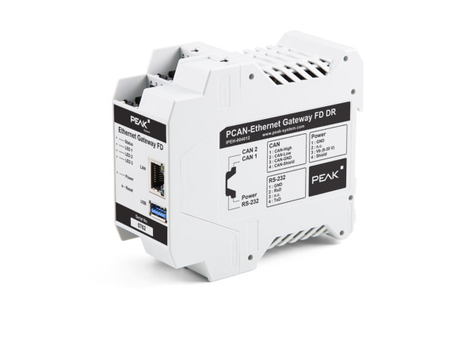

The PCAN-Ethernet Gateway FD DR allows access to classic CAN or modern CAN FD buses via an IP network. On top of that, CAN buses can be connected to each other via IP using multiple devices. CAN frames are wrapped in TCP or UDP message packets and then forwarded via the IP network from one device to another.

The PCAN-Ethernet Gateway FD DR provides a LAN interface and two CAN FD interfaces that allow bit rates up to 10 Mbit/s. For this, an AM5716 Sitara processor provides the needed performance.

Configuration is via a convenient web interface. Alternatively, the JSON interface allows access via software. Both options provide status information and settings of the devices, the various communication interfaces, message forwarding, and filters.

The new CAN FD standard (CAN with Flexible Data rate) is primarily characterized by higher bandwidth for data transfer. The maximum of 64 data bytes per CAN FD frame (instead of 8 so far) can be transmitted with bit rates up to 10 Mbit/s. CAN FD is downward-compatible to the CAN 2.0 A/B standard, thus CAN FD nodes can be used in existing CAN networks. However, in this case the CAN FD extensions are not applicable.

Features

Features of PCAN Ethernet Gateway FD DR


  • AM5716 Sitara with Arm® Cortex® M15 core
  • 2 GByte Flash and 1 GByte DDR3 RAM
  • Linux operating system (version 4.19)
  • Two High-speed CAN channels (ISO 11898-2)
  • Comply with CAN specifications 2.0 A/B and FD
  • Microchip MCP2558FD CAN transceiver
  • Connections for CAN, RS-232, and power supply via 4-pole screw-terminal strips (Phoenix)
  • LAN interface
  • Data transmission using TCP or UDP
  • RJ-45 connector with status LEDs
  • Monitoring and configuration of the devices via the web interface or JSON interface
  • Software update via the web interface
  • Reboot or reset of the device to a previous software version with a reset button
  • LEDs for device status and power supply
  • PCI Express Mini slot, USB port, and a RS-232 connector for future use
  • Fan for active cooling when a temperature limit is exceeded
