CAN Mini PCI Adapter with 1 or 2 Channels (PCAN-miniPCI): 1 Channel / 300V Isolated

$249.00

Regular price: $275.00

Leave a review

SKU: GC-CAN-MINI-PCI-1-ISO

MPN: IPEH-003046

Manufacturer: Peak System Technik

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the US

Call now for volume and discounted price match information.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

Select Channels / Isolation

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

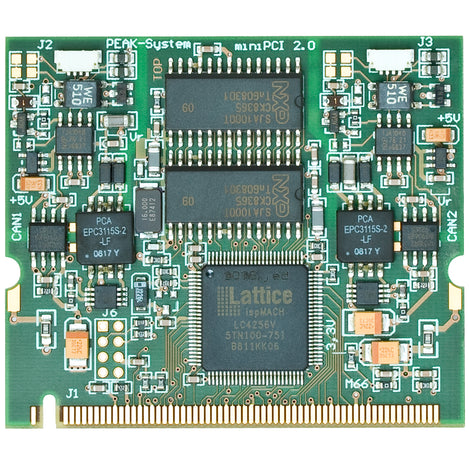

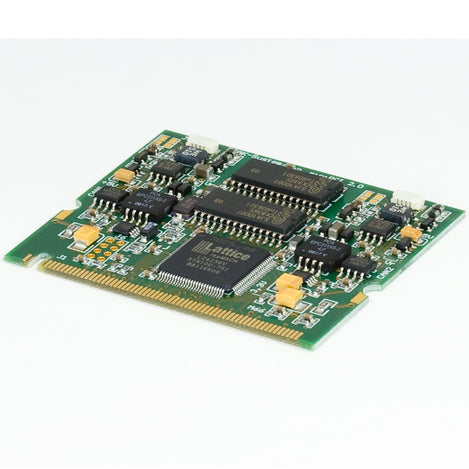

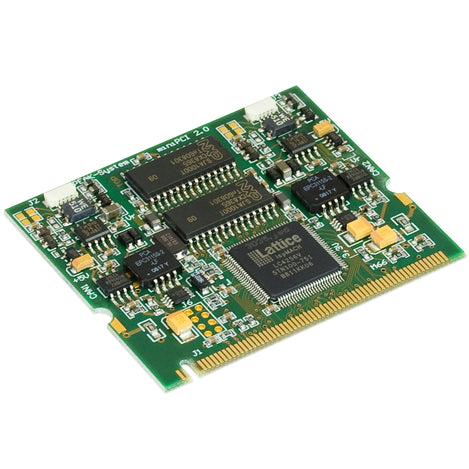

The CAN miniPCI cards enable PCs / Laptops with Mini PCI slots to interface with a CAN network(s).

The miniPCI card is available as a single or dual channel version with 300V optical isolation. There is a 2-channel version without isolation.

The package is also supplied with the CAN monitor PCAN-View for Windows® and the programming interface PCAN-Light.



Order Summary



SKU

Select Channels

Isolation/No Isolation

Manufacturer Part #

GC-CAN-MINI-PCI-1-ISO 1 Channel 300V Isolated IPEH-003046
GC-CAN-MINI-PCI-2-ISO 2 Channels 300V Isolated IPEH-003047
GC-CAN-MINI-PCI-2 2 Channels No Isolation IPEH-003045

Features

  • CAN miniPCI card
  • Connection cable inc. D-Sub plug
  • PCAN-View CAN monitor for Windows®
  • PCAN-Light programming interface consisting of interface DLLs, examples, and header files for all conventional programming languages
  • Device drivers for Windows® 10 & 11
  • Linux drivers available free of charge

Documents and Drivers

Documentation

PCAN-miniPCI User Manual

Downloads

Device Driver Setup - Windows® 11 & 10
Installation package with device drivers and tools for PC interfaces. Includes tools: PEAK-Settings, CAN monitor PCAN-View, LIN monitor PLIN-View Pro, Virtual PCAN-Gateway

Device Driver Setup - Outdated Windows Versions

PCAN-miniPCI Linux Drivers, PCAN-VIEW, PCAN-BASIC, PCAN-LIGHT programming APIs

PEAK-System PCAN Download Support

Specifications

Baud Rate

CAN: max. 1 Mbit/s

Certifications

CE, RoHS

Connector(s)

Length: 15 cm

Controller(s)

CAN: NXP / Philips SJA1000

Dimensions

59.6 x 51 x 4 mm

EMC Directive

  • EN 55024:2003-10
  • EN 55022:2007-04
  • EC directive 89/336/EEC

Interface(s)

  • PC: Mini PCI bus type 3A (124-pin)
  • CAN: ISO 11898-2, complies with CiA-recommendation DS 102

Isolation

300 VDC (optional)

MPN

IPEH-003045, IPEH-003046, IPEH-003047

Pinout

C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3)

Power Consumption

  • 3.3V max. 20mA, 5V below
  • 1 channel isolated max. 60 mA
  • 2 channel isolated max. 100 mA

Software

  • Driver: Supports Windows 11 & 10
  • Tools: PCAN-View for Windows®

Specifications

CAN: 2.0A (Standard format) and 2.0B (extended format)

Storage Specifications

Temperature: -40°C to +100°C (-40°F to +212°F)

Temperature Range

  • Operating: -20°C to +70°C (-4°F to +158°F)
  • Humidity: 15% to 90% non-condensing

Transceiver

CAN: NXP / Philips PCA82C251
