PCAN-PCI/104-Express Card with 1 or 2 Channels: 1 Channel / 500V Isolated

$355.00

Leave a review

SKU: GC-CAN-PC104-PCI-E-1-ISO

MPN: IPEH-003056

Manufacturer: Peak System Technik

Delivery: Ships within 7-14 business days
Qualifies for Free shipping
Best price guaranteed!* Learn more.
Call now for volume and discounted price match information.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

Select Channels / Isolation

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

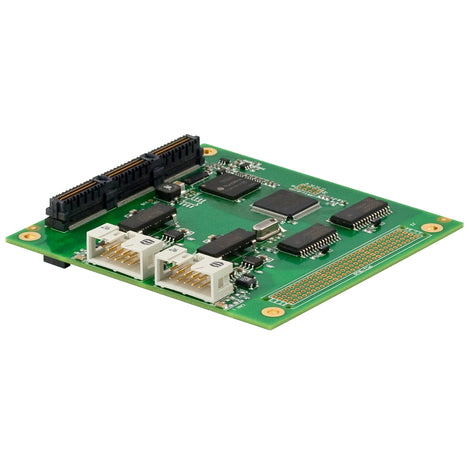

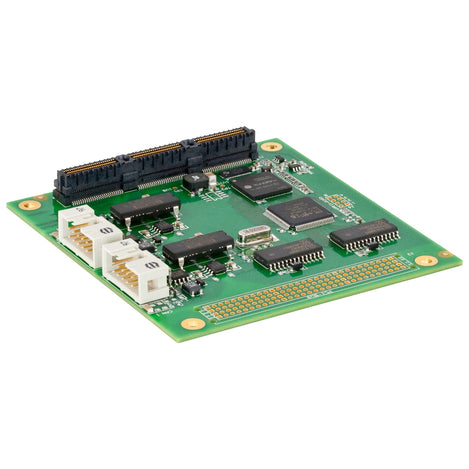

The PCAN-PCI/104-Express card enables PCs with PCI/104-Express slots to interface with CAN network(s). A 9-pin D-Sub connector is used to connect to the CAN bus. Up to 4 cards can be stacked together.

The PCAN-PCI/104-Express card is available as a 1 or 2 channel card with 500V galvanic isolation between the computer and CAN bus, as well as a 1 channel with no isolation.

Order Summary



SKU

Select Channels/Isolation

Manufacturer Part # (MPN)
GC-CAN-PC104-PCI-E-1-ISO 1 Channel / 500V Isolated IPEH-003056
GC-CAN-PC104-PCI-E-2-ISO 2 Channels / 500V Isolated IPEH-003057
GC-CAN-PC104-PCI-E-1 1 Channel / No Isolation IPEH-003054

Features

  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
  • FPGA implementation of the CAN controller (SJA1000 compatible)
  • PCIe/104, PCI Express x1 (1 Lane)
  • Compatible with Type1 and Type 2 hosts
  • Includes metal brackets with DB9 connectors and ribbon cable

Documents and Drivers

Documentation

PCAN-PCI/104-Express User Manual

Downloads

Device Driver Setup - Windows® 11 & 10
Installation package with device drivers and tools for PC interfaces. Includes tools: PEAK-Settings, CAN monitor PCAN-View, LIN monitor PLIN-View Pro, Virtual PCAN-Gateway

Device Driver Setup - Outdated Windows Versions

Device driver for Linux

PEAK-System PCAN Download Support

Specifications

Baud Rate

CAN: max. 1 Mbit/s

Certifications

CE, RoHS

Channels

1 or 2 High-Speed CAN

Connector(s)

  • CAN: D-Sub slot bracket, 9-pin (CiA® 303-1)
  • PC/104 Stack: PCIe/104, PCI Express x1 (1 Lane)

Controller(s)

CAN: FPGA implementation (SJA1000 compatible)

Dimensions

90.2 x 95.9 mm

EMC Directive

  • Directive 2014/30/EU
  • DIN EN 55024:2016-05
  • DIN EN 55032:2016-02

Isolation

Isolation options have galvanic 500 VDC

MPN

IPEH-003054, IPEH-003056, IPEH-003057

Pinout

CAN_H = 7, CAN_L = 2, CAN_GND = 3, CAN_GND = 6

Power Consumption

  • 1 Channel: 360 mA
  • 2 Channel: 420 mA

Product Weight

  • 1 Channel: 44 g
  • 2 Channel: 50 g

ROHS Directive

  • Directive 2011/65/EU
  • DIN EN 50581 VDE 0042-12:2013-02

Software

Supports Windows 11 & 10

Specifications

  • ISO 11898-2, High-speed CAN
  • 2.0A (standard format) and 2.0B (extended format)

Storage Specifications

Temperature: -40 - 125 °C (-40 - 257 °F)

Temperature Range

  • Operating: -40 to 85 °C (-40 to 185 °F)
  • Humidity: 15% to 90% (non-condensing)

Transceiver

CAN: NXP PCA82C251
