CAN PC104 Adapter with 1 or 2 Channels (PCAN-PC / 104)

$265.00

Leave a review

SKU: GC-CAN-PC104-2-ISO

MPN: IPEH-002057

Manufacturer: Peak System Technik

Delivery: Ships within 7-14 business days
Qualifies for Free shipping
Best price guaranteed!* Learn more.
Call now for volume and discounted price match information.
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

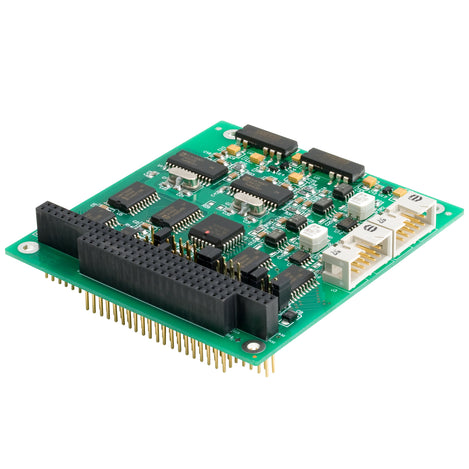

The CAN PC/104 card is a high-performance solution for connecting one or two High-Speed CAN networks with a PC/104 Bus system. This card is equipped with the SJA1000 CAN controller and the 82C251 driver. Up to four cards can be stacked within one system. The position of the card in the stack is set with jumpers.

Connection to the CAN bus is via a 10-pin upright connector. A cable from the 10 pin connector to a slot bracket with a 9-pin D-SUB connector (pin assignment in accordance with standard recommendation CiA DS 102-1) is provided. The opto-decoupled version (optional) guarantees galvanic isolation of up to 500 volts between the PC/104 and the CAN using an integrated DC/DC converter and optocoupler.

The PCAN-PC/104 card includes software for Windows® and sample source-code for do-it-yourself programming. Driver sources for LINUX are also available.

Order Summary



SKU

Select Channels

Isolation/No isolation

Manufacturer Part # (MPN)
GC-CAN-PC104-1-ISO  1 Channel 500V Isolated

IPEH-02056 Discontinued
GC-CAN-PC104-2 2 Channels No Isolation

IPEH-002055 Discontinued
GC-CAN-PC104-2-ISO 2 Channels 500V Isolated IPEH-002057

Features

  • Baud rate settings up to 1 Mbit/s
  • 1 or 2 Channel (optional) versions available
  • 500V Opto Isolation (optional) 2 Channel only
  • Up to four cards can be used in one system
  • Electrical adjustment to slot position via jumper
  • Philips CAN controller SJA10000 with 16 MHz frequency
  • CAN transceiver 82C251
  • Hardware reset possible via software
  • CAN bus connection in accordance with CiA DS 102-1

Documents and Drivers

Documentation

PCAN-PC/104 User Manual

Downloads

PCAN-PC/104 Windows Drivers, PCAN-VIEW, PCAN-BASIC DLL/APIs

PCAN-PC/104 Linux drivers

PEAK-System PCAN Download Support

Specifications

Baud Rate

CAN: max. 1 Mbit/s

Certifications

CE, RoHS

Connector(s)

10-pin Upright Connector

Controller(s)

CAN: max. 2 Philips SJA1000T

Dimensions

96 x 91 x 24 mm

EMC Directive

  • EN 50081-1:1992
  • EN 50082-1:1997
  • EN 50081-2.1993
  • EN 61000-6-2:1999
  • EC directive 89/336/EEC

Interface(s)

  • PC: PC/104 ISA bus with 8 MHz clock rate, 16 bit bus width
  • CAN: ISO 11898-2, complies with CiA-recommendation DS 102

IO and IRQ

0x200-0x3ff IRQ3-IRQ5, IRQ7, IRQ10-IRQ12, IRQ15

Isolation

500 VDC available (optional) for 2 channel

MPN

IPEH-002055, IPEH-002056, IPEH-002057

Pinout

C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3)

Power Consumption

  • 2 channel max 170 mA
  • 1 channel isolated max 210 mA
  • 2 channel isolated max 270 mA

Product Weight

63, 59, 65 g

Software

  • Driver: Windows® 7, Vista, XP; Linux
  • Tools: PCAN-View for Windows®

Specifications

CAN: 2.0A (Standard format) and 2.0B (extended format)

Storage Specifications

Temperature: -40°C to +125°C (-40°F to +257°F)

Temperature Range

  • Operating: -40°C to +85°C (-40°F to +185°F)
  • Humidity: 15% to 90% (non-condensing)

Transceiver

CAN: max. 2 Philips PCA82C251
