DISCONTINUED
Comparable product: PCI Interface for Profibus-DP + Master License, Call to Order or for information

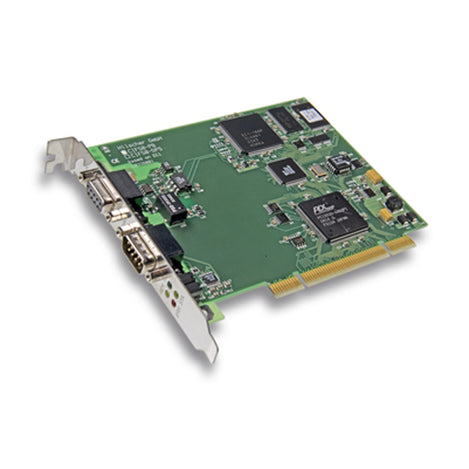

CIF50-PB PCI PROFIBUS Master

Leave a review

SKU: GC-CIF50-PB

MPN: CIF50-PB

Manufacturer: Hilscher

Product Information

Product Description

The Hilscher CIF family of PC cards are all compatible with each other and use a common API (application interface) and software configuration utility (SYCON) which is included with the card.

A CD with SYCON, Window 95/98/2000/NT/XP and OPC drivers and complete card documentation and examples are included with the card.

Documents and Drivers

Documentation

CIF50-PB Datasheet

Specifications

Dimensions

134 x 107 x 20 mm

Fieldbus Parameters

PROFIBUS DP Master: 125 Slaves, 7K byte I/O data, DPV1 Extensions, Class 2 services, MPI functions

Immunity

EN50082-2

Interface(s)

  • RS232C
  • Non-isolated diagnostic po

MPN

CIF50-PB

Temperature Range

0°C to +50°C (32°F to +122°F)

Voltage

Operating voltage: 5V / max. 500mA - 650mA. +12V / max. 50mA, -12V / max. 50mA
