ComBricks Head Station Type 1B

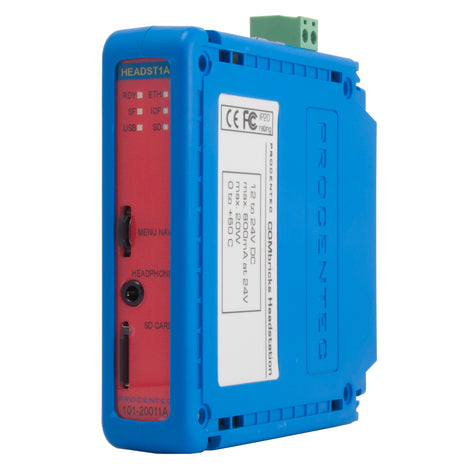

COMbricks Head Station Type 1B

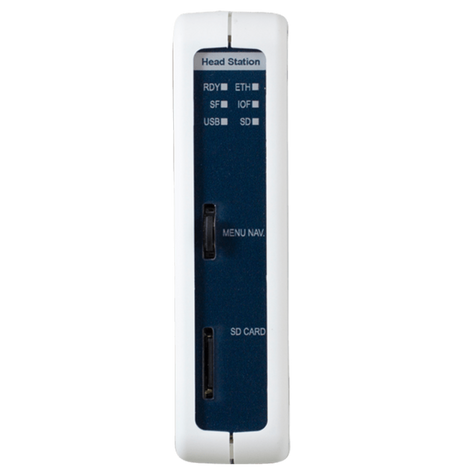

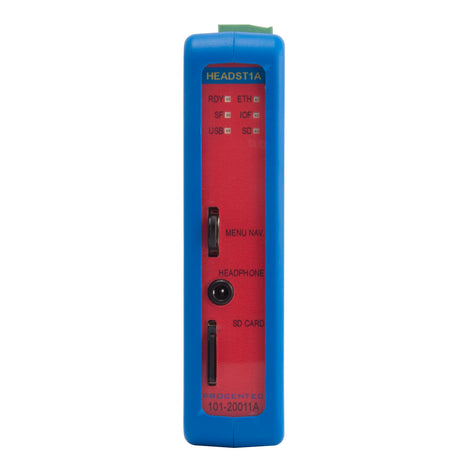

COMbricks Head Station Type 1B Front

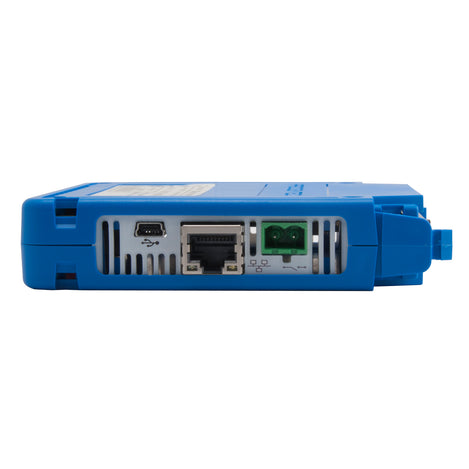

COMbricks Head Station Type 1B Network

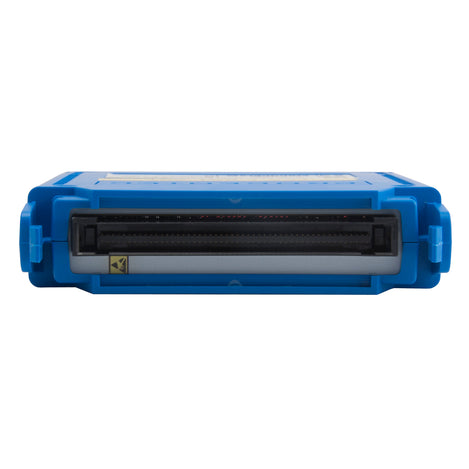

COMbricks Head Station Type 1B Backplane connection
COMbricks Head Station Type 1B Side 1

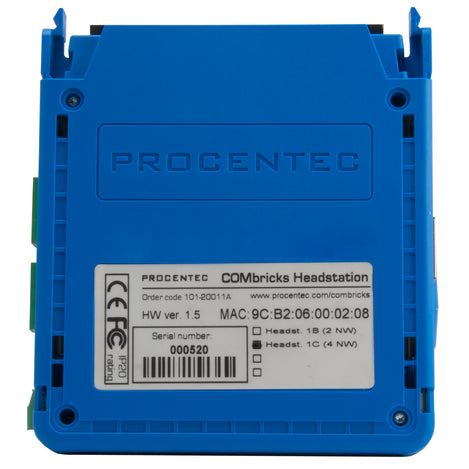

COMbricks Head Station Type 1B Side 2
ComBricks Head Station Type 1B
Product Images
ComBricks Head Station Type 1B
$2,789.00
SKU: GC-PB-CB-HS-1B
MPN: 101-20011B
Manufacturer: Anybus Diagnostics
Stock Status: In stock
We Have You Covered
Product Information
Product Description
The ComBricks Head Station Type 1B consists of a Type 1B Head Station and an expandable backplane unit. The Type 1B version of the Head Station includes ProfiTrace OE and allows you to monitor 1 PROFIBUS Network (note: the Type 1C Head Station is required to monitor 4 networks). You can upgrade the firmware license in the Type 1B Head Station to make it a Type 1C station at a later date, with no change to the hardware.
The Type 1B Head Station allows you to monitor one (1) PROFIBUS network remotely. The Ethernet port on the Head Station is used to connect the unit to the network.
All ComBricks systems consist of a Head Station, such as this Head Station Type 1B, plus up to 10 repeater modules. The repeater modules come with either one or two channels (PROFIBUS segments) each, so it is possible to build a backbone of up to 20 segments with a single ComBricks system.
ProfiTrace OE allows you to monitor the installation remotely over the network using just a web browser. It is now possible to check the health of your installation from anywhere in the world using ProfiTrace OE, thus allowing you to get maintenance personnel on the scene more quickly, and to diagnose and correct the problem fast.
Features
ProfiTrace OE - Remote monitoring in a web browser
A powerful feature of COMbricks is the ability to permanently monitor a PROFIBUS network (up to four networks may be simultaneously monitored with the 1C Headstation). Remote PROFIBUS Networks and a shortage of (qualified) technical staff, are causing significant network management problems. COMbricks offers a solution allowing staff to remotely monitor PROFIBUS installations over the Internet and by providing email alerts to key personnel.
COMbricks does not require any PC software. You only need a standard web browser to view network information in an understandable format (ProfiTrace OE). Moreover a constant connection with a PC to the COMbricks is NOT necessary. The information will be there waiting whenever you pull up the COMbricks ProfiTrace OE web-pages in your browser.
The monitoring and logging is performed by the repeater modules which are inserted in the backplane. COMbricks is the first system that has integrated the busmonitor into actual network components that serve another purpose (repeaters). Deploying COMbricks repeaters for regular automation means an automatic availability of ProfiTrace OE.
E-mail messages provide real-time alerts should malfunctions be detected in the PROFIBUS installation. These can be easily set up through ProfiTrace OE's configuration pages.
A brand new functionality within ProfiTrace OE is the device location detection. It gives a detailed overview of on which repeater segment the devices are installed.
Documents and Drivers
Documentation
ComBricks Head Station Type 1B Datasheet
Combricks User Manual
ComBricks Brochure
Downloads
ComBricks DWG Drawing
Webinar
How To Build A Better PROFIBUS Network Using ComBricks (1 hour)
Specifications
Cable Length
Ethernet: Max 100 m
Compatible Backplane Units
101-200023, 101-200012
Connector(s)
RJ45 Ethernet Connector
Current
- Consumption: 800 mA (fully loaded)
- Available to Backplane Modules: 2.5 A
Interface(s)
Link Speed: 10/100 Mbps
Internal Webserver
20 Simultaneous web server clients
Memory
SD Card: SD & SDHC (Max 32GB, 2GB included)
MPN
101-20011B
Network
Profibus: ProfiTrace OE for one PROFIBUS Network (can be expanded to 4 with firmware license upgrade)
Power Supply
- Redundant Power Supply
- Power supply Wire Diameter: <2.5 mm
Protocols
HTTP, FTP, SMTP, TELNET, DHCP
Security/Protection
Reverse Polarity Protection
