ComBricks Power Module

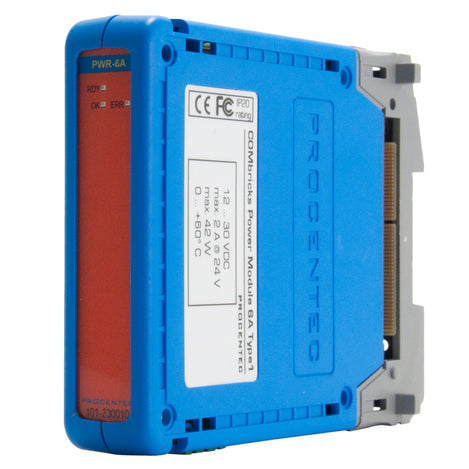

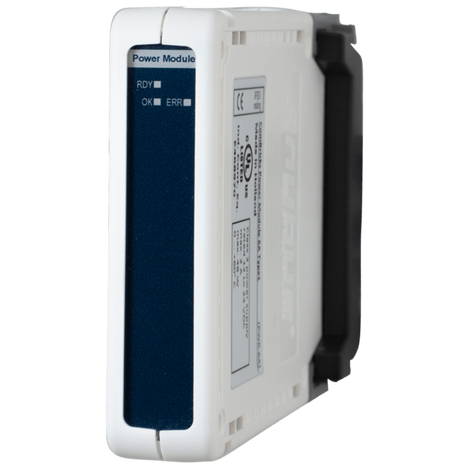

ComBricks Power Module side view, Anybus Diagnostics, MPN: 101-230010

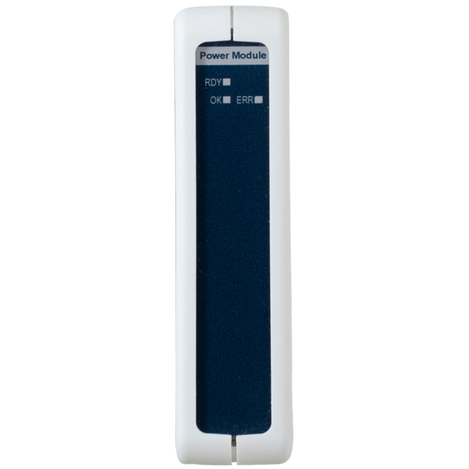

ComBricks Power Module front view, Anybus Diagnostics, MPN: 101-230010
COMbricks Power Module

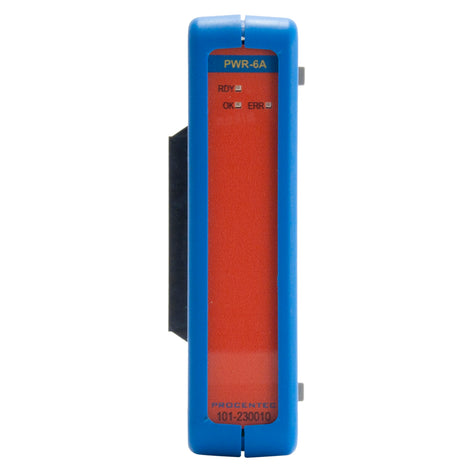

COMbricks Power Module - Front

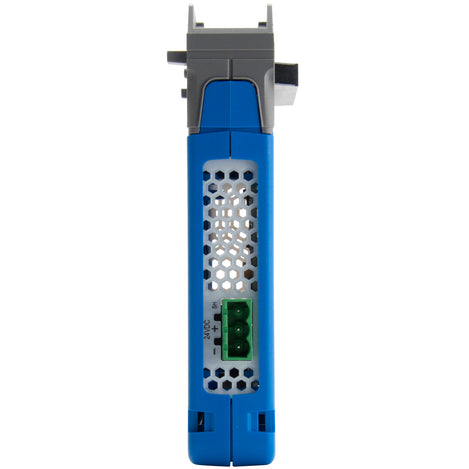

COMbricks Power Module - Bottom

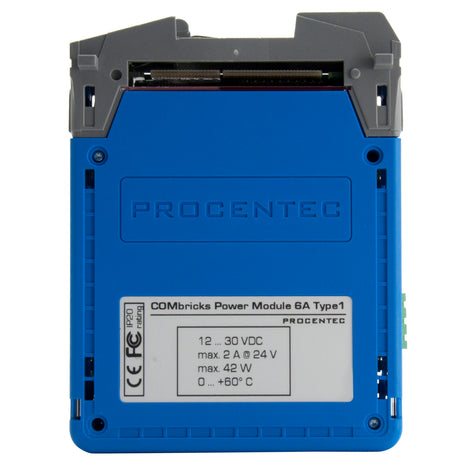

COMbricks Power Module - Side 1

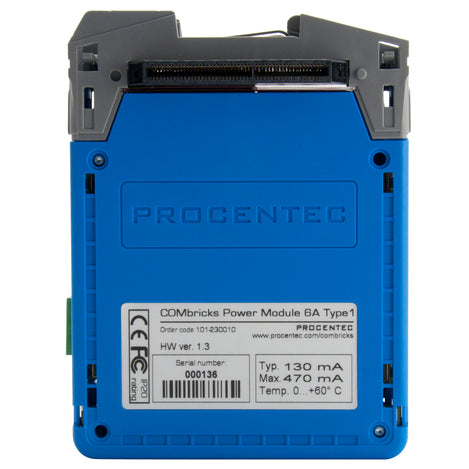

COMbricks Power Module - Side 2
ComBricks Power Module
Product Images
ComBricks Power Module
$487.00
SKU: GC-PB-CB-PWR-6A
MPN: 101-230010
Manufacturer: Anybus Diagnostics
We Have You Covered
Product Information
Product Description
The ComBricks 6A Power Module provides power to the ComBricks backplane when the total power of the inserted modules exceeds the capacity of the power supplied by the ComBricks Headstation. To determine if a ComBricks lineup needs the 6A Power Module, examine the MAX current consumption of each inserted module (excluding the headstation). If the total exceeds 2,500mA, then a Power Module is recommended. The MAX Power consumption can be found on the side label of each module, and also in the Module Datasheet, which is part of the ComBricks User Manual.
If a 6A Power Module is used, then a power supply should NOT be attached to the Headstation as well. The 6A Power Module provides enough power for the whole ComBricks lineup. If redundant power supplies are desired, then two 6A Power Modules may be used.
For convenience, here is a list showing the MAX power consumption for some of the most popular ComBricks Modules:
|
Module |
MAX Power |
|
2 Channel Repeater Module |
500mA |
|
1 Channel Repeater Module |
500mA |
|
1 Channel Repeater Module with SCOPE |
600mA |
|
PROFIBUS PA Module |
550mA |
|
2 Channel Fiber Optic Module |
510mA |
|
Fiber Optic Ring Module – Single Mode |
600mA |
|
Fiber Optic Ring Module – Multi-Mode |
600mA |
Features
- COMbricks can have a total of 32 modules – Power modules included
- Current is accumulated
- Power modules can also be used as redundant power connection points
- Terminal Blocks for easy connection of power supply wires.
- 1 Year Warranty
Documents and Drivers
Documentation
ComBricks Power Module Datasheet
ComBricks User Manual
Downloads
ComBricks DWG Drawing
Specifications
Backplane
Support for up to 10 High Speed Modules, Up to 32 Modules Total, 6A Power
Dimensions
140 x 110 x 25 mm
Internal Web Server
Requires Head Station firmware V1.265 or later
MPN
101-230010
Power Consumption
+/- 130mA
Power Supply
- Operating voltage: 12 - 30 VDC
- Power consumption: max 2 A @ 24 VDC (42 W)
- Reverse Polarity protection
- Redundant power supply connectionsa
Product Weight
125g
Temperature Range
0°C to +60°C (32°F to +140°F)
