ComBricks PROFIBUS DP/Fiber Coupler: No Monitoring

$3,838.00

Leave a review

SKU: GC-PB-CB-DP-FIBER

MPN: GC-PB-CB-DP-FIBER

Manufacturer: Grid Connect Inc.

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the US

Monitoring

We Have You Covered

Price Match delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The ComBricks PROFIBUS DP/Fiber Coupler can be used to create one or two fiber optic links of up to 3 km each to extend a PROFIBUS DP network. Fiber links are also useful in installations with grounding problems or are otherwise in need of galvanic isolation. With the Monitoring Option, the network can also be monitored using ProfiTrace OE from a web-browser.

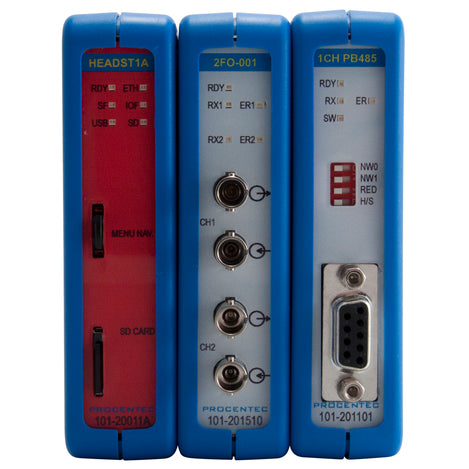

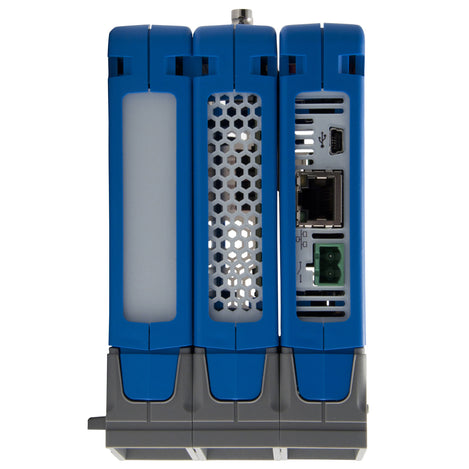

The coupler comes complete with a ComBricks Head Station (type 1A or type 1C - with monitoring), a PROFIBUS DP 1-Channel Repeater Module, and a 2 Channel Fiber Optic Module.

With the monitoring option, you get ProfiTrace OE and the PROFIBUS live list, statistics and email/SNMP event notification. In addition, there is one relay on the Head Station that can be used to turn on a light tower or a back-up system, etc. in response to network events such as station lost, syncs,etc. If more relays are needed, just snap in a 4 channel relay module!

Snap in additional Fiber Optic Modules to create other topologies including redundant point-to-point, bus, star and hub!

Learn more about the ComBricks product family.

Order Summary



SKU

Monitoring

Manufacturer Part # (MPN)
GC-PB-CB-DP-FIBER No Monitoring GC-PB-CB-DP-FIBER
GC-PB-CB-DP-FIBER-MON With Monitoring GC-PB-CB-DP-FIBER-MON

Features

  • Comes complete with a Type 1A or 1C (with monitoring) Head Station, a one 1-channel PROFIBUS DP module (not pictured) and a 2-channel Fiber Optic Module
  • Automatically detects the baud rate of the network.
  • Unlimited Cascading
  • 3 km fiber length (multimode 850nm)
  • DIN-rail mount
  • 1 year warranty

Documents and Drivers

Documentation

ComBricks Head Station Type 1C Datasheet

ComBricks 1 Channel Repeater Module Datasheet

ComBricks 2 Channel PROFIBUS Fiber Optic Module Datasheet

ComBricks User Manual

Webinar

How To Build A Better PROFIBUS Network Using ComBricks (1 hour)

Downloads

ComBricks DWG Drawing

Specifications

Cable Length

Fiber: 3 km, DP Module: 1200 m (depends on baud rate)

Cascading Depth

No limit

Channels

  • 31 devices per channel
  • 2 Fiber channels
  • 1 DP Network per channel

Connector(s)

  • Removable screw terminals
  • 1 DB9 connector
  • uSD card holder for 32 GB (SD and SDHC)
  • USB connector for firmware updates
  • 4 ST/BFOC connectors

Dimensions

  • Modules: 140 x 110 x 25 mm
  • PROFIBUS Cable Diameter (screw terminals): <1.5 mm2

Indicators LED

Error, Rx data, Termination ON

Interface(s)

  • Point-to-point, star and bus topologies
  • Multimode cable G62.5 / 125 (OM1) - 850 nm
  • Compatible with most other vendors in 3rd party compatibility mode
  • Fiber redundancy (switchable)

Internal Web Server

Web server with ProfiTrace OE (Optional)

  • Status of all modules
  • Live List
  • Statistics
  • Message recording
  • Email and log on PROFIBUS events
  • System log

MPN

GC-PB-CB-DP-FIBER

Network

PROFIBUS: 4 (set by dip-switches or webserver)

Power Consumption

  • Fiber Module: 400 mA
  • DP Module: 200 mA

Power Supply

Redundant, Operating Voltage - 11..26 VDC, Backplane Current - 2.5 A

Product Weight

1.5000

Protocols

  • Transparent for all PROFIBUS protocols
  • No address required
  • FIber Module: 51 TBit delay time per module
  • DP Module: 2 bits delay time
  • HTTP, FTP, SMTP, TELNET, SNMP, CommDTM

Software

Requires Head Station firmware: V1.264 and later

Temperature Range

0°C to +60°C (32°F to +140°F)

Termination

Integrated, switchable

Transmission Speed

  • 9.6 kbps up to 12 Mbps (auto detect)
  • Ethernet: 10/100 Mbps link speed
