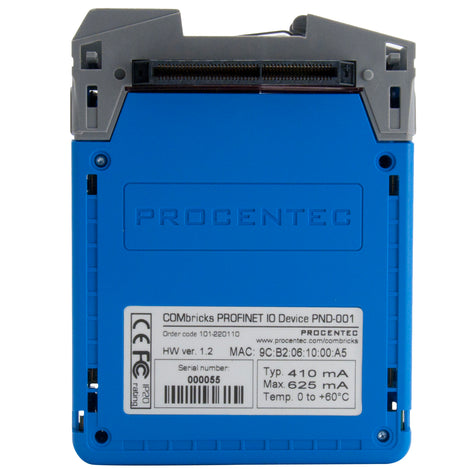

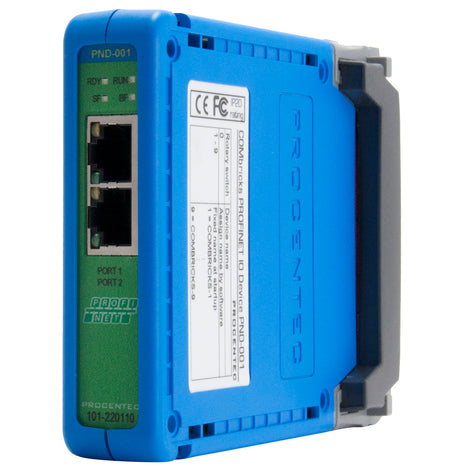

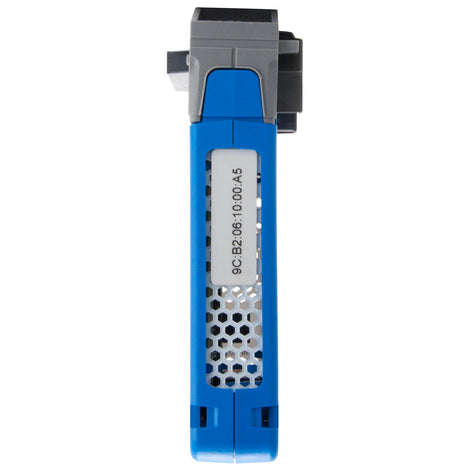

ComBricks PROFINET Module

Leave a review

SKU: GC-PB-CB-PN

MPN: 101-220110

Manufacturer: Procentec

We Have You Covered

Price Match delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

The ComBricks PROFINET Module can be used to build a PROFINET/PROFINET gateway (or coupler), or to build a remote PROFINET Remote I/O block. It can also be used as a combination gateway and Remote I/O.

When used as a gateway, two or more PROFINET modules are used. It works in the same way as a PROFIBUS DP/DP Coupler, in that it allows two PLC masters to exchange data through a dual-port slave device. The gateway or coupler appears as a slave to both of the PROFINET PLC masters. What’s even more interesting is that you can keep adding modules and exchange data between two, three, or more PLCs – all the way up to ten modules can be used in gateway mode!

When used to create remote PROFINET I/O systems, the PROFINET module is combined the four-channel relay or the eight-digital output modules. In this mode they are slave devices and are programmed into the PLC just like any other PROFINET device. When using the PLC Configuration tool, such as Step7, the ComBricks PROFINET Modules’ GSD file is used, and the respective I/O modules are selected in the configuration tool. Once configured the PLC can map the I/O’s to its applications and use the PROFINET module for remote I/O. This application is ideal for coupling small machines into your installation.

Applications areas include:

  • Coupling small machines
  • Linking networks with different controllers
  • Coupling PROFIsafe networks to regular networks
  • Migrating from old control systems to new control systems
  • Quasi master-master communication

Features

  • PN/PN Gateways and PN Remote I/O can be combined
  • Works simultaneously with PROFIBUS modules when combined in the same system

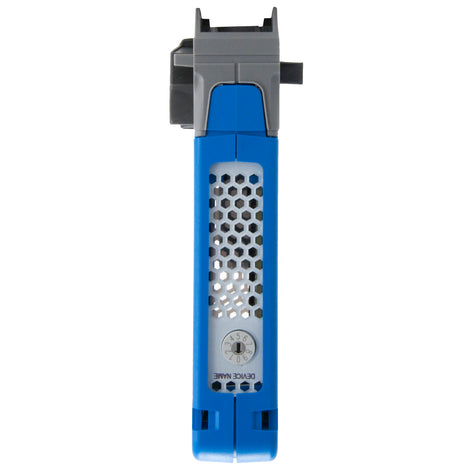

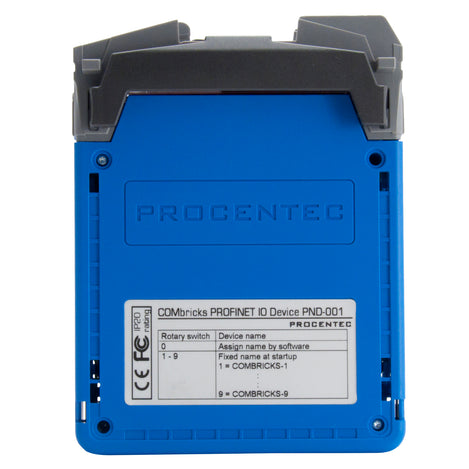

  • Rotary switch for Device Name
  • DIN-rail mount
  • Back-plane extender included
  • 1 Year Warranty

Documents and Drivers

Documentation

ComBricks PROFINET Module Product Card

ComBricks User Manual

Downloads

ComBricks DWG Drawing

Specifications

Backplane

Not connected to the PB networks, Support for up to 10 High Speed Modules

Compatible Backplane Units

101-200011, 101-200023, 101-200012

Dimensions

140 x 110 x 25 mm

Interface(s)

PROFINET:

  • Version 2.25 - Conformance class B
  • Certification number: ZZ10500
  • Ident Number: 0x4000 - 0x0001
  • 1 ms Cycletime at 128 I/O bytes
  • 1024 Bytes input and 1024 bytes output (204 Bytes per module)
  • DeviceName by DCP or hardware rotary switch


Connectors and Cabling:

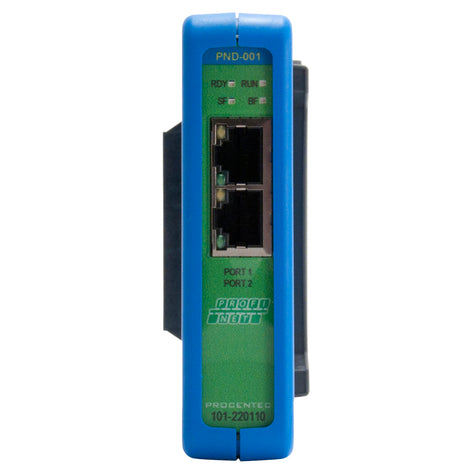

  • 2 Ports switch (RJ 45)
  • 100 m cable length per switch port
  • Switch delay time: ?? us
  • Auto detect, Auto cross-over, Auto polarity

MPN

101-220110

Power Consumption

410 mA current consumption

Power Supply

Provided through the backplane

Product Weight

111 g

Protocols

RT_CLASS_1, RTA, UDP, DCP, ARP, LLDP, SNMP (MIB II)

Temperature Range

0°C to +60°C (32°F to +140°F)

Transmission Speed

10/100 Mbps (100BaseTX, 10BaseT)
